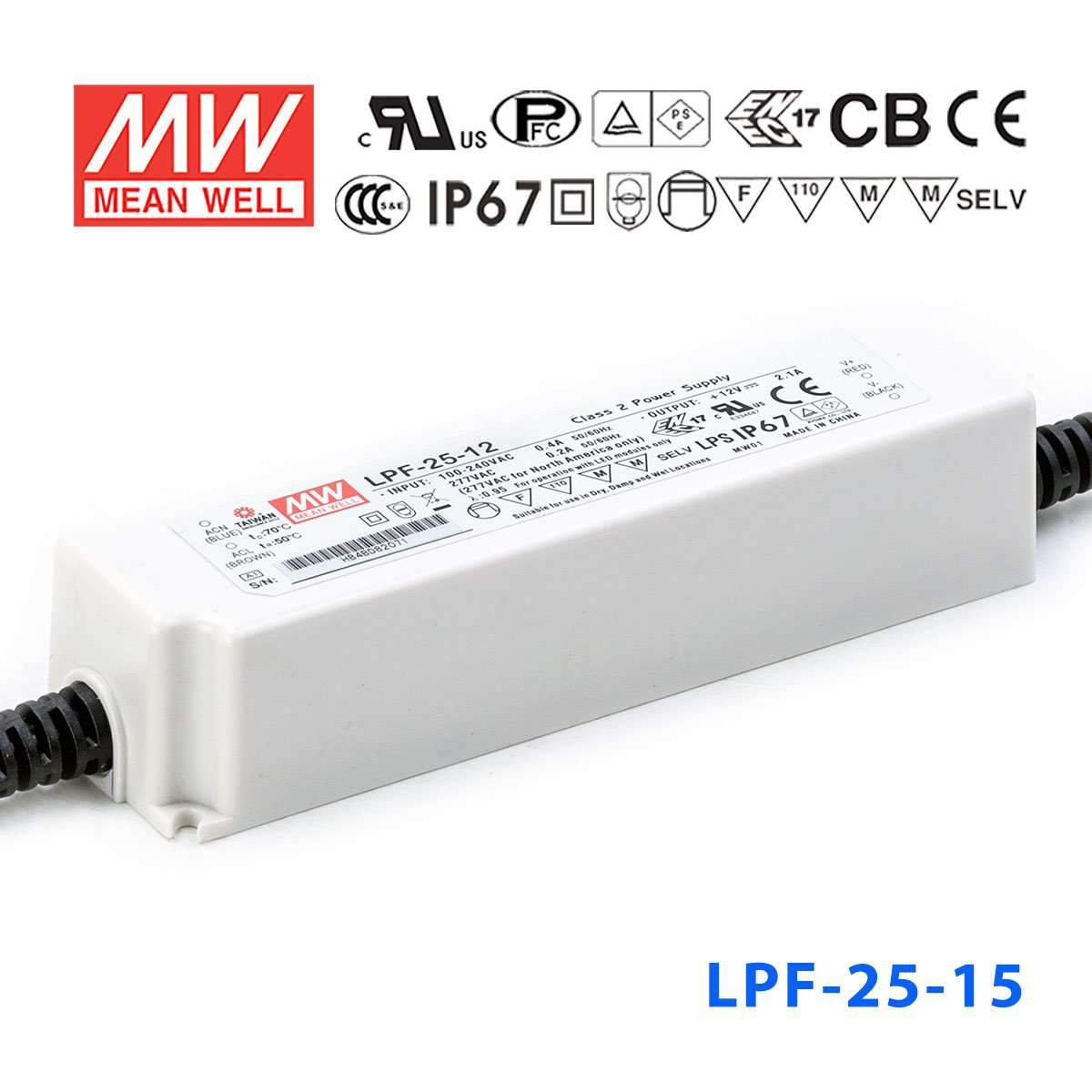

Mean Well LPF-25-15 Power Supply 25W 15V 1.6A
The LPF-25 is a 25.05W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -35~+70°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 15V
- ✓ Rated output current: 1.6A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -35~+70°C
- ✓ Safety certifications: CB, CE, EAC, ENEC, PSE, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.05 Watt
-
Output Voltage15 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25-15 for a 15V LED strip lighting project?
Yes, if the lighting product is designed for 15V and the total load stays within 25.05W. This model delivers 15V at 1.6A, which makes it suitable for lower-power 15V strip or linear lighting sections. Verify the full load before choosing it.
Is the LPF-25-15 suitable for 15V signage lighting?
It can be used for 15V signage or display lighting where the total demand does not exceed 25.05W. The IP67 waterproof construction supports use in exposed sign environments. Check that the lighting modules are rated for 15V and remain within 1.6A output current.
Can this driver power a compact 15V accent lighting run?
Yes, for a compact 15V accent lighting run that stays inside the driver’s 25.05W limit. With 15V output and 1.6A current, it is better suited to shorter or moderate-load sections than larger systems. Confirm the fixture or strip matches the electrical rating.
Can the LPF-25-15 be used in wet or outdoor conditions?
Yes, it carries an IP67 waterproof rating for wet and dusty environments. It is also rated for operation from -35°C to +70°C, which supports a broad range of indoor and outdoor conditions. Use it only where the connected lighting components are also suitable for that environment.
How much 15V LED strip can the LPF-25-15 run?
Use the 25.05W maximum to estimate strip length. Length = 25.05W divided by the strip’s rated watts per meter, so a 5.01W/m strip would be about 5 meters. Check your strip rated power per meter before final sizing.
What are the 15V alternatives in the LPF family around this output level?
For 15V models in this series, the standard options are LPF-16-15 at 16.05W and 1.07A, LPF-25-15 at 25.05W and 1.6A, LPF-40-15 at 40.08W and 2.67A, LPF-60-15 at 60W and 4A, and LPF-90-15 at 75W and 5A. The dimmable versions mirror those same 15V ratings as LPF-16D-15, LPF-25D-15, LPF-40D-15, LPF-60D-15, and LPF-90D-15.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-25 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-25-12 Power Supply 25W 12V 2.1A | 25.2W | 12V | 2.1A | IP67 | $20.66 | View |
