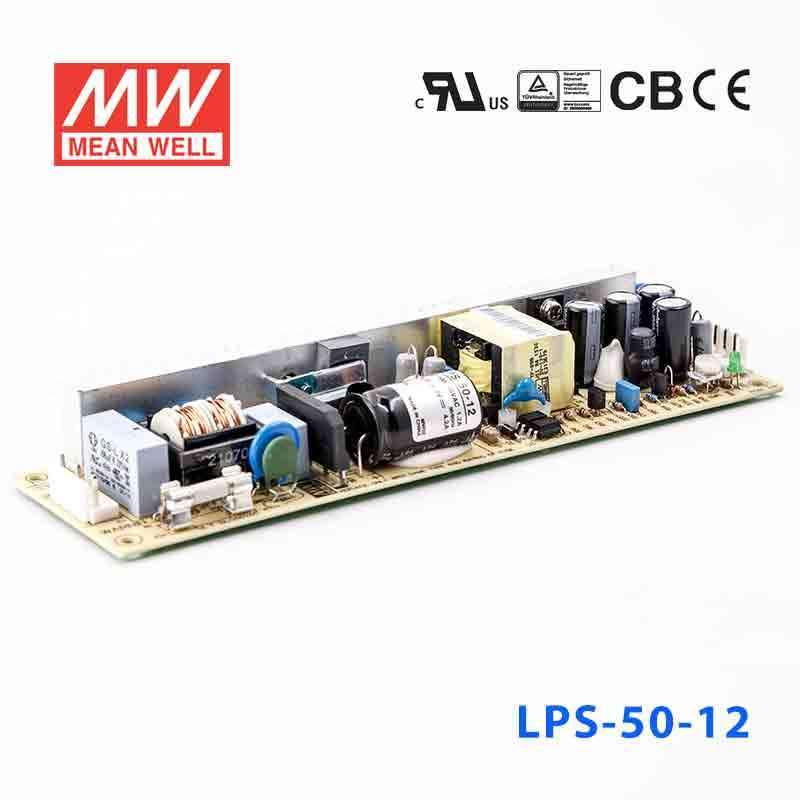

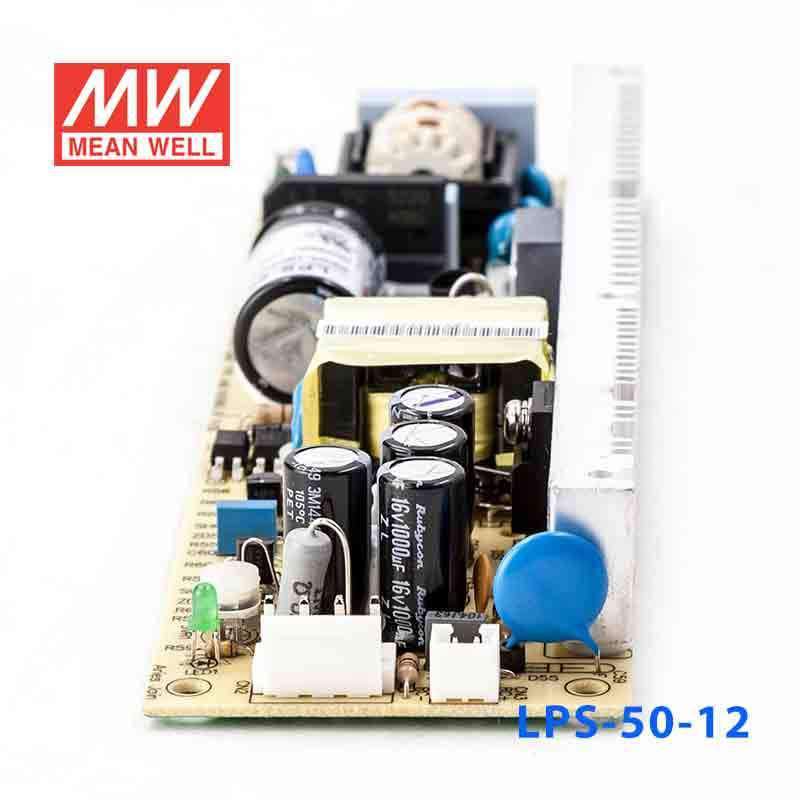

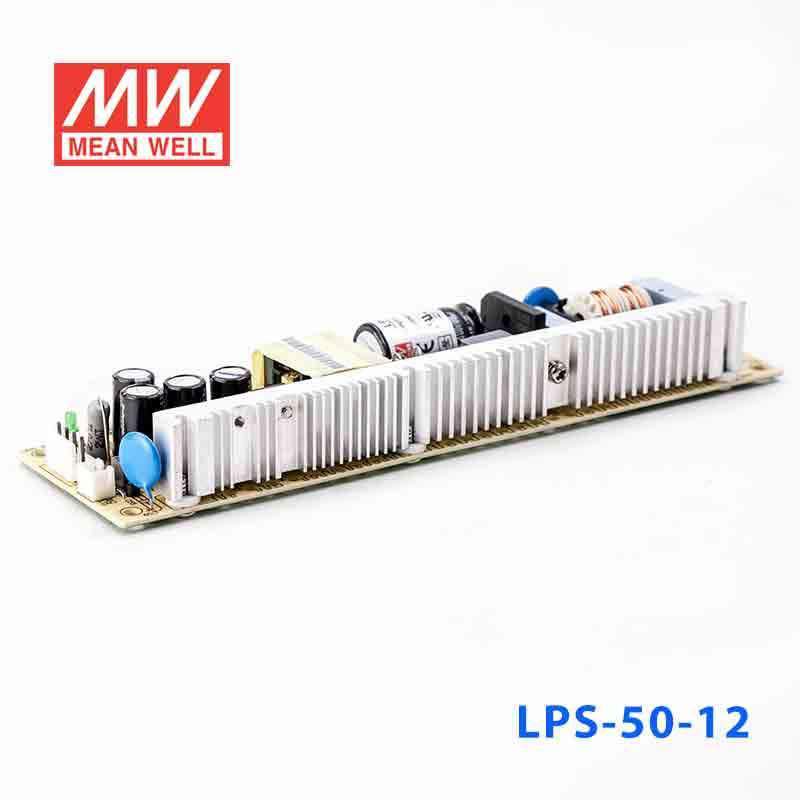

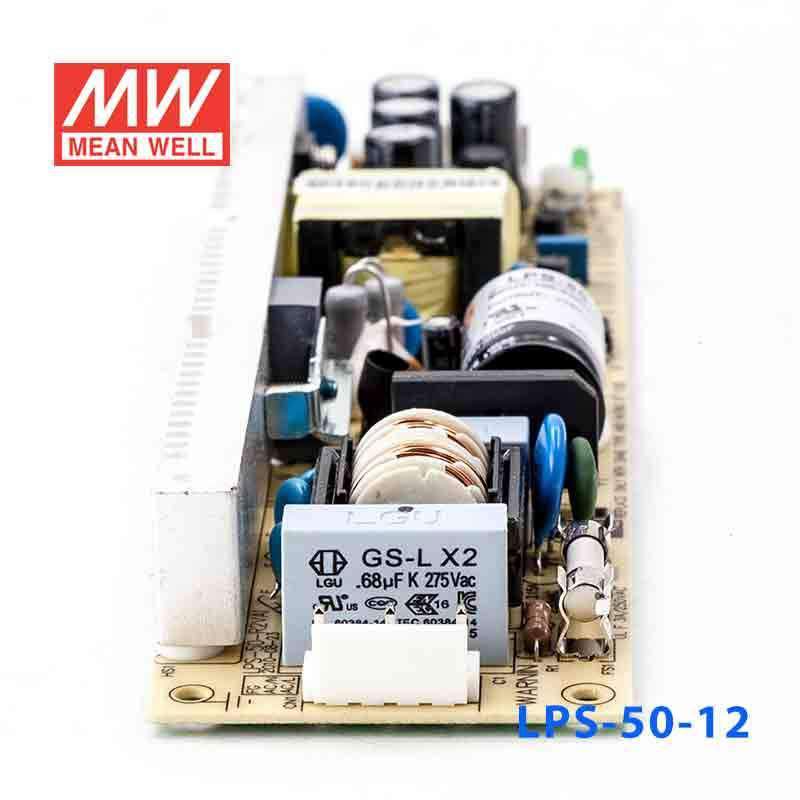

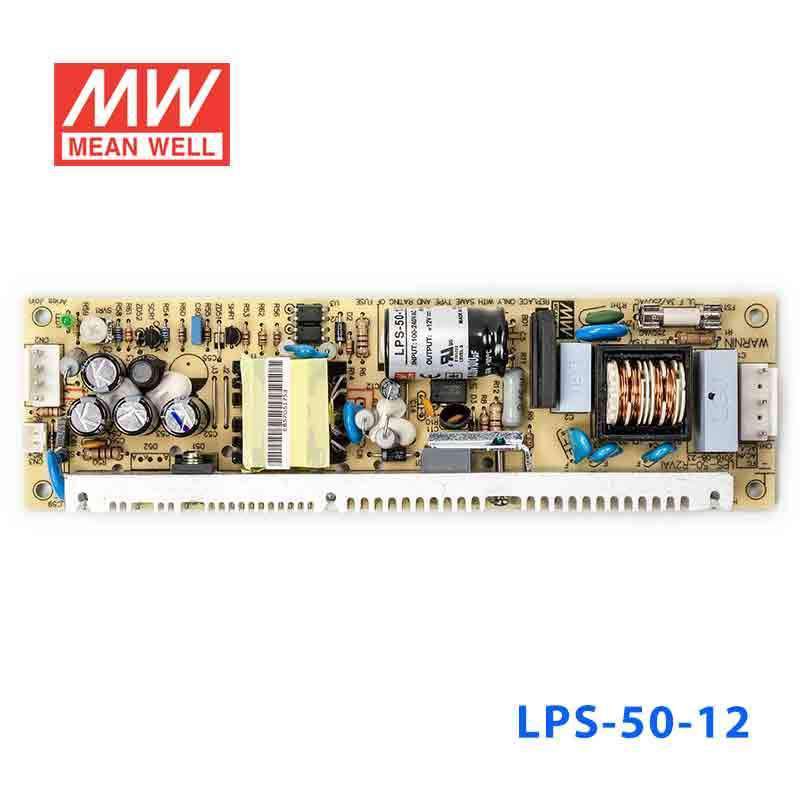

Mean Well LPS-50-12 Power Supply 50W 12V
The LPS-50 is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating50.4 Watt
-
Output Voltage12 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length7.68 in
-
Width2.17 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LPS-50-12 for a 12V industrial controller or automation accessory?
Yes, if the equipment requires 12V constant voltage and the load stays within 50.4W and 4.2A. That makes it suitable for lower-power industrial control and automation devices built for a 12V DC input.
Is this a good power supply for 12V embedded systems or small HMI hardware?
It can be a fit for embedded systems or compact HMI hardware that run on 12V DC and need no more than 4.2A. The 50.4W rating places it in the lower-power range compared with higher-output 12V siblings.
Can the LPS-50-12 be used where a very low-profile power supply is needed?
Yes, the dimensions are 195.0 x 55.0 x 23.0 mm and the features call out a 23mm thickness and low-profile form factor. That makes it practical for compact 12V equipment where enclosure height is limited.
Is the LPS-50-12 appropriate for colder or hotter indoor environments?
The specified operating temperature range is -20°C to +70°C, which is broader than the -10°C to +60°C range shown on the LPS-100 models listed here. The provided specs do not include an IP rating, so temperature capability is stated but outdoor protection level is not.
How does the LPS-50-12 compare with other 12V LPS models?
For 12V outputs in the listed family, LPS-50-12 is 50.4W and 4.2A, LPS-75-12 is 74.4W and 6.2A, and LPS-100-12 is 100.8W and 8.4A. The LPS-50-12 is the lowest-power 12V option among those three.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPS-50 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPS-50-5 Power Supply 50W 5V | 50W | 5V | 10A | Indoor | $20.07 | View |
| Mean Well LPS-50-48 Power Supply 52W 48V | 52.8W | 48V | 1.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-3.3 Power Supply 33W 3.3V | 33W | 3.3V | 10A | Indoor | $20.10 | View |
| Mean Well LPS-50-24 Power Supply 50W 24V | 50.4W | 24V | 2.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-15 Power Supply 51W 15V | 51W | 15V | 3.4A | Indoor | $20.10 | View |
