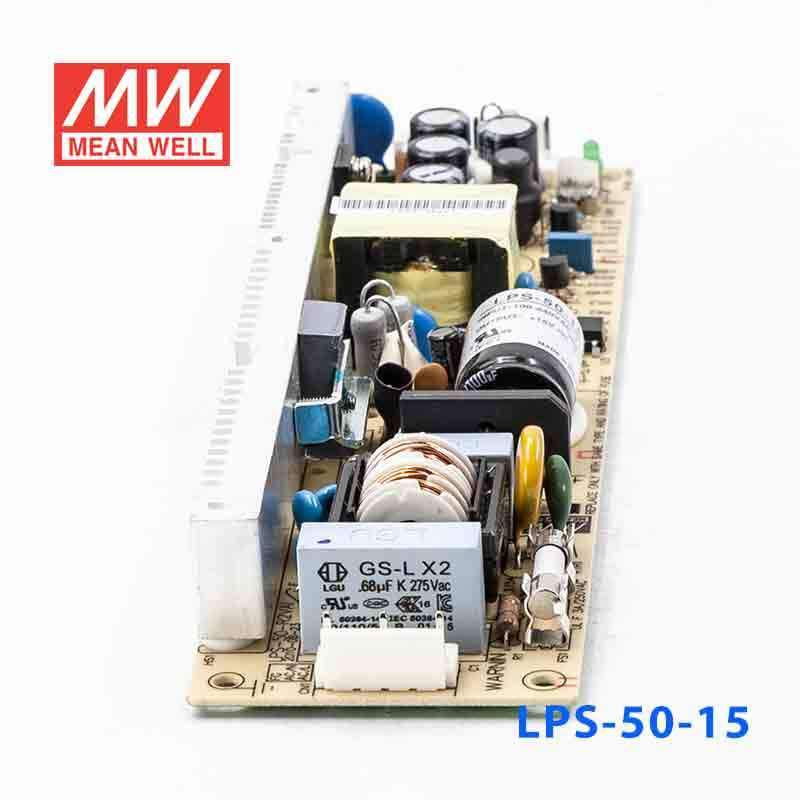

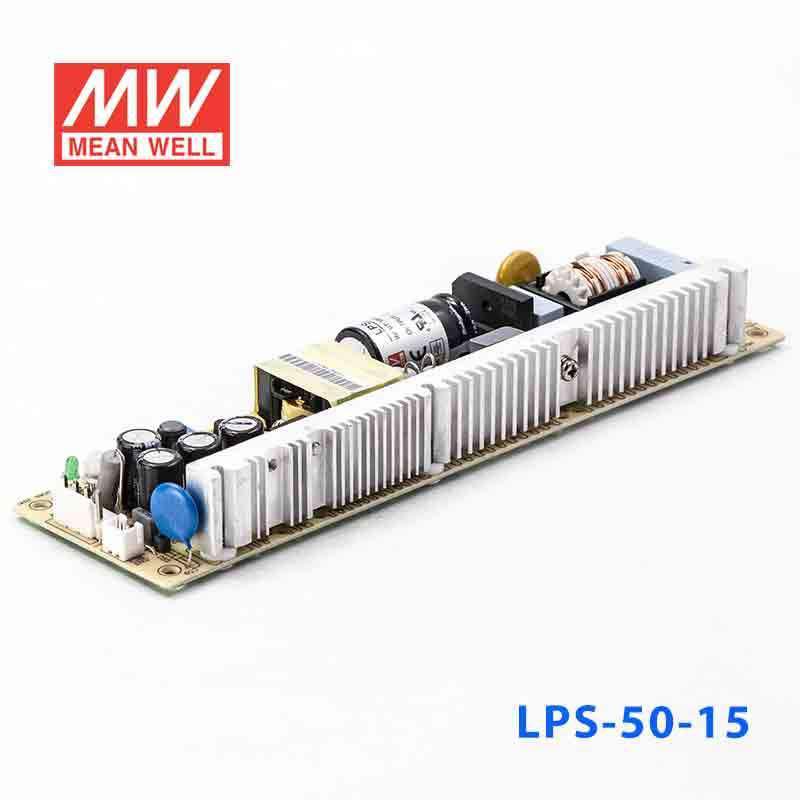

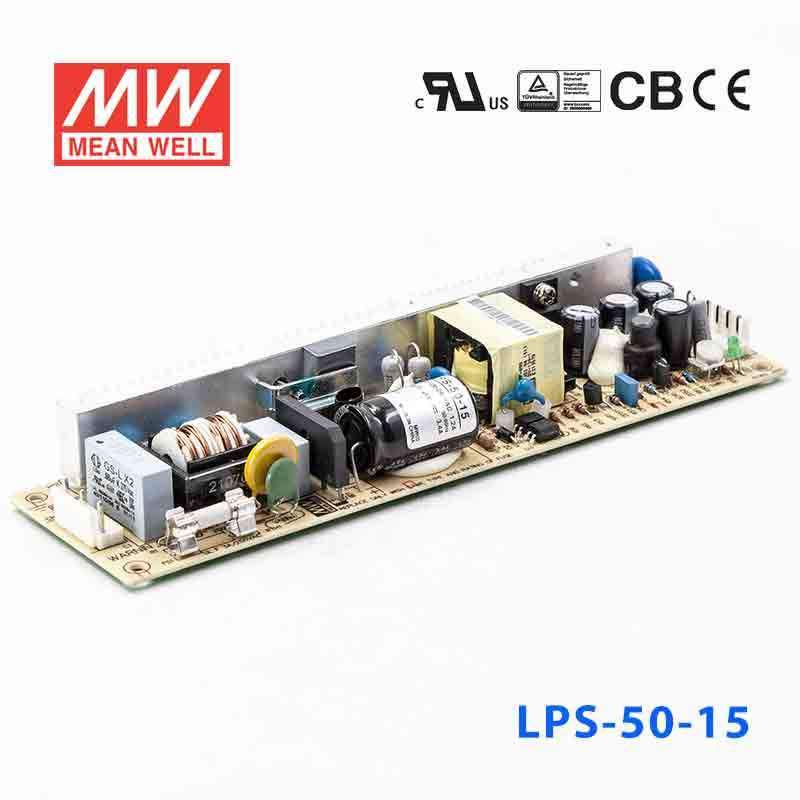

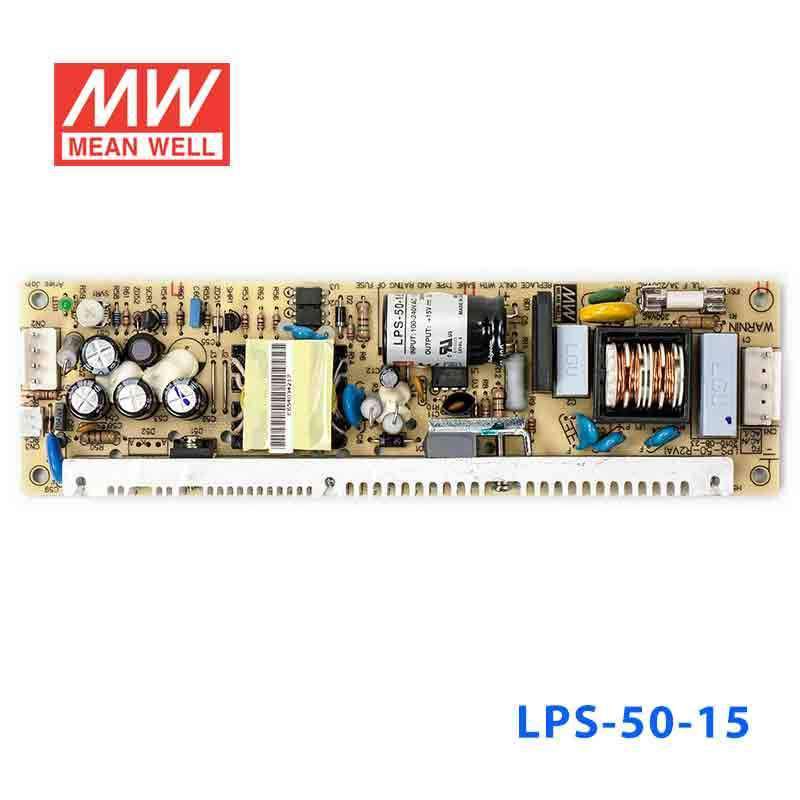

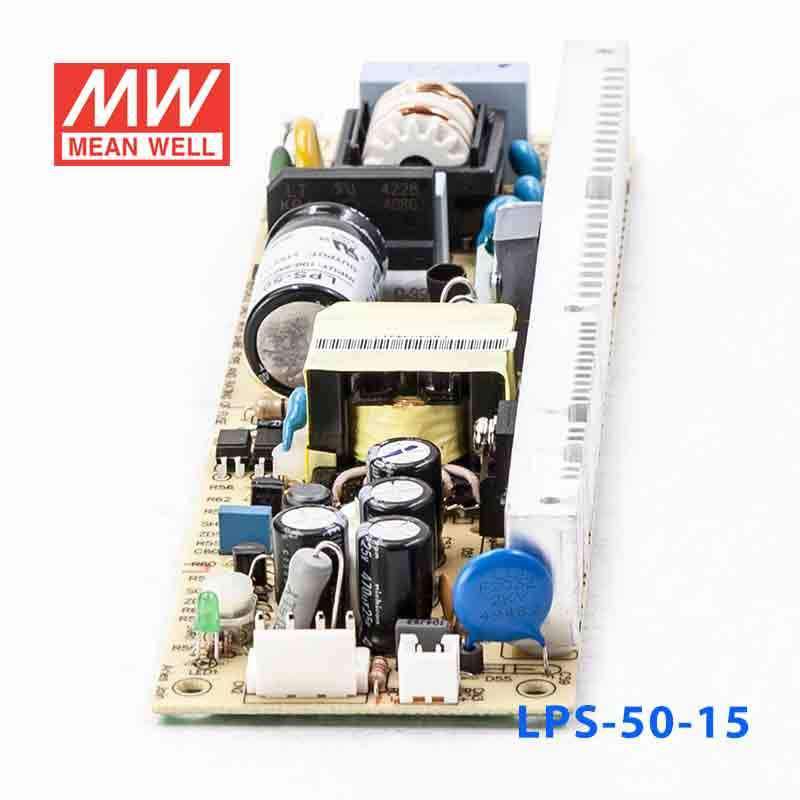

Mean Well LPS-50-15 Power Supply 51W 15V
The LPS-50 is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating51 Watt
-
Output Voltage15 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length7.68 in
-
Width2.17 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LPS-50-15 for a 15V industrial instrument or control module?
Yes, if the device requires a 15V constant-voltage supply and the total load does not exceed 51W or 3.4A. That makes it relevant for lower-power industrial instruments and control modules built for 15V DC.
Is this suitable for 15V embedded electronics in an OEM assembly?
It can be used for embedded electronics that specify 15V DC input and stay within the 3.4A output limit. Because it is a constant-voltage supply, it is intended for equipment designed around a fixed 15V rail.
Can the LPS-50-15 fit in a compact enclosure for automation hardware?
It is well suited to compact builds because the housing measures 195.0 x 55.0 x 23.0 mm and the feature list highlights the 23mm low-profile design. For space-constrained automation hardware that needs 15V, that form factor can be useful.
Is the LPS-50-15 intended for outdoor environments?
The provided specs list an operating temperature range of -20°C to +70°C, which defines the temperature window. No IP rating is listed, so the supplied data does not establish an outdoor protection level.
How does the LPS-50-15 compare with the other 15V models in this series?
Among the listed 15V siblings, LPS-50-15 is 51W and 3.4A, LPS-75-15 is 75W and 5A, and LPS-100-15 is 100.5W and 6.7A. The main difference across those three is available output power and current at the same 15V output.
