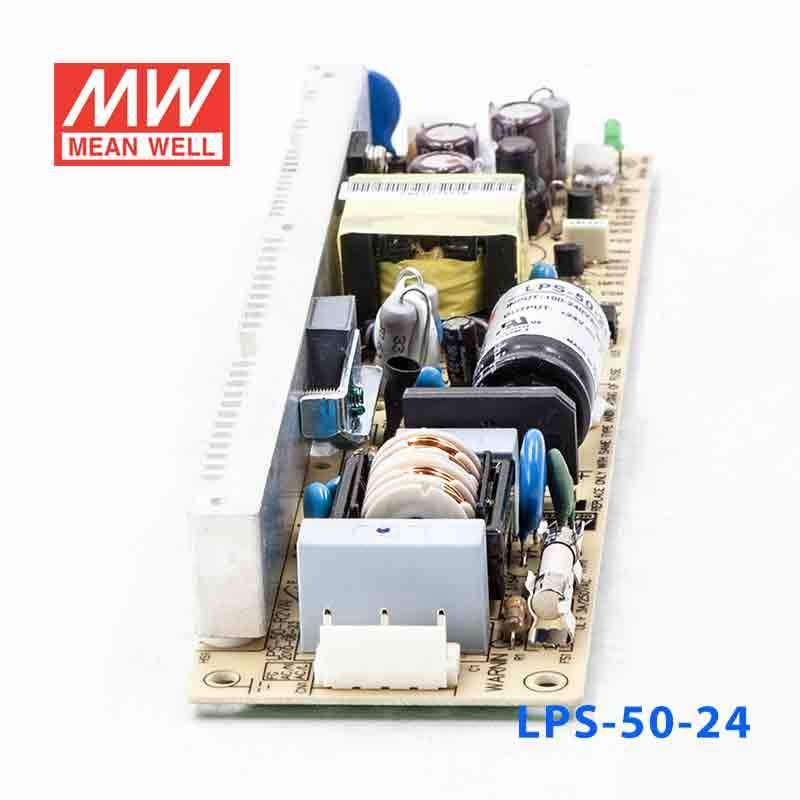

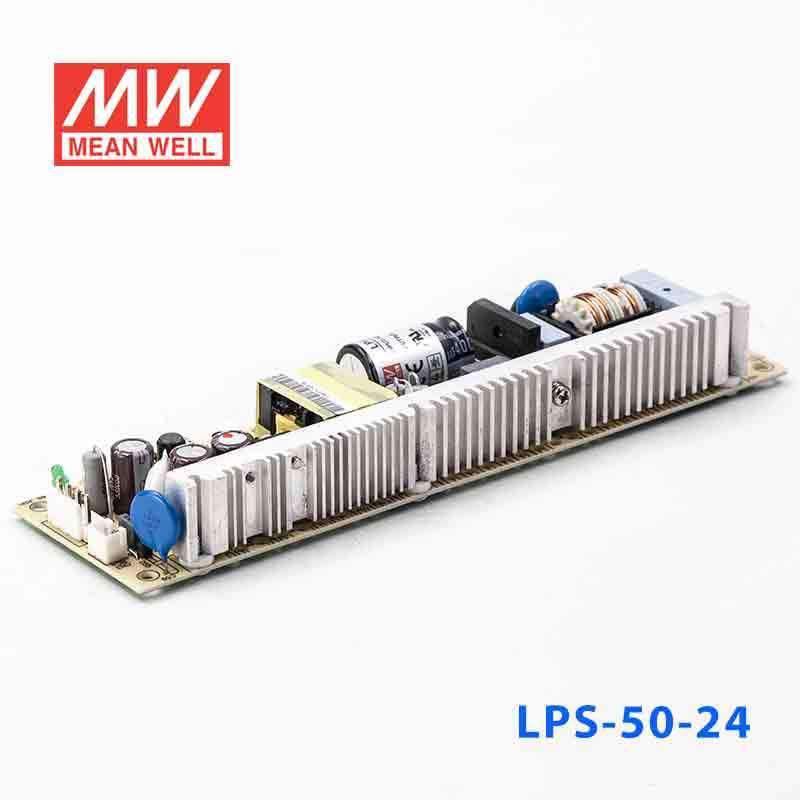

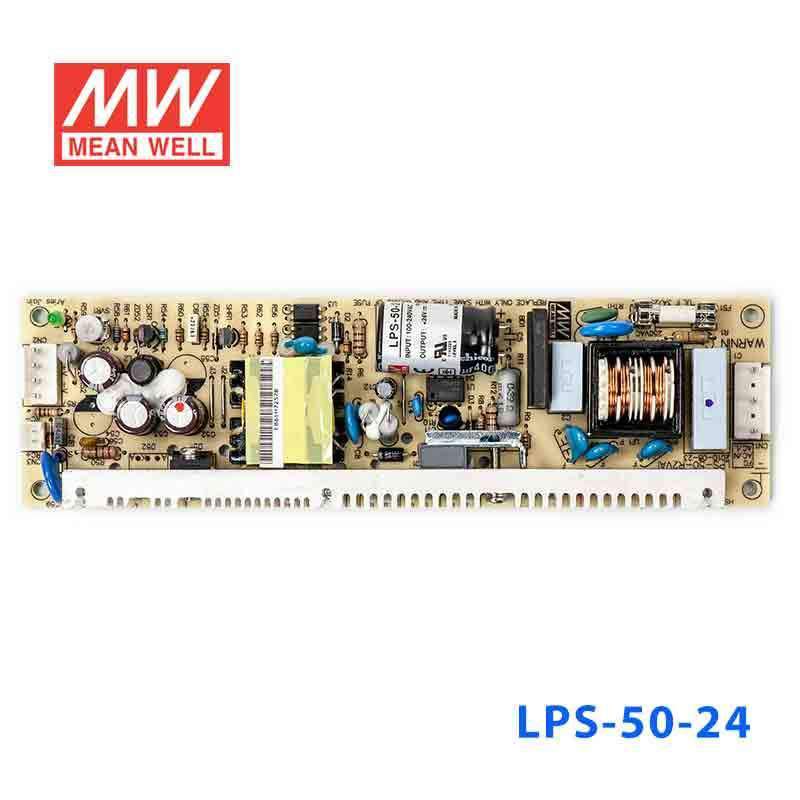

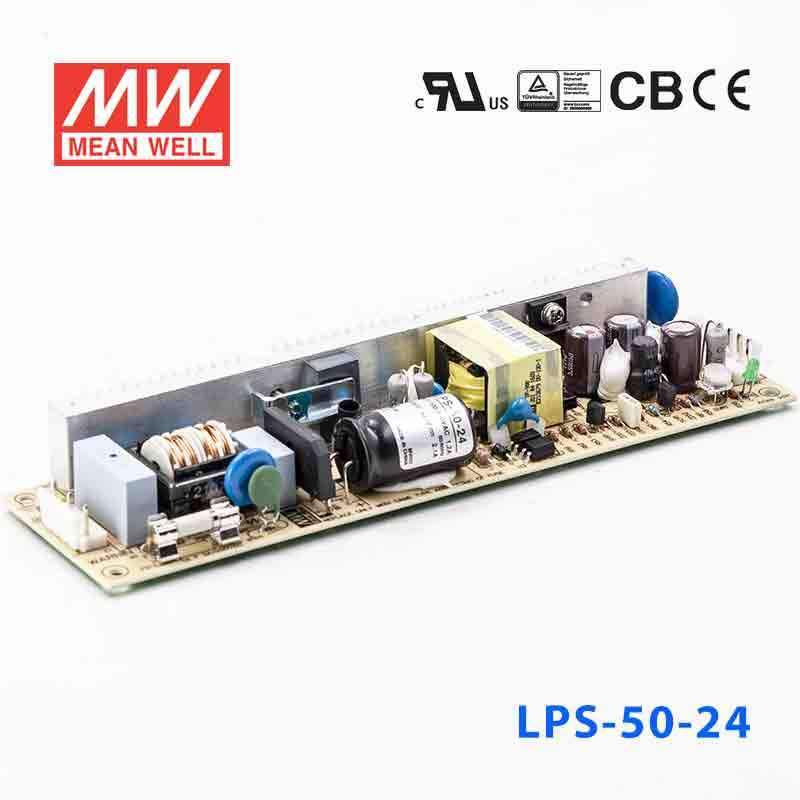

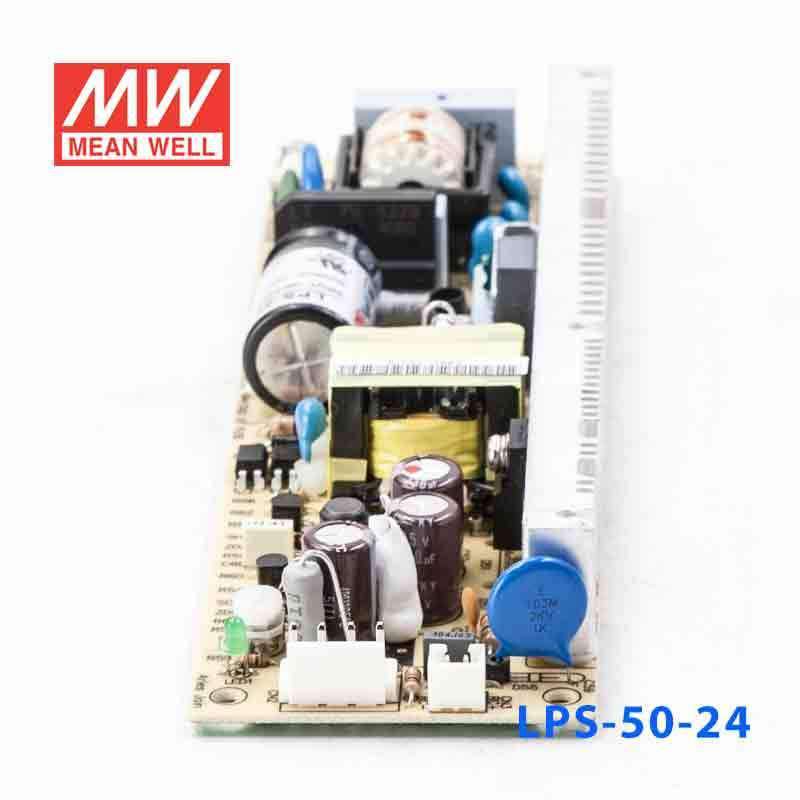

Mean Well LPS-50-24 Power Supply 50W 24V
The LPS-50 is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating50.4 Watt
-
Output Voltage24 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length7.68 in
-
Width2.17 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LPS-50-24 for 24V PLC I/O, sensors, or industrial control accessories?
Yes, this model is a constant voltage 24V supply rated for 50.4W and 2.1A. That makes it a fit for 24V control loads that stay within 2.1A total demand.
Is the LPS-50-24 suitable for embedded or compact automation equipment with limited internal space?
It is designed for compact builds, with a 195.0 x 55.0 x 23.0 mm form factor and 0.24 kg weight. The 23.0 mm low-profile design can help in slim control housings or embedded equipment.
Can this 24V power supply be used for small DC motors, relays, or solenoids in automation systems?
It can support 24V DC loads where the combined draw stays within 50.4W and 2.1A. Buyers should match it only to 24V constant voltage equipment within that output range.
Does the LPS-50-24 work for 24V HMI panels, access control hardware, or industrial communications devices?
It can be used where the equipment requires a regulated 24V constant voltage source and the total load does not exceed 2.1A. The wide 90-264VAC input also supports use across common AC mains ranges.
Is the LPS-50-24 intended for outdoor or harsh washdown locations?
The listed data gives an operating temperature range of -20°C to +70°C, but it does not state an IP rating. Based on the provided specs, temperature capability is defined, while outdoor or washdown protection is not specified.
How does the LPS-50-24 compare with other LPS 24V models?
Within the listed siblings, the 24V options are LPS-50-24 at 50.4W and 2.1A, LPS-75-24 at 76.8W and 3.2A, and LPS-100-24 at 100.8W and 4.2A. The main difference between them is available output power and current at the same 24V output.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPS-50 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPS-50-5 Power Supply 50W 5V | 50W | 5V | 10A | Indoor | $20.07 | View |
| Mean Well LPS-50-48 Power Supply 52W 48V | 52.8W | 48V | 1.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-3.3 Power Supply 33W 3.3V | 33W | 3.3V | 10A | Indoor | $20.10 | View |
| Mean Well LPS-50-15 Power Supply 51W 15V | 51W | 15V | 3.4A | Indoor | $20.10 | View |
| Mean Well LPS-50-12 Power Supply 50W 12V | 50.4W | 12V | 4.2A | Indoor | $20.10 | View |
