Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well LPS-50-3.3 Power Supply 33W 3.3V 10A
Notify me when it's back in stock
Your order will be processed within 24 hours

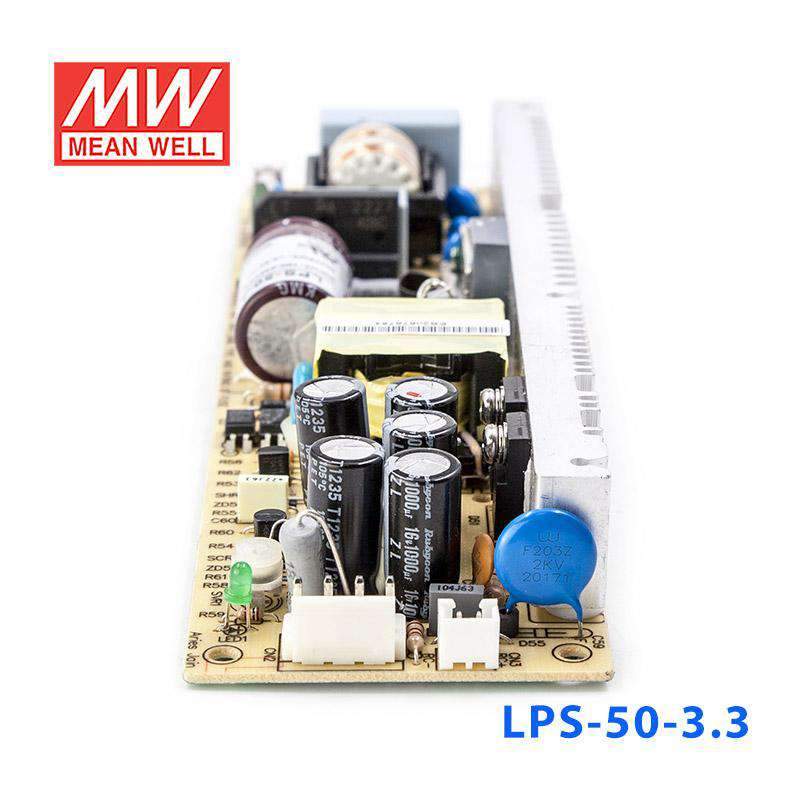

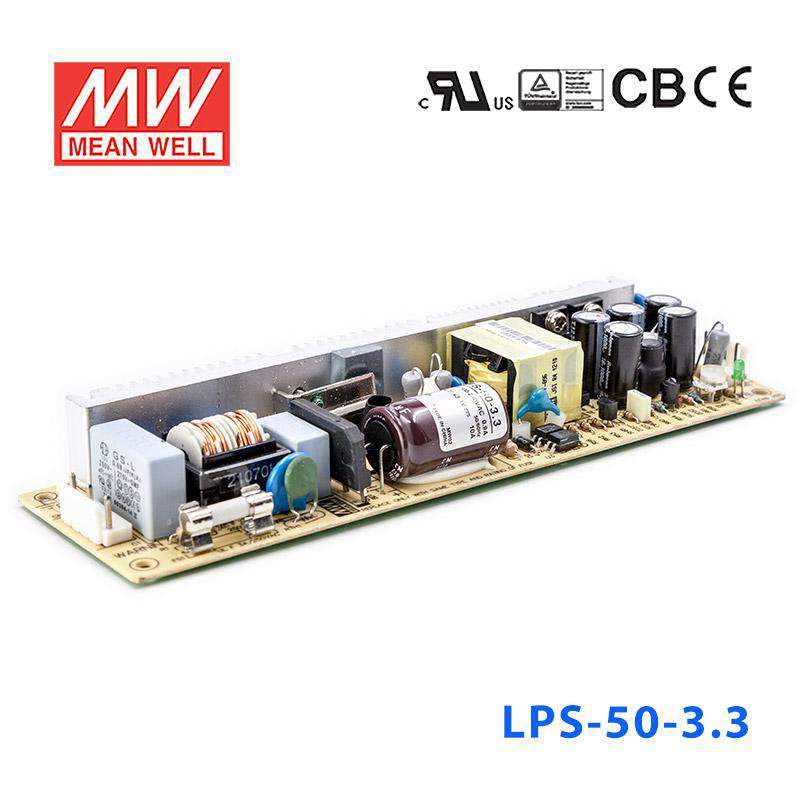

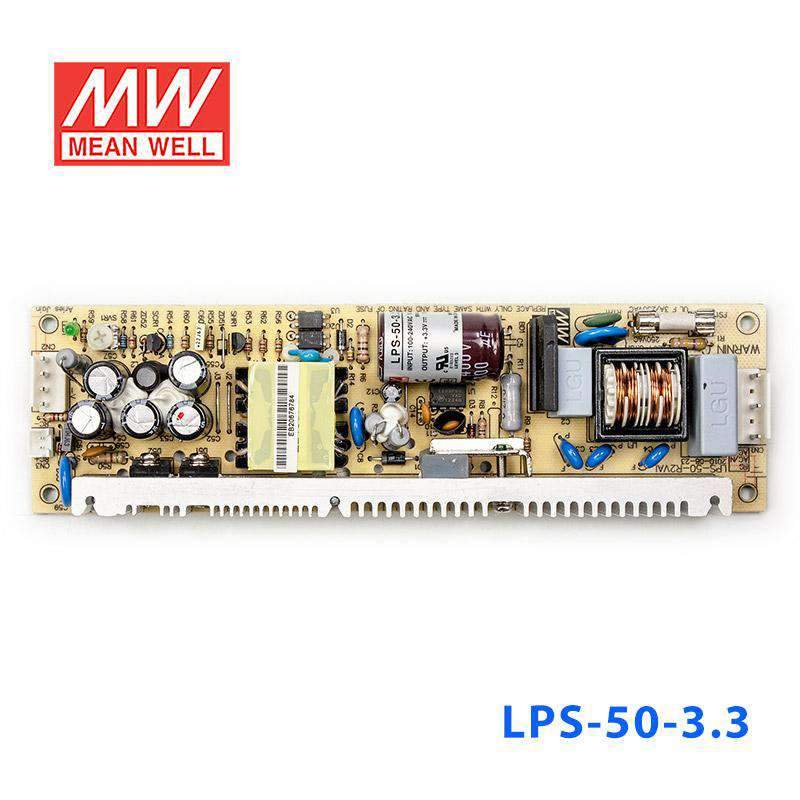

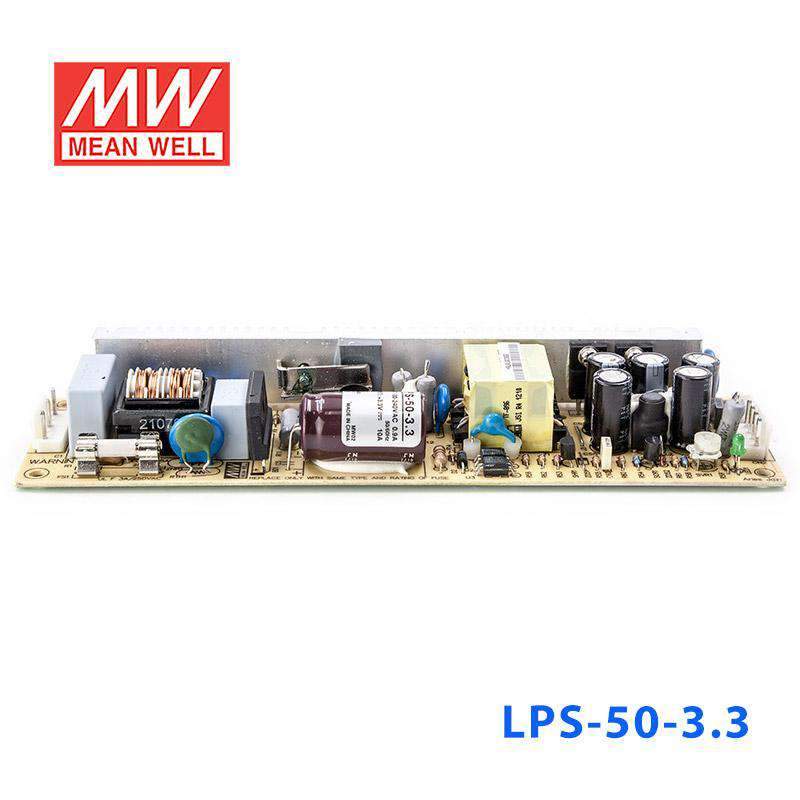

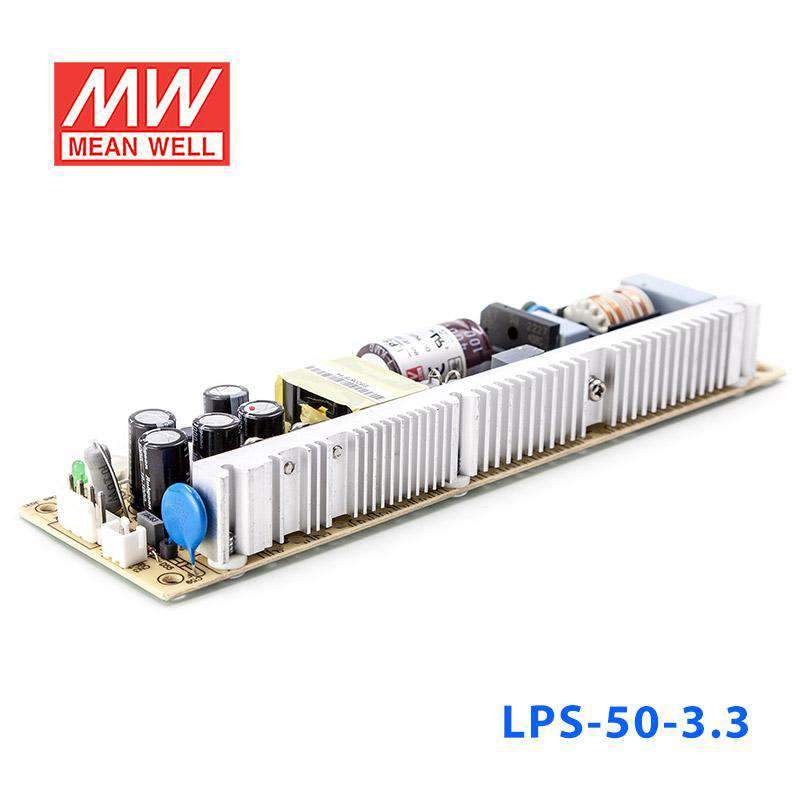

Mean Well LPS-50-3.3 Power Supply 33W 3.3V 10A
The LPS-50-3.3 is a 33W Mean Well open-frame power supply (input: 90~264VAC, operating temperature: -20~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 3.3V
- ✓ Rated output current: 10A
- ✓ Operating temperature: -20~+70°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating33 Watt
-
Output Voltage3.3 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length7.68 in
-
Width2.17 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LPS-50-3.3 for 3.3V embedded boards, logic devices, or industrial controllers?
Yes, this is a constant voltage 3.3V supply rated for 33W and 10A. It suits 3.3V electronics and controller loads that stay within 10A total output current.
Is the LPS-50-3.3 appropriate for FPGA, MCU, or SBC power in a compact enclosure?
It can fit compact equipment because the housing is 195.0 x 55.0 x 23.0 mm and weighs 0.24 kg. The low-profile 23.0 mm design is useful where internal height is limited.
Can this model power 3.3V industrial communication or embedded I/O hardware?
It is intended for 3.3V constant voltage loads and provides up to 33W with 10A output current. That makes it suitable for 3.3V electronics in automation or embedded systems when the total load stays within those limits.
Would the LPS-50-3.3 make sense for lab or test fixtures that need regulated 3.3V DC?
It can be used for bench or fixture applications that require a fixed 3.3V output and no more than 10A. The 90-264VAC input is also useful where the AC source may vary across standard mains ranges.
Can the LPS-50-3.3 be used in hot or cold indoor equipment environments?
The specified operating temperature range is -20°C to +70°C. The provided specs do not include an IP rating, so environmental protection beyond that temperature range is not stated.
How does the LPS-50-3.3 compare with the other 3.3V LPS versions?
The listed 3.3V siblings are LPS-50-3.3 at 33W and 10A, LPS-75-3.3 at 49.5W and 15A, and LPS-100-3.3 at 66W and 20A. They share the same nominal 3.3V output, with higher models providing more wattage and current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPS-50 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPS-50-5 Power Supply 50W 5V 10A | 50W | 5V | 10A | Indoor | $20.07 | View |
| Mean Well LPS-50-48 Power Supply 52W 48V 1.1A | 52.8W | 48V | 1.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-24 Power Supply 50W 24V 2.1A | 50.4W | 24V | 2.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-15 Power Supply 51W 15V 3.4A | 51W | 15V | 3.4A | Indoor | $20.10 | View |
| Mean Well LPS-50-12 Power Supply 50W 12V 4.2A | 50.4W | 12V | 4.2A | Indoor | $20.10 | View |
