Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

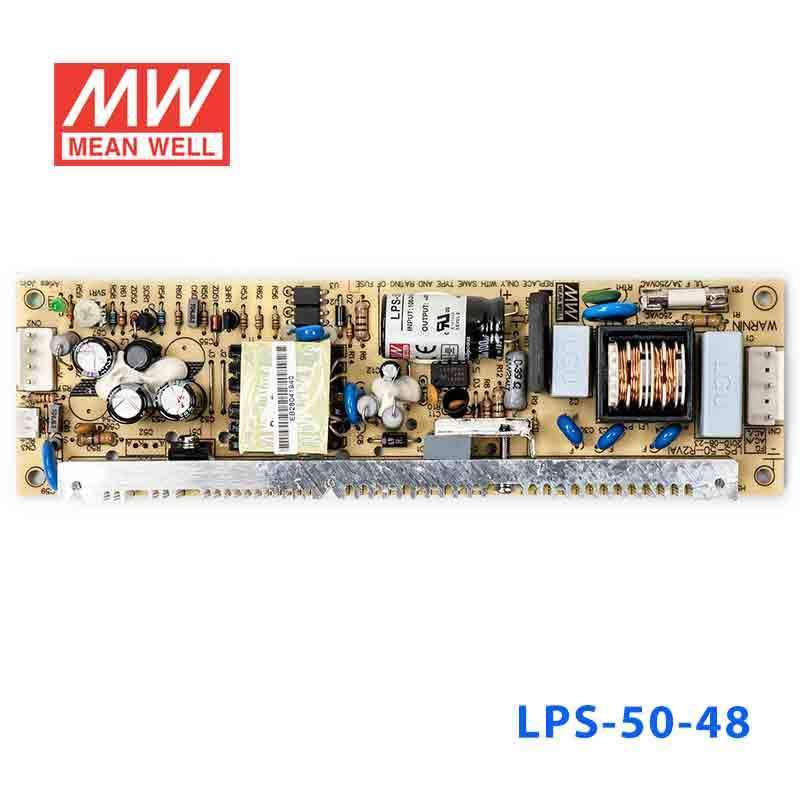

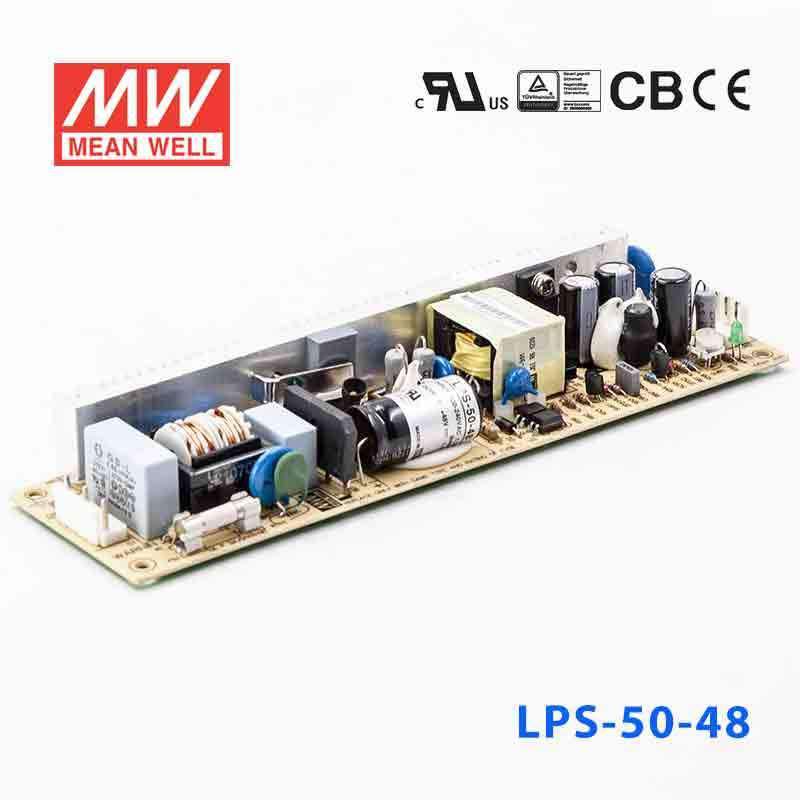

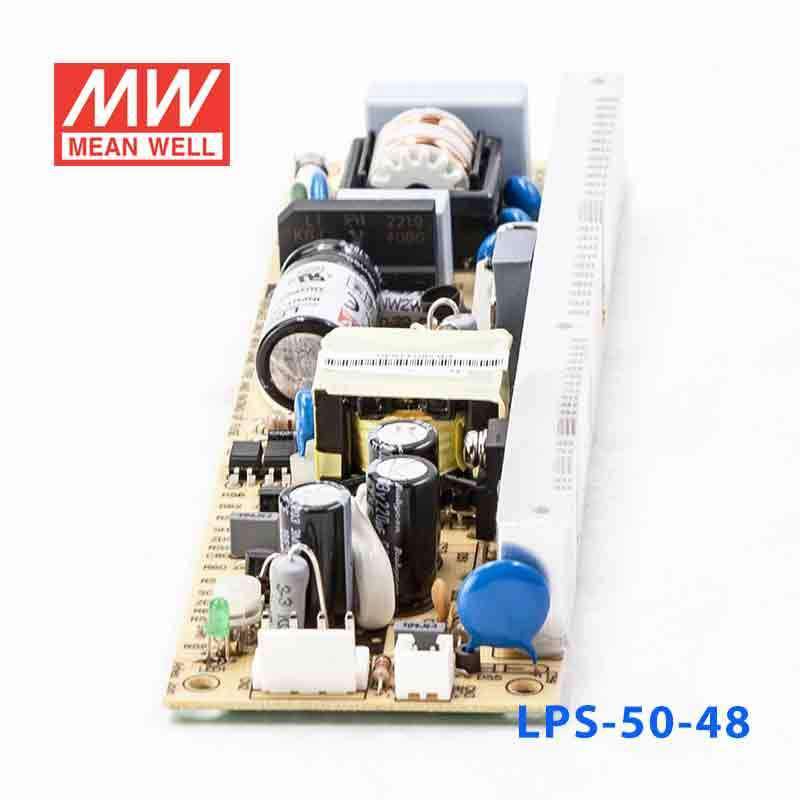

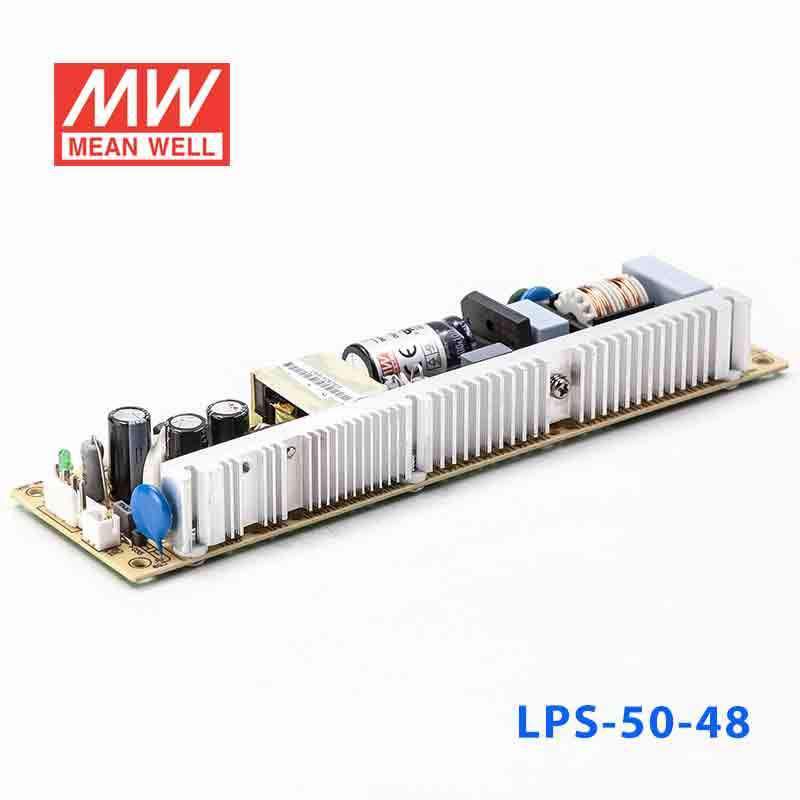

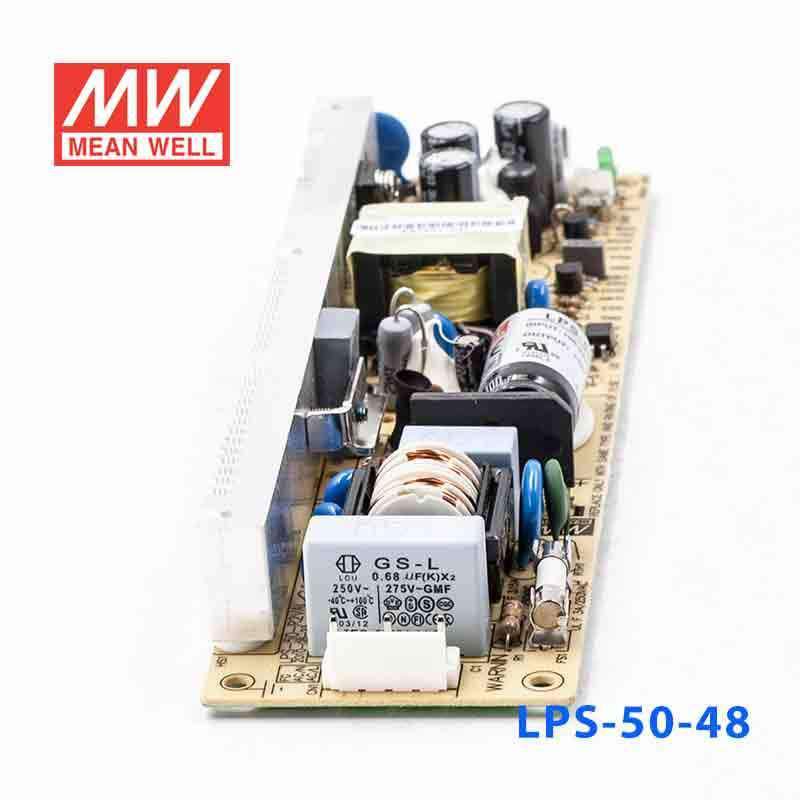

Mean Well LPS-50-48 Power Supply 52W 48V
The LPS-50 is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating52.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length7.68 in
-
Width2.17 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LPS-50-48 for 48V industrial controls, telecom accessories, or network hardware?
Yes, if the equipment requires constant voltage 48V DC and the load stays within 52.8W and 1.1A. It is best matched to lighter 48V devices rather than higher-current 48V loads.
Is the LPS-50-48 suitable for compact embedded equipment or slim control cabinets?
It is built in a compact format at 195.0 x 55.0 x 23.0 mm and weighs 0.24 kg. The 23.0 mm profile helps where enclosure depth is limited.
Can this power supply run 48V sensors, transmitters, or automation modules?
It can power 48V constant voltage devices up to 1.1A total output current. Buyers should check that the complete connected load remains within 52.8W.
Would the LPS-50-48 fit low-power 48V DC systems used in industrial or IT equipment?
It is a fit for low-power 48V applications that need a regulated output and accept up to 1.1A available current. The universal 90-264VAC input also supports operation from common AC input ranges.
Is the LPS-50-48 rated for outdoor exposure?
The product data specifies operation from -20°C to +70°C, but no IP rating is listed. Based on the provided specs, temperature range is defined while outdoor ingress protection is not specified.
How does the LPS-50-48 compare with the other 48V options in the LPS series?
The listed 48V models are LPS-50-48 at 52.8W and 1.1A, LPS-75-48 at 75W and 1.56A, and LPS-100-48 at 100.8W and 2.1A. All are 48V constant voltage models, with the differences centered on available power and output current.
