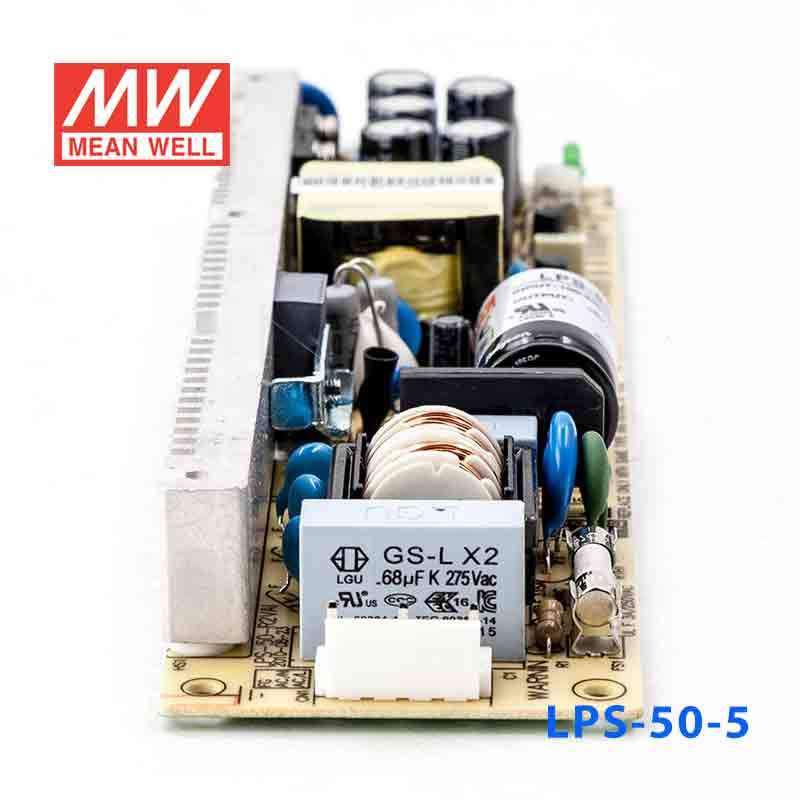

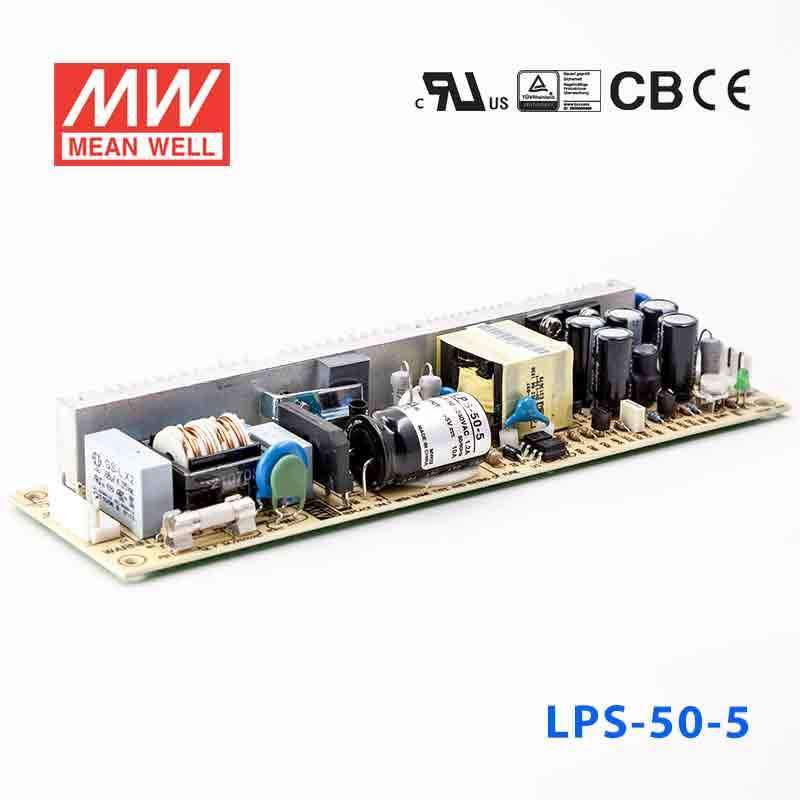

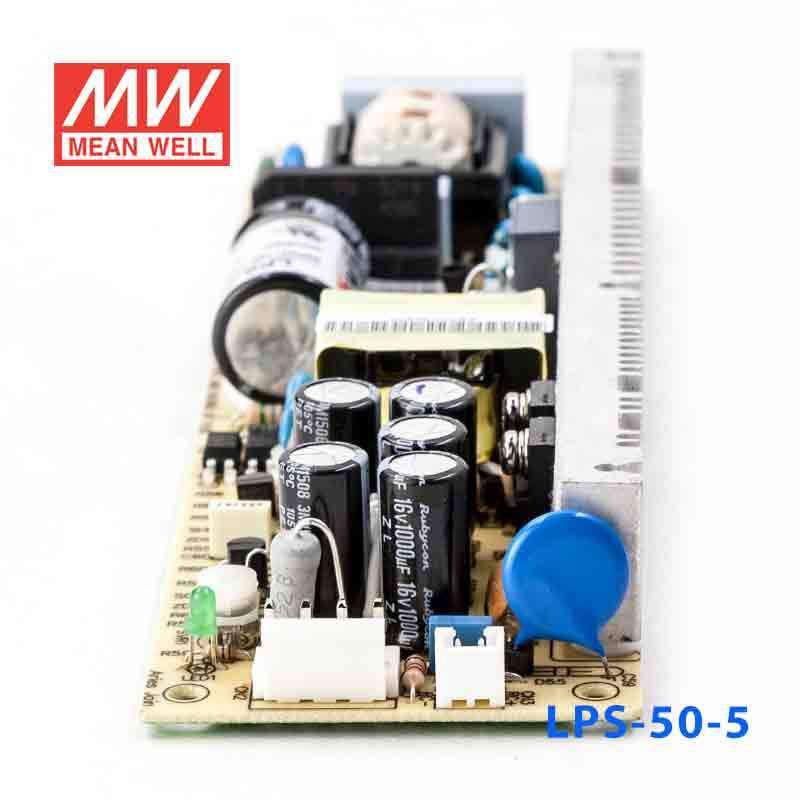

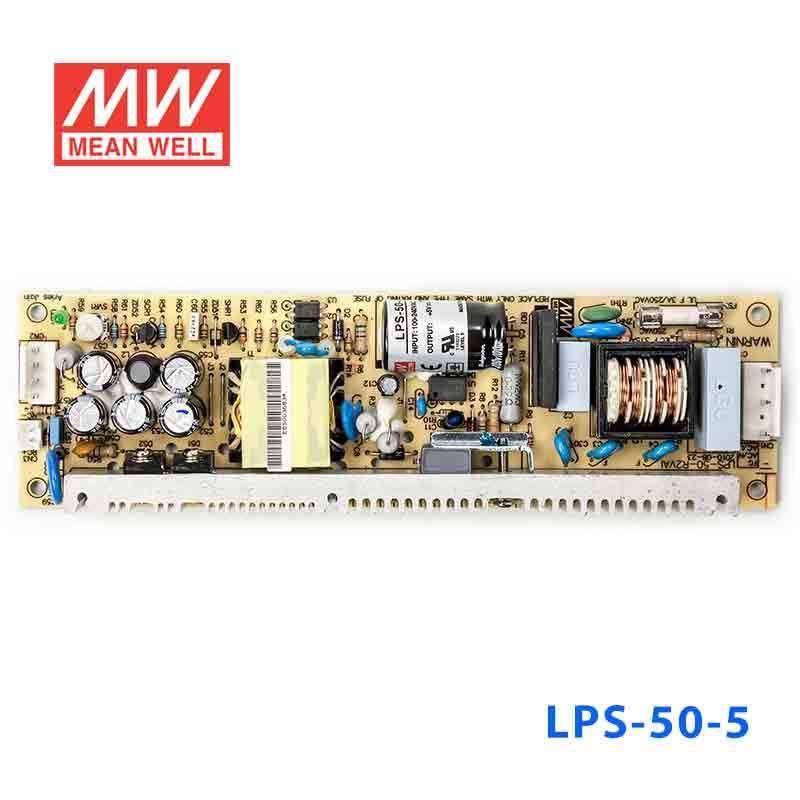

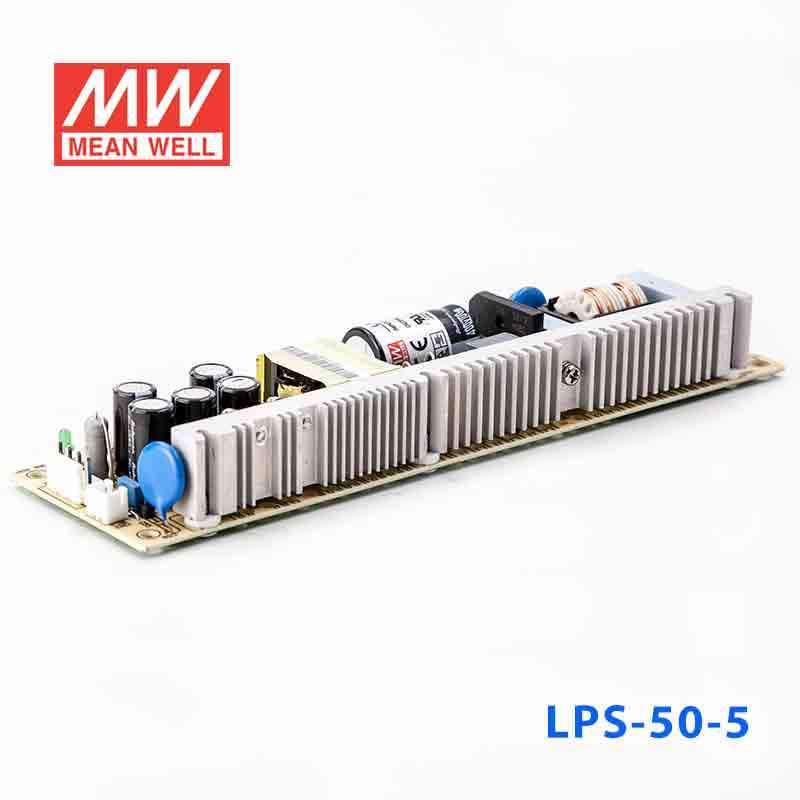

Mean Well LPS-50-5 Power Supply 50W 5V
The LPS-50 is a 50W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length7.68 in
-
Width2.17 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LPS-50-5 for 5V industrial controllers, logic circuits, or embedded devices?
Yes, this model provides constant voltage 5V output rated for 50W and 10A. It suits 5V electronics and control hardware when the full load stays within 10A.
Is the LPS-50-5 suitable for single-board computers, USB-powered subsystems, or test equipment that need a bulk 5V source?
It can be used as a regulated 5V source for embedded or lab systems that draw up to 50W total. The supply is sized for higher-current 5V loads than low-power adapters, with up to 10A available.
Can this model support 5V displays, HMI logic sections, or industrial communication electronics?
It is a fit for 5V constant voltage electronics where total demand does not exceed 10A. That makes it appropriate for many 5V logic, display, and communications loads in industrial or IT equipment.
Does the LPS-50-5 work well in low-clearance equipment housings?
Its dimensions are 195.0 x 55.0 x 23.0 mm and its weight is 0.24 kg. The low-profile 23.0 mm thickness helps when the enclosure height is restricted.
Can the LPS-50-5 be used in indoor equipment exposed to cold or high ambient temperatures?
The operating temperature range is specified as -20°C to +70°C. No IP rating is listed in the provided data, so the environmental protection level is not defined beyond that temperature range.
How does the LPS-50-5 compare with the other 5V LPS power supplies?
The listed 5V siblings are LPS-50-5 at 50W and 10A, LPS-75-5 at 75W and 15A, and LPS-100-5 at 100W and 20A. They share the same 5V output, with the higher models increasing available wattage and current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPS-50 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPS-50-48 Power Supply 52W 48V | 52.8W | 48V | 1.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-3.3 Power Supply 33W 3.3V | 33W | 3.3V | 10A | Indoor | $20.10 | View |
| Mean Well LPS-50-24 Power Supply 50W 24V | 50.4W | 24V | 2.1A | Indoor | $20.10 | View |
| Mean Well LPS-50-15 Power Supply 51W 15V | 51W | 15V | 3.4A | Indoor | $20.10 | View |
| Mean Well LPS-50-12 Power Supply 50W 12V | 50.4W | 12V | 4.2A | Indoor | $20.10 | View |
