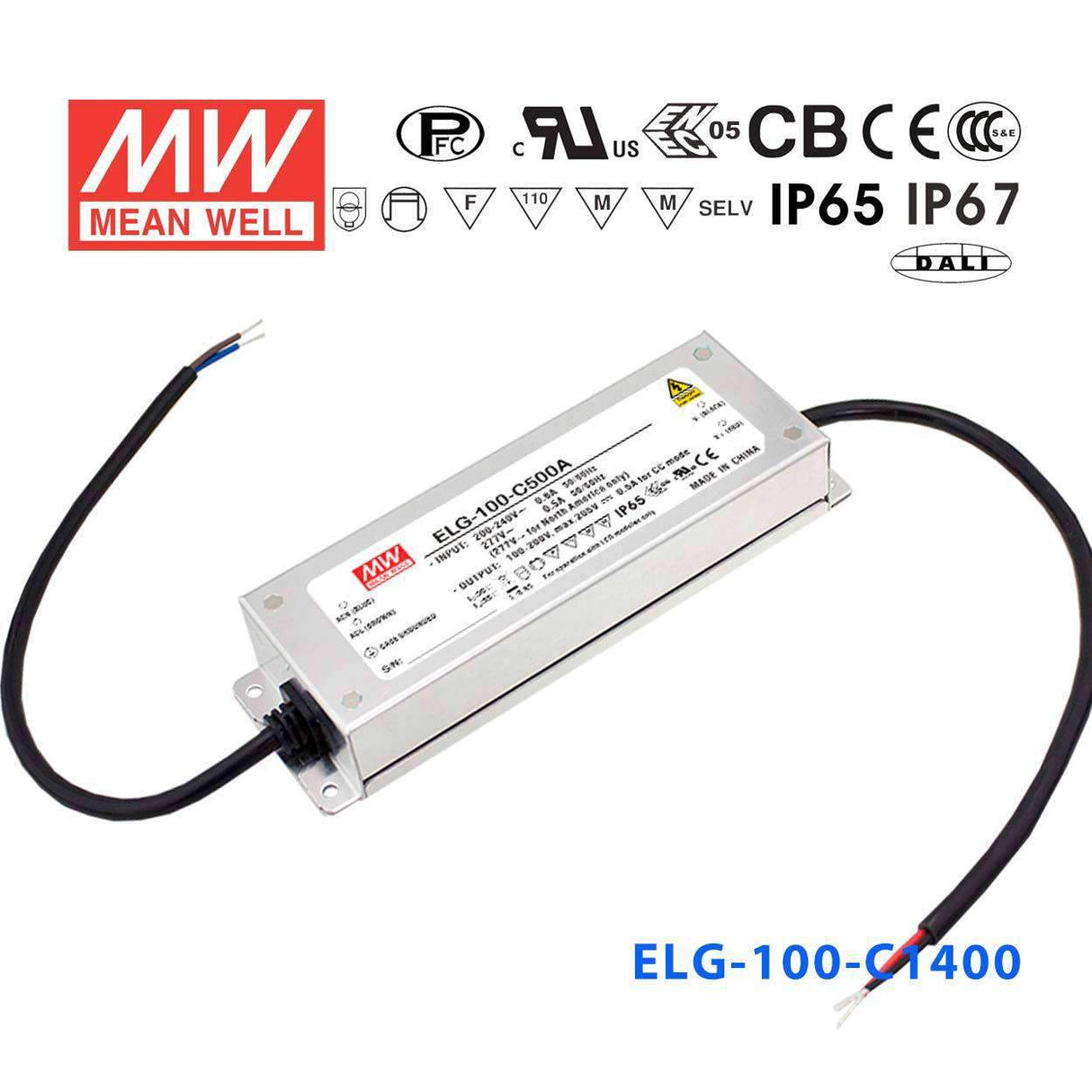

Mean Well ELG-100-C1400 Power Supply 100W 1400mA
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating100.8 Watt
-
Output Voltage75 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-C1400 power LED downlights that require a higher drive current than typical 1050mA drivers?
Yes. The ELG-100-C1400 delivers 1400mA constant current at up to 100.8W, making it suited for LED modules and downlight engines rated for higher drive currents. The CC output voltage range is 35–72V.
Is the ELG-100-C1400 appropriate for outdoor LED floodlights or area lights?
Yes. The IP67 waterproof rating means the driver can be mounted inside outdoor floodlight housings exposed to rain or humid conditions. It operates from -40°C to +90°C, covering a broad range of climatic conditions.
Can I use the ELG-100-C1400 to drive LED arrays in industrial or commercial signage requiring 1400mA?
Yes. At 1400mA constant current, this driver can supply LED signage modules or linear arrays designed for that current level. The 35–72V CC range accommodates series strings of compatible LED modules; the number of LEDs per string depends on each LED's forward voltage.
What LED string forward voltage range works with the ELG-100-C1400?
The constant current output voltage range is 35–72V. Series-connected LED strings with a combined forward voltage within this range are compatible. The number of individual LEDs that can be run in series depends on each LED's forward voltage specification.
Does the ELG-100-C1400 support both 120V and 240V AC mains?
Yes. The ELG-100-C1400 accepts 100–305VAC, covering North American 120V and 240V circuits, European 230V, and US commercial 277V feeds without any hardware changes.
How does the ELG-100-C1400 compare to the ELG-100-C1050 within the same series?
Both are approximately 100W constant-current IP67-rated drivers. The ELG-100-C1050 outputs 1050mA with a CC range of 48–95V, while the ELG-100-C1400 outputs 1400mA with a CC range of 35–72V. The higher current and lower voltage window of the C1400 targets LED modules specified for 1.4A drive current.
