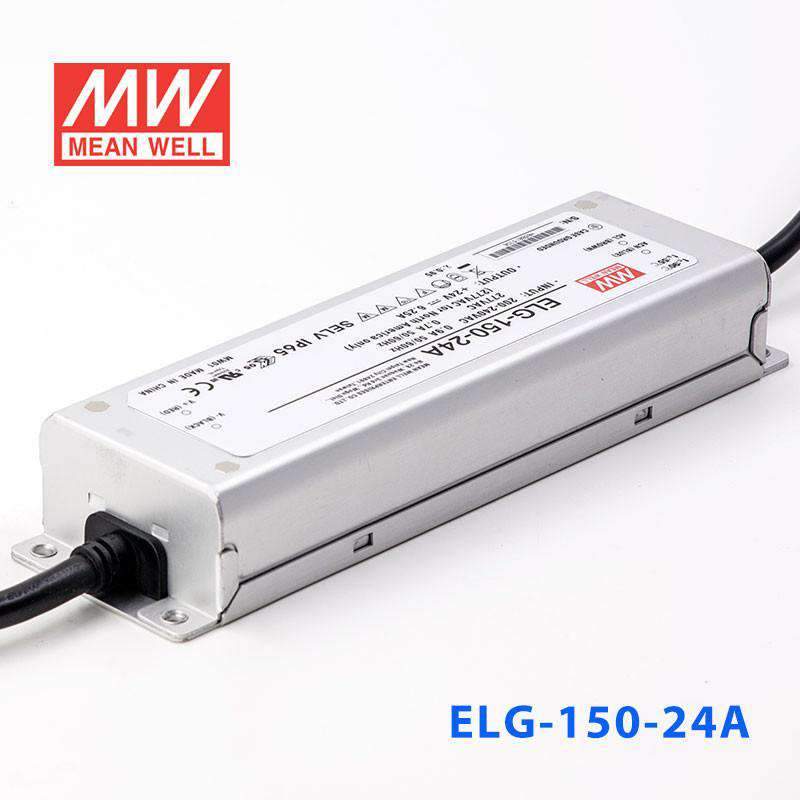

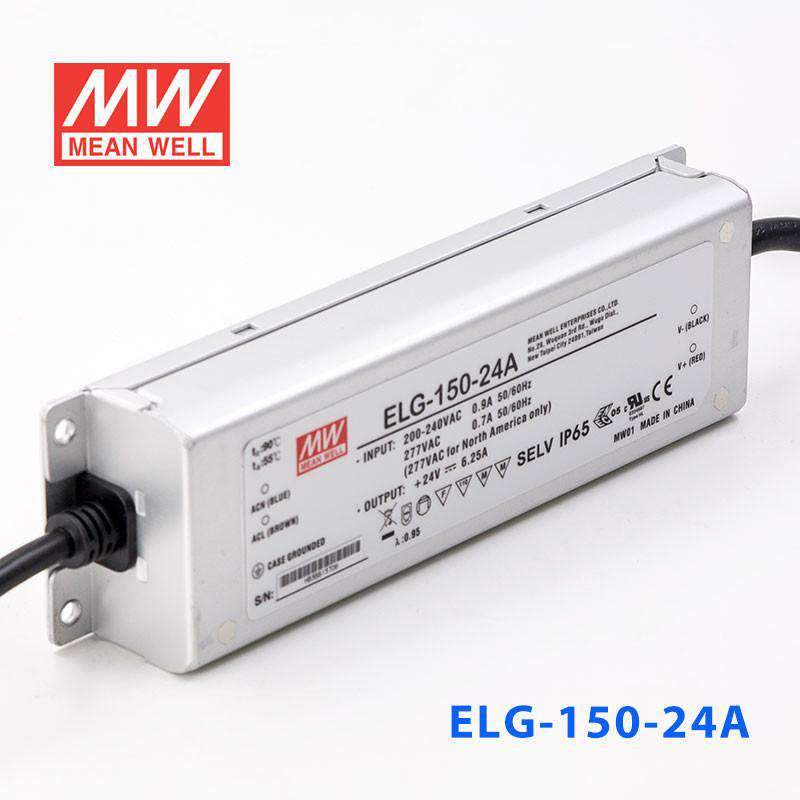

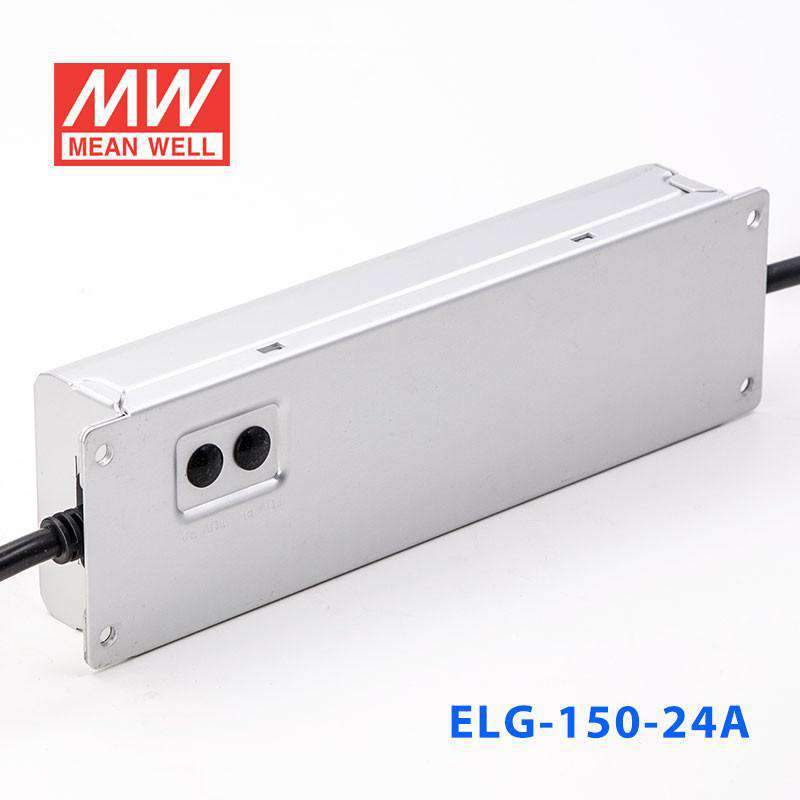

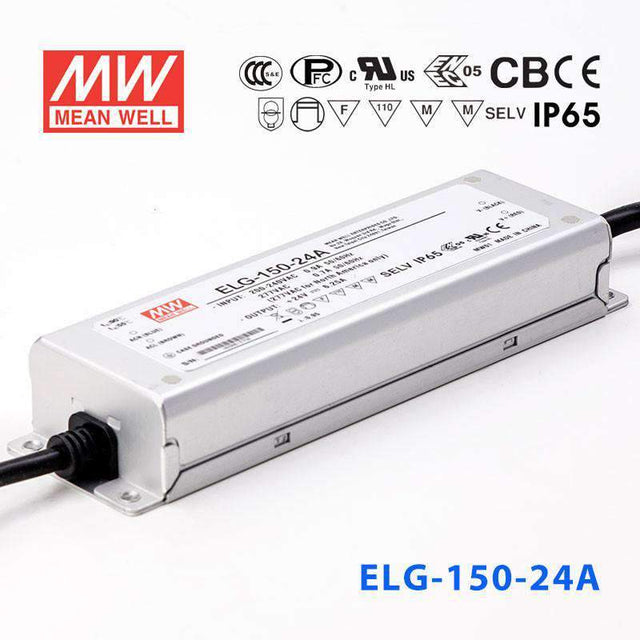

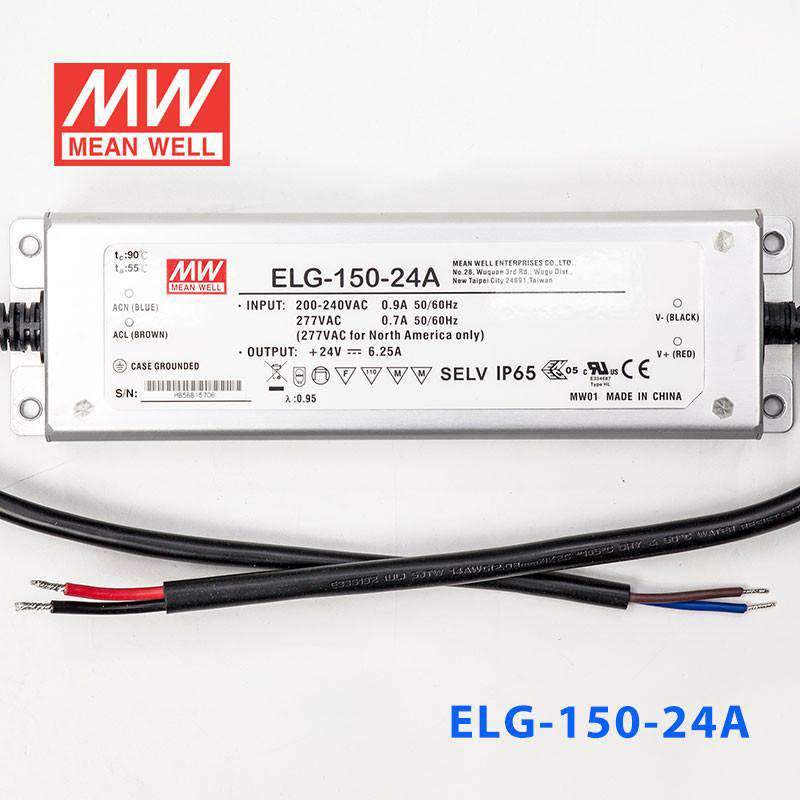

Mean Well ELG-150-24A Power Supply 150W 24V - Adjustable
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-24A to power 24V LED strips in a retail display with adjustable brightness?
Yes. The 'A' suffix indicates a built-in trim potentiometer that allows manual output voltage and current adjustment, which can be used to fine-tune the brightness of 24V LED strips in a retail display. The driver supplies 150W at 24V with 6.25A output.
Is the ELG-150-24A suitable for installation in a damp outdoor location such as a covered walkway?
The ELG-150-24A is rated IP65, meaning it is protected against low-pressure water jets from any direction. This makes it appropriate for damp outdoor locations like covered walkways, though it is not rated for submersion like the IP67 variants. The operating temperature range is -40°C to +90°C.
How many meters of 24V LED strip can the ELG-150-24A drive?
The ELG-150-24A delivers 150W at 24V. For a 20 W/m strip: 150 ÷ 20 = 7.5 m at full rated load; derated to 80% for continuous operation, that is 6 m. Check your specific strip's rated power per meter for an accurate sizing.
Can the ELG-150-24A be used for 24V LED tape in under-cabinet kitchen lighting?
Yes. The 24V output is directly compatible with 24V LED tape commonly used in under-cabinet applications. The potentiometer on the A variant allows the installer to trim brightness to match adjacent fixtures without a separate external dimmer.
Is the ELG-150-24A suitable for powering illuminated outdoor signage in a partially exposed location?
Yes. The IP65 rating covers direct water jet spray, making it suitable for signage enclosures in partially exposed outdoor locations. For fully exposed or submersion-risk installations, consider the IP67-rated ELG-150-24 or ELG-150-24B instead.
How does the ELG-150-24A differ from the ELG-150-24B for a commercial LED strip project?
Both deliver 150W at 24V with 6.25A. The ELG-150-24A provides a built-in potentiometer for manual output trimming, with no remote dimming interface. The ELG-150-24B adds 3-in-1 dimming (0/1–10V, PWM, or resistance) for connection to a remote dimmer or lighting control system. Choose A if manual factory-set brightness is sufficient; choose B if remote dimming is required. Note also that the A variant is IP65 while the B variant is IP67.
