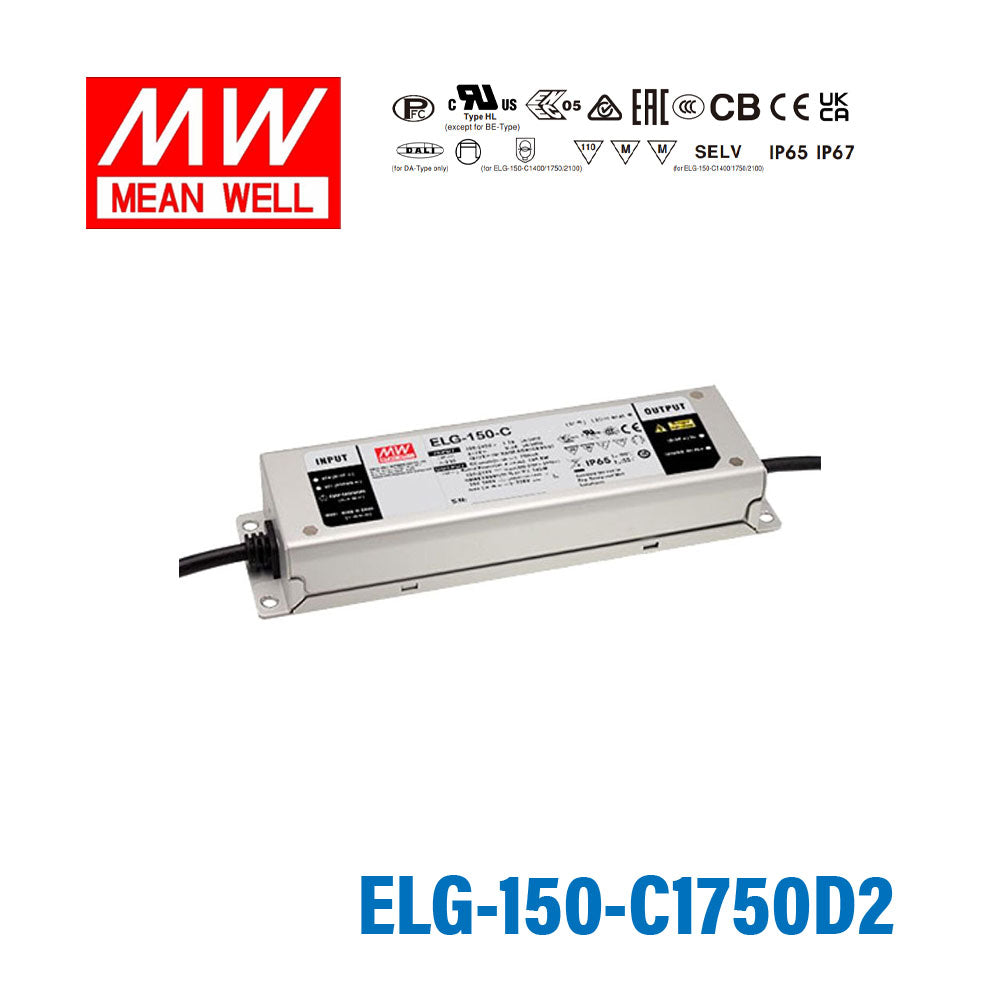

Mean Well ELG-150-C1750D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C1750D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage86 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C1750D2 be used in wet outdoor environments?
Yes. The ELG-150-C1750D2 is rated IP67, providing complete dust protection and resistance to temporary water immersion. It is suitable for outdoor downlight fixtures, landscape enclosures, or any installation where moisture contact is expected.
What DALI version does the ELG-150-C1750D2 support, and does it suit commercial dimming systems?
The D2 suffix designates DALI-2 compatibility, the updated standard with improved device-type classifications and enhanced interoperability. It is well-suited for commercial buildings and smart lighting projects that use DALI-2 bus controllers for addressable dimming of LED downlights or luminaires.
Can this driver power constant current LED modules in office downlight fixtures?
Yes. Operating in constant current mode, the ELG-150-C1750D2 maintains a stable output current for LED modules, which is important for uniform light output across grouped office downlights. The 100–305VAC input makes it compatible with standard commercial mains voltages globally.
Is the ELG-150-C1750D2 appropriate for LED arrays in illuminated architectural ceilings?
Yes. At 150W and constant current output, this driver can supply a series LED array in a troffers or coved ceiling arrangement. The DALI-2 interface allows integration with building automation systems for scene control and energy management.
How does the ELG-150-C1750D2 differ from the ELG-150-C1750DA?
The D2 suffix indicates DALI-2 (IEC 62386 edition 2), while the DA suffix indicates the original DALI standard. DALI-2 provides broader device-type support and stricter compliance testing. Both variants are rated at the same power and current output and share the IP67 waterproof enclosure.
Can the ELG-150-C1750D2 operate in cold-storage or outdoor winter conditions?
Yes. With an operating temperature range of -40°C to +90°C, the ELG-150-C1750D2 functions reliably in freezing ambient conditions such as cold-climate outdoor fixtures or refrigerated display lighting. The IP67 enclosure also tolerates condensation in such environments.
