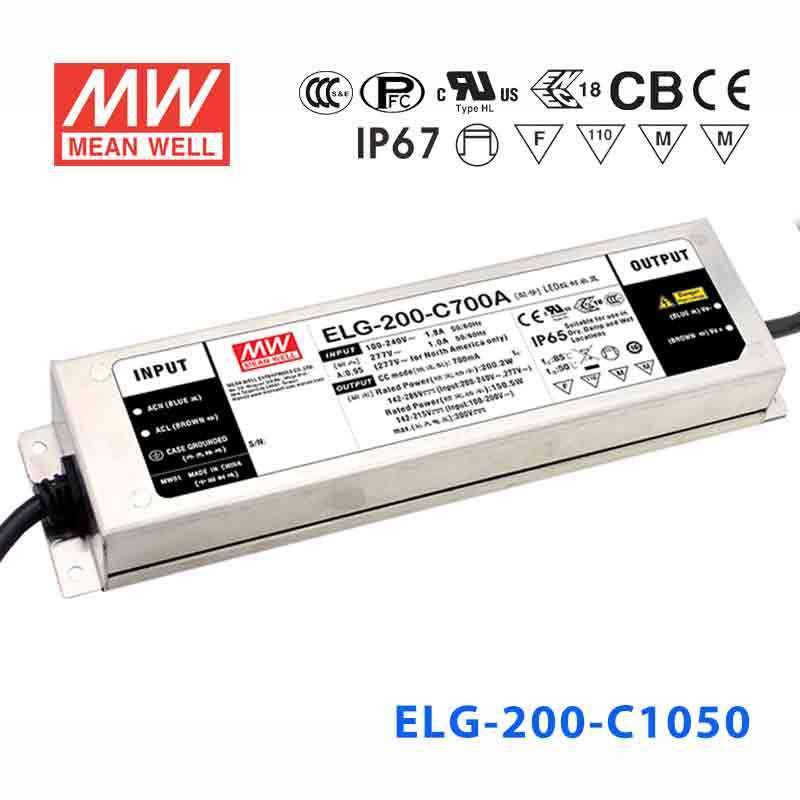

Mean Well ELG-200-C1050 Power Supply 200W 1050mA
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage200 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1050 drive high-power LED modules in industrial high-bay fixtures?
Yes. The ELG-200-C1050 delivers 199.5W at 1050mA constant current with a CC voltage range of 95–190V, which matches the high-power LED modules and COBs commonly used in industrial high-bay luminaires. The IP67 rating and -40°C to +85°C operating range suit demanding industrial environments.
Is the ELG-200-C1050 waterproof enough for outdoor LED flood or sports lighting?
Yes. The IP67 rating means the ELG-200-C1050 is fully protected against dust and temporary water immersion, making it suitable for outdoor floodlight enclosures and sports lighting fixtures exposed to rain and washdown. Its -40°C to +85°C operating range accommodates cold-climate installations.
Can the ELG-200-C1050 be used in an LED street light or area light fixture?
Yes. The 199.5W output at 1050mA constant current and IP67 waterproof enclosure make the ELG-200-C1050 appropriate for street lighting and area light applications. The wide input range of 100–305VAC is compatible with 120V, 230V, and 277V utility supplies.
How many LEDs can be connected in series with the ELG-200-C1050?
The ELG-200-C1050 regulates 1050mA over a CC voltage range of 95–190V. The number of series-connected LEDs depends on each LED's forward voltage — sum the forward voltages and keep the total within 95–190V for stable constant current regulation.
Can the ELG-200-C1050 power COB LED modules in commercial luminaires?
Yes. High-power COB LED modules designed for 1A-class drivers are a strong match for the ELG-200-C1050. At 199.5W and 1050mA, it can sustain the forward current that COB arrays in commercial downlights, spotlights, and linear luminaires require within a 95–190V string voltage.
What is the difference between the ELG-200-C1050 and the ELG-150-C700?
The ELG-200-C1050 outputs 199.5W at 1050mA with a CC range of 95–190V and an operating temp up to +85°C, housed in a 244.0 × 71.0 × 37.5 mm case. The ELG-150-C700 outputs 149.8W at 700mA with a CC range of 107–214V and operates up to +90°C in a smaller 219.0 × 63.0 × 35.5 mm case. Both carry IP67 and a 5-year warranty.
