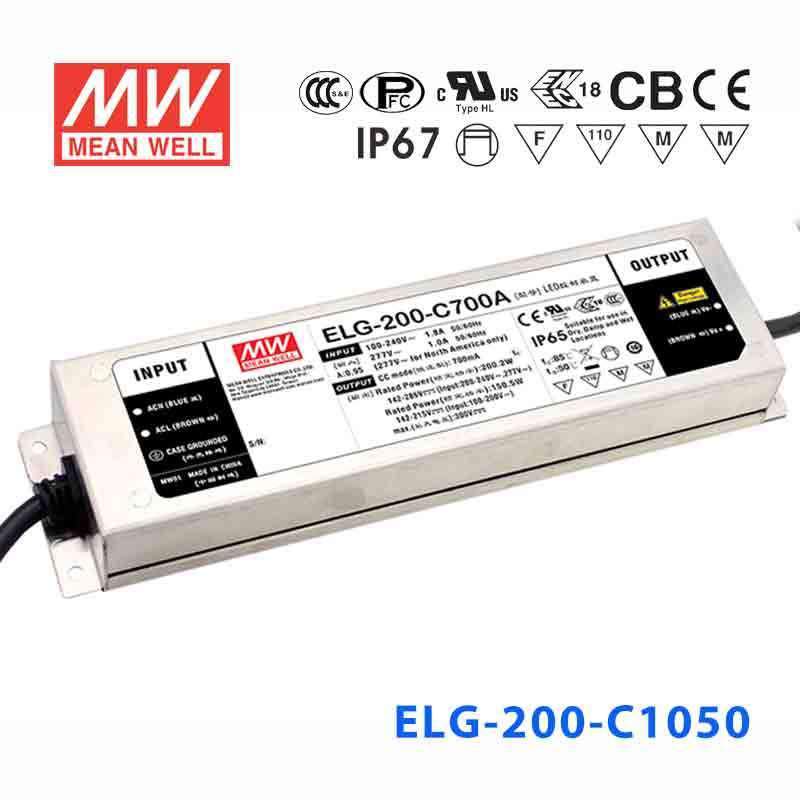

Mean Well ELG-200-C1050AB Power Supply 200W 1050mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C1050AB Power Supply 200W 1050mA - Adjustable and...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage200 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can I use the ELG-200-C1050AB to drive LED downlights in a commercial lighting project?
Yes. The ELG-200-C1050AB operates as a constant current driver at 1050mA, making it well-suited for LED downlight arrays where consistent current is required. Its 199.5W capacity and CC voltage range of 95–190V can accommodate a series string of LEDs as long as their combined forward voltage falls within that range.
Is the ELG-200-C1050AB suitable for outdoor signage or architectural LED modules?
It is rated IP65 (water-resistant), so it can handle rain splash and dust ingress, making it appropriate for semi-exposed outdoor signage cabinets or covered architectural installations. For fully submerged or high-pressure wash-down environments, a higher IP rating would be needed.
Can this driver power LED modules in a cold-storage or outdoor environment with extreme temperatures?
Yes. The ELG-200-C1050AB is rated for operation from -40°C to +85°C, so it handles both deep-freeze cold-storage facilities and hot outdoor enclosures within that range. The metal case also aids in heat dissipation.
How many LEDs can I connect to the ELG-200-C1050AB in series?
The driver operates over a CC voltage range of 95–190V. The number of LEDs you can connect in series depends on the forward voltage of each individual LED; you need the combined forward voltage of all series LEDs to fall within that 95–190V window.
Does the ELG-200-C1050AB support dimming, and what dimming methods are available?
Yes. The 'AB' suffix indicates both output current adjustment (potentiometer trim) and built-in dimming capability. Consult the Mean Well datasheet for the specific dimming interface supported by this variant.
Can I use this driver with a universal input supply, such as in a facility that has both 120V and 277V branch circuits?
Yes. The ELG-200-C1050AB accepts 100–305VAC input, covering standard 120V, 208V, 240V, and 277V North American circuits as well as 220–240V European mains without any manual range switching.
