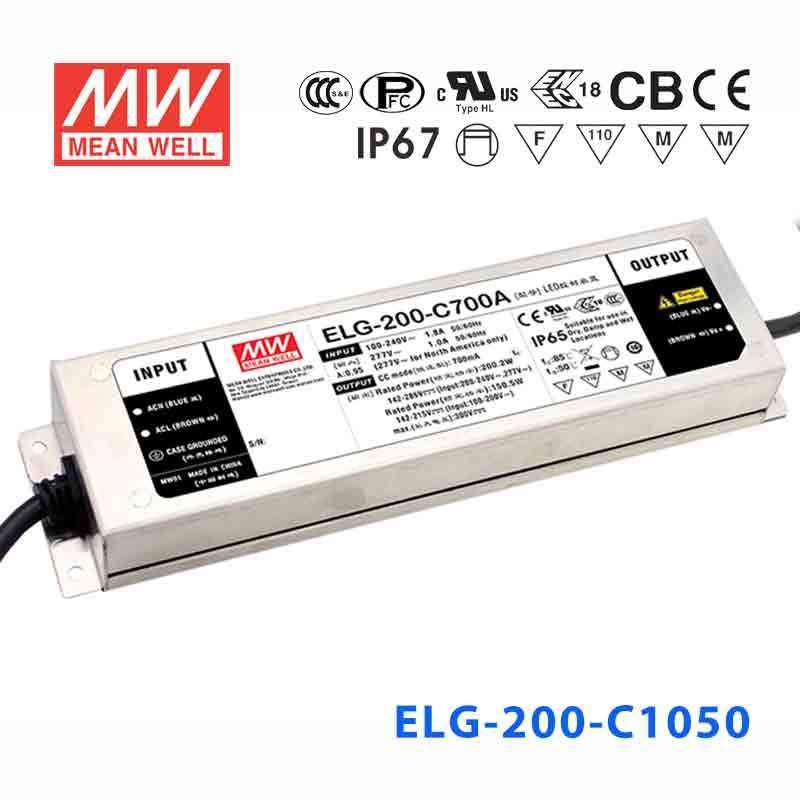

Mean Well ELG-200-C1050B Power Supply 200W 1050mA - Dimmable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage200 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1050B be used to drive LED modules in a wet outdoor location?
Yes. The ELG-200-C1050B carries an IP67 waterproof rating, meaning it can withstand temporary immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor LED signage, landscape lighting enclosures, and similar damp or wet locations.
Is this driver appropriate for powering LED downlights in a commercial interior with dimming control?
Yes. The 'B' suffix indicates the ELG-200-C1050B includes dimming capability. At 199.5W and 1050mA constant current output, it can drive a series string of LED downlight modules whose combined forward voltage falls within the 95–190V CC range.
What is the difference between the ELG-200-C1050AB and the ELG-200-C1050B?
Both are 199.5W constant current drivers at 1050mA with identical mechanical dimensions and IP67 ratings. The key distinction is that the 'AB' variant adds output current adjustment (trim pot) in addition to dimming, while the 'B' variant provides dimming only without the adjustment trim.
How many LEDs can I connect in series to the ELG-200-C1050B?
The CC voltage range is 95–190V. The total number of LEDs you can string in series depends on the forward voltage of each LED model; all series-connected LEDs must have a combined forward voltage within 95–190V for the driver to regulate correctly.
Can the ELG-200-C1050B operate in unheated outdoor enclosures in cold climates?
Yes. This driver is rated for -40°C to +85°C, so it will start and operate reliably in sub-zero conditions typical of cold-climate outdoor installations. The IP67-rated metal enclosure also prevents moisture ingress.
Is the ELG-200-C1050B certified for use in North American and European installations?
Yes. It holds c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL certifications, covering compliance requirements in the USA, Canada, the EU, Australia, and other markets. Always verify the specific certification requirement for your jurisdiction.
