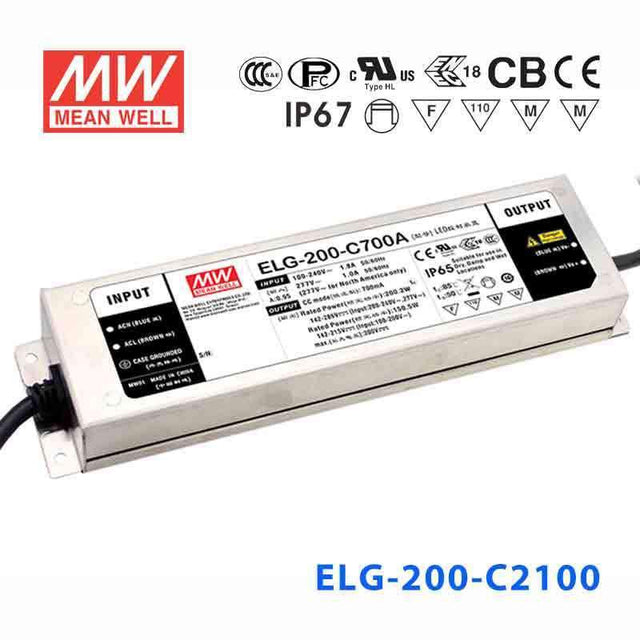

Mean Well ELG-200-C2100 Power Supply 200W 2100mA
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating201.6 Watt
-
Output Voltage105 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C2100 power LED downlights in a covered parking structure?
Yes. The ELG-200-C2100 is rated IP67, so it tolerates the moisture, dust, and exhaust contamination typical of parking structures. At 201.6W and 2100mA constant current, it can supply multiple high-output LED downlight fixtures within a CC voltage range of 48–96V.
Is this driver appropriate for outdoor LED sports or area lighting?
Yes. With IP67 waterproof protection, an operating range of -40°C to +85°C, and a wide 100–305VAC input, the ELG-200-C2100 suits LED area and sports lighting fixtures mounted on poles or masts exposed to outdoor weather conditions.
Can I use the ELG-200-C2100 for LED industrial high-bay fixtures in a warehouse?
Yes. The 201.6W output at 2100mA makes this driver appropriate for driving LED arrays in high-bay industrial luminaires. The IP67 rating also handles the dust and occasional water hosing common in warehouse and manufacturing environments.
How does the constant current output of the ELG-200-C2100 affect LED string sizing?
The ELG-200-C2100 holds the output current at 2100mA while the voltage self-adjusts within 48–96V to match the connected LED load. The number of LEDs in the series string depends on each LED's forward voltage; the combined string voltage must fall within the 48–96V CC range.
Can the ELG-200-C2100 be installed in an unenclosed outdoor location without a separate housing?
The ELG-200-C2100 carries an IP67 rating, which qualifies it for temporary water immersion up to 1 meter for 30 minutes and full dust exclusion. It can be surface-mounted in sheltered outdoor locations, though for fully exposed, long-term outdoor installations a separate weatherproof enclosure is still recommended practice.
What is the difference between the ELG-200-C2100 and the ELG-200-C1750 within the same power class?
The ELG-200-C2100 outputs 201.6W at 2100mA with a CC voltage range of 48–96V. The ELG-200-C1750 outputs 199.5W at 1750mA with a CC voltage range of 57–114V. The C2100 delivers higher current for lower-voltage LED strings, while the C1750 suits LED strings that operate at a higher combined forward voltage.
