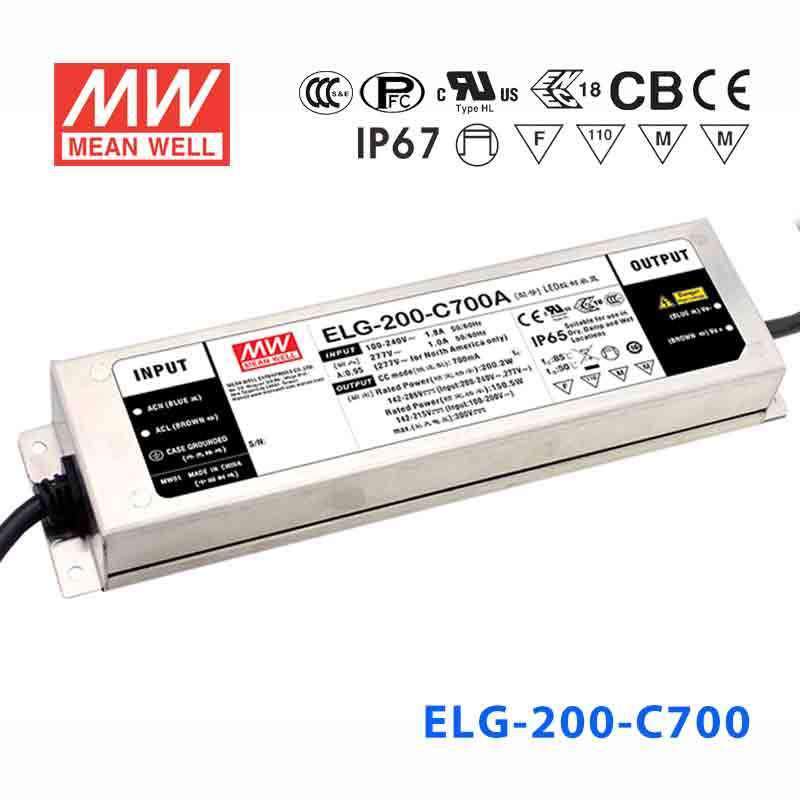

Mean Well ELG-200-C700 Power Supply 200W 700mA
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating200.2 Watt
-
Output Voltage300 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C700 drive a long series string of LED modules for outdoor signage or linear lighting?
Yes. The ELG-200-C700 is a constant current driver with a CC voltage range of 142–286V, which is one of the widest ranges in the ELG-200 constant current family. This high-voltage range is well suited to long series strings of LED modules used in large illuminated signs or extended linear architectural lighting.
Is the ELG-200-C700 suitable for LED tube or linear module arrays in outdoor channel letters?
Yes. The 700mA constant current output and 142–286V CC range accommodate series strings of LED modules or discrete LEDs used in channel letter sign construction. The IP67 waterproof rating allows installation inside outdoor sign housings exposed to weather.
Can the ELG-200-C700 be used for LED lighting in outdoor architectural or landscape installations?
Yes. With IP67 waterproof protection, an operating temperature range of -40°C to +85°C, and a wide 100–305VAC input, this driver is suitable for outdoor landscape, pathway, and architectural lighting fixtures. The 200.2W total output at 700mA supports high-power series LED strings in these applications.
How many LEDs can be connected in series to the ELG-200-C700?
The ELG-200-C700 has a CC voltage range of 142–286V. The number of LEDs per series string depends on the forward voltage of each individual LED; strings must be sized so the total combined forward voltage falls within 142–286V. The driver will regulate the current at 700mA across that voltage window.
What distinguishes the ELG-200-C700 from the ELG-200-C2100 within the 200W constant current range?
The ELG-200-C700 outputs 200.2W at 700mA with a CC voltage range of 142–286V, making it suited for long, high-voltage LED strings. The ELG-200-C2100 outputs 201.6W at 2100mA with a CC voltage range of 48–96V, better matching shorter, lower-voltage LED strings that require higher drive current. Both share IP67 protection and the same physical dimensions.
Can the ELG-200-C700 be installed in an outdoor enclosure without additional weatherproofing?
The ELG-200-C700 carries an IP67 rating, which provides complete dust exclusion and protection against temporary water immersion to 1 meter. It can be installed in outdoor luminaire housings or sign enclosures exposed to rain; for completely open or submerged environments, additional sealing precautions should still be considered.
