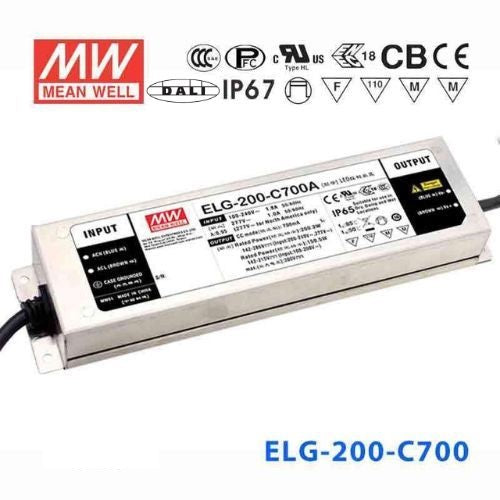

Mean Well ELG-200-C700DA Power Supply 200W 700mA - DALI
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating200.2 Watt
-
Output Voltage300 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C700DA be integrated into a DALI lighting control system for commercial LED downlights?
Yes. The 'DA' suffix indicates native DALI dimming support, making this driver directly compatible with DALI bus controllers and building management systems that use DALI for luminaire control. At 200.2W and 700mA constant current, it can drive a full downlight array under digital DALI commands.
Is the ELG-200-C700DA suitable for large LED signage installations managed by a DALI controller?
Yes. The ELG-200-C700DA's DALI interface allows precise digital brightness control of LED signage modules connected in series. Its 142–286V CC voltage range accommodates strings of high-voltage LED modules, and the IP67 waterproof rating permits outdoor or semi-exposed sign cabinet installations.
Can the ELG-200-C700DA drive LED arrays in a smart building or IoT lighting infrastructure?
The DALI protocol on this driver enables integration with smart building lighting networks that use DALI as the control bus. Each driver can be individually addressed, grouped, and dimmed through the DALI controller. The 100–305VAC input range and -40°C to +85°C operating range support diverse installation environments.
What LED loads are compatible with the ELG-200-C700DA?
The ELG-200-C700DA outputs a constant 700mA with a CC voltage range of 142–286V. LED loads in a series string must present a combined forward voltage within 142–286V at 700mA. The number of individual LEDs that fit depends on the forward voltage of each LED — this varies by LED type and cannot be stated as a fixed number.
How does the ELG-200-C700DA differ from the ELG-200-C700B in terms of dimming and protection?
Both the ELG-200-C700B and ELG-200-C700DA are rated IP67, share 200.2W output, and output 700mA constant current. The ELG-200-C700B uses analog (0–10V or PWM) dimming, while the ELG-200-C700DA uses the DALI digital dimming protocol. Choose based on whether your control infrastructure uses analog signals or a DALI bus.
Can the ELG-200-C700DA be installed outdoors or in washdown areas?
Yes. The IP67 rating allows temporary water immersion up to 1 meter, making the driver suitable for outdoor luminaires, wet-rated enclosures, and areas subject to washdown. The -40°C to +85°C operating range supports cold outdoor climates as well as high-ambient indoor environments.
