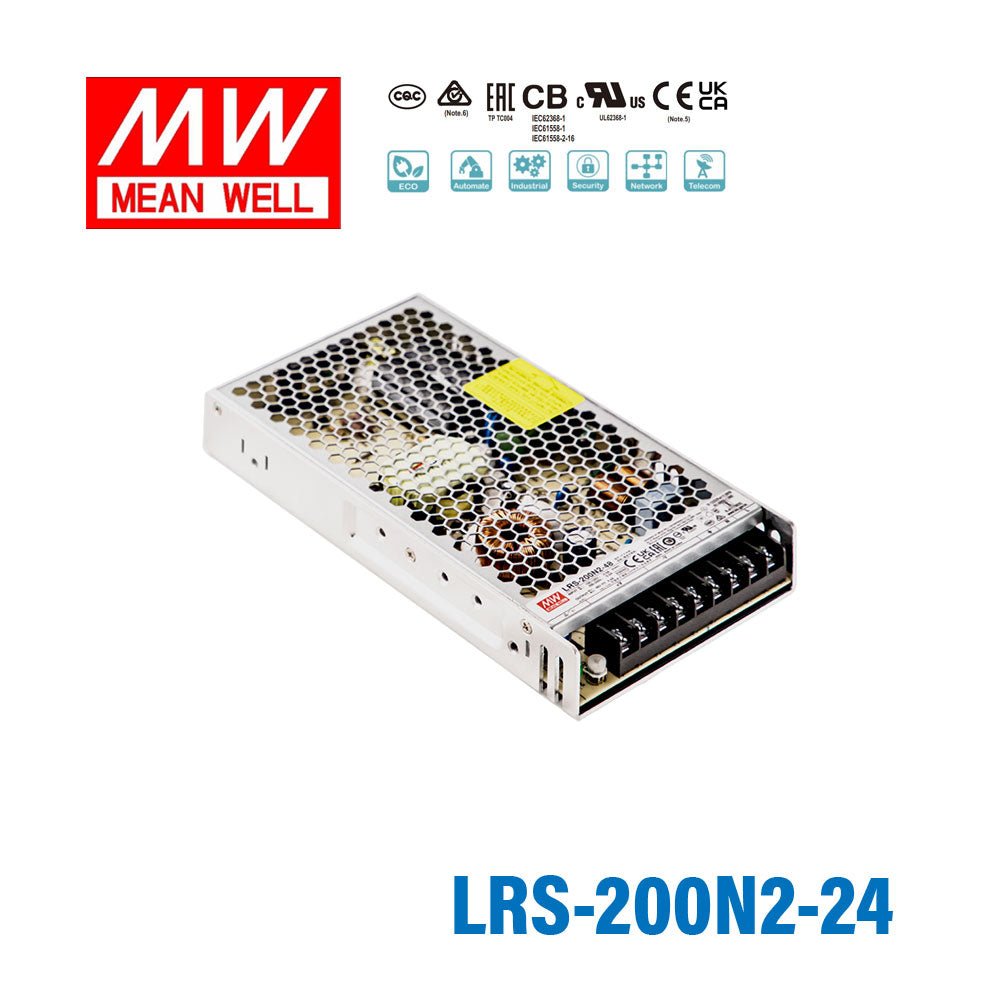

Mean Well LRS-200N2-24 Single Output High Peak Power Supply 211.2W 24V, 2 Times Peak Power
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-200N2-24 Single Output High Peak Power Supply 211.2W ...
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓LED indicator for power ON
- ✓No load power consumption<1W
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 70℃
- ✓Operating altitude up to 2000 meters
- ✓High efficiency, long life, and high reliability
- ✓3 years warranty
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating211.2 Watt
-
Output Voltage24 Volt
-
Rated Current8.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
What industrial systems is the LRS-200N2-24 designed to power?
The LRS-200N2-24 delivers 24V DC at 8.8A, the standard control bus voltage for PLCs, servo drives, multi-axis motion controllers, industrial HMIs, and pneumatic solenoid arrays. Its 211.2W output capacity handles high-density 24V panel loads without the need for parallel supplies.
Is the LRS-200N2-24 suitable for use in high-temperature environments?
The LRS-200N2-24 is rated for operation from -25°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-200N2-24 compare to other voltage options in the LRS-200N2 series?
The LRS-200N2 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-200N2-12: 204W, 12V, 17A; LRS-200N2-36: 212.4W, 36V, 5.9A; LRS-200N2-48: 211.2W, 48V, 4.4A. The LRS-200N2-24 itself is rated at 211.2W, 24V, 8.8A. All share the same universal input range of 90-264VAC and operating temperature of -25°C to +70°C.
Does the LRS-200N2-24 meet any vibration resistance requirements?
Yes, the LRS-200N2-24 is rated to withstand 5G vibration, making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors or mobile industrial platforms. It also operates continuously up to 70°C, covering most harsh industrial ambient conditions.
How do I determine if the LRS-200N2-24 has enough headroom for my load?
The LRS-200N2-24 is rated at 211.2W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 169W sustained draw. The 24V output at 8.8A gives the total current budget across all loads sharing this supply.
