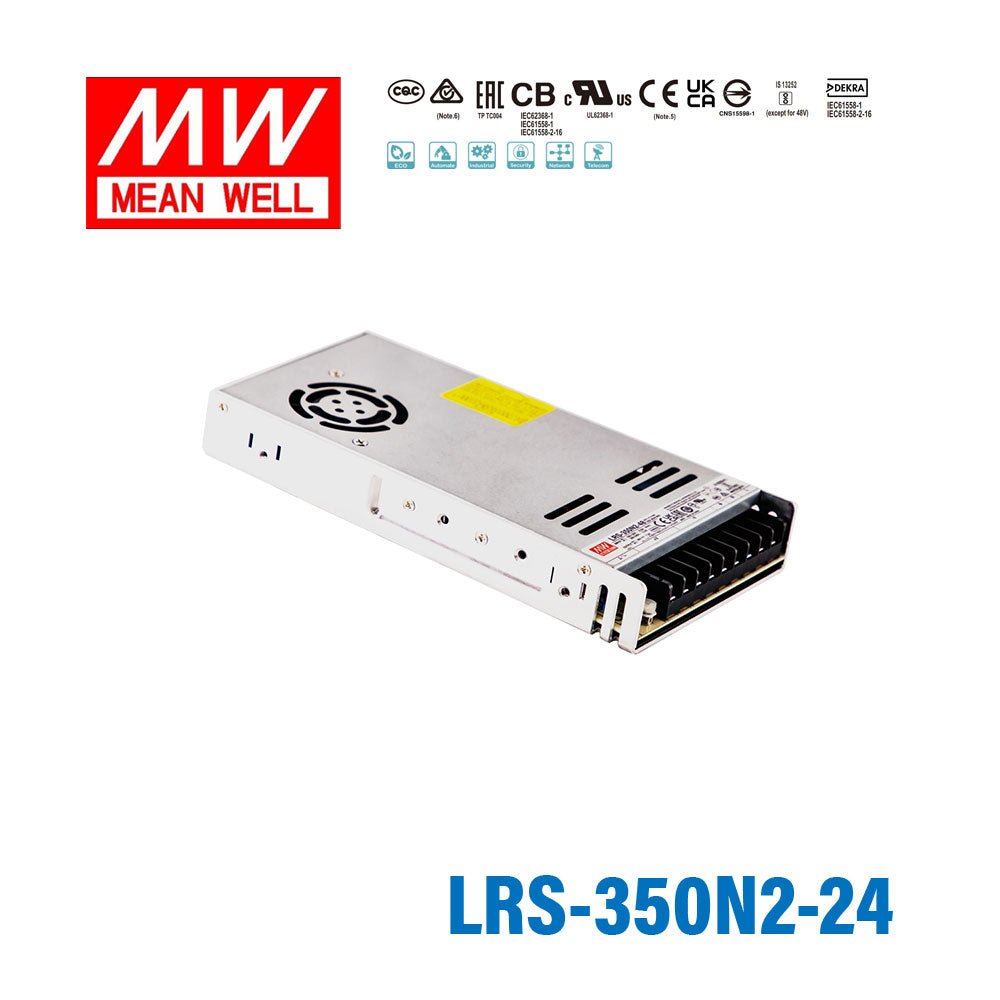

Mean Well LRS-350N2-24 Single Output High Peak Power Supply 350.4W 24V, 2 Times Peak Power
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-350N2-24 Single Output High Peak Power Supply 350.4W ...
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Forced air cooling by built-in DC fan
- ✓Built-in cooling Fan ON-OFF control
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓LED indicator for power ON
- ✓No load power consumption<1W
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 70℃
- ✓Operating altitude up to 2000 meters
- ✓High efficiency, long life, and high reliability
- ✓3 years warranty
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.68 lb
::specification::
Frequently Asked Questions
What types of equipment benefit from the LRS-350N2-24's peak power capability at 24V?
The LRS-350N2-24 outputs 24V at 14.6A (350.4W) with up to 200% peak power, making it well-matched for 24V stepper motor controllers, solenoid valves, and pneumatic actuator systems that pull high current at engagement but run at lower steady-state loads. The peak capability absorbs inrush without triggering protection.
How does the LRS-350N2-24 differ from the standard LRS-350-24?
Both supply 24V at 14.6A (350.4W) with identical 215 × 115 × 30 mm dimensions and 0.76 kg weight. The LRS-350N2-24 adds 200% peak power support for transient loads; the LRS-350-24 does not. Both accept 90–264VAC input and carry CB, CE, CQC, EAC, TÜV, and UL certifications.
What is the operating temperature range of the LRS-350N2-24?
The LRS-350N2-24 operates from -25°C to +70°C, supporting full-rated output across that range. The 5G vibration rating makes it suitable for industrial panels that experience mechanical shock or vibration in service.
Is 24V a common bus voltage for industrial automation, and does this supply meet those standards?
24VDC is the most prevalent control voltage in IEC-standard industrial automation, used for sensors, actuators, PLCs, and HMI panels. The LRS-350N2-24 holds CB, CE, CQC, EAC, TÜV, and UL certifications, satisfying the safety and compliance requirements typical of industrial control panel designs.
How does the LRS-350N2-24 compare across the LRS-350N2 family?
All four LRS-350N2 models share the 215 × 115 × 30 mm footprint, 0.76 kg weight, and 200% peak power feature. LRS-350N2-12: 348W, 29A. LRS-350N2-24: 350.4W, 14.6A. LRS-350N2-36: 349.2W, 9.7A. LRS-350N2-48: 350.4W, 7.3A. Select by the DC voltage level required by the connected equipment.
