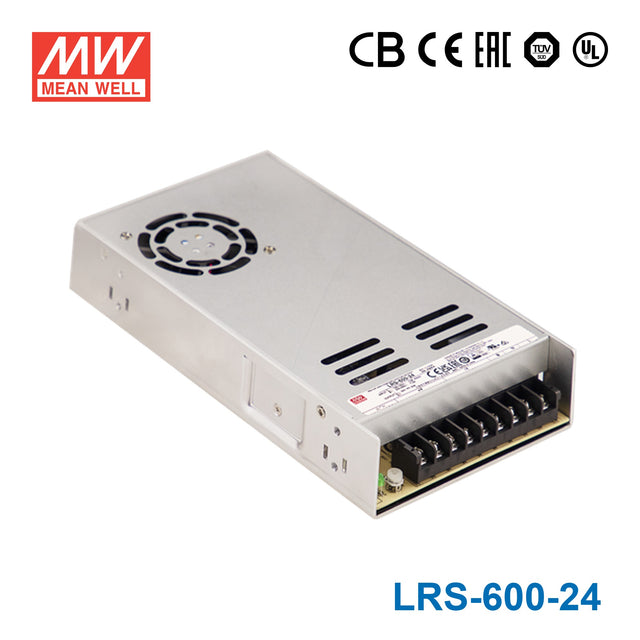

Mean Well LRS-600-24 Power Supply 600W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-600-24 Power Supply 600W 24V
The Mean Well LRS-600-24 is a 600W single output enclosed switching power supply delivering 24VDC at 25A. Its 1U low-profile design (225×124×41mm) with forced air cooling and fan ON/OFF control makes it ideal for space-constrained industrial installations. With up to 91%% efficiency and a wide −20°C to +65°C operating range, it suits automation, control systems, and electronic equipment.
Key Features
- ✓600W single output, 24VDC, 25A
- ✓90~132VAC / 180~264VAC selectable input by switch
- ✓High efficiency up to 91%%
- ✓1U low profile, 225×124×41mm, forced air cooling
- ✓Fan ON/OFF control (fan on ≥50°C, off ≤40°C)
- ✓Short circuit / overload / over voltage / over temperature protection
- ✓Withstand 300VAC surge input for 5 seconds, 5G vibration test
- ✓Operating temperature −20°C to +65°C, altitude up to 5000m
- ✓CB, CE, CQC, EAC, TÜV, UL certified
- ✓3-year warranty, MTBF >1KK hrs
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LRS-600 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-600-12 Power Supply 600W 12V | 600W | 12V | 50A | Indoor | $59.98 | View |
| Mean Well LRS-600-48 Power Supply 600W 48V | 600W | 48V | 12.5A | Indoor | $59.98 | View |
| Mean Well LRS-600-27 Power Supply 599W 27V | 599.4W | 27V | 22.2A | Indoor | $59.98 | View |
| Mean Well LRS-600-5 Power Supply 500W 5V | 500W | 5V | 100A | Indoor | $59.98 | View |
| Mean Well LRS-600-36 Power Supply 597W 36V | 597.6W | 36V | 16.6A | Indoor | $59.98 | View |
| Mean Well LRS-600-15 Power Supply 600W 15V | 600W | 15V | 40A | Indoor | $59.98 | View |
