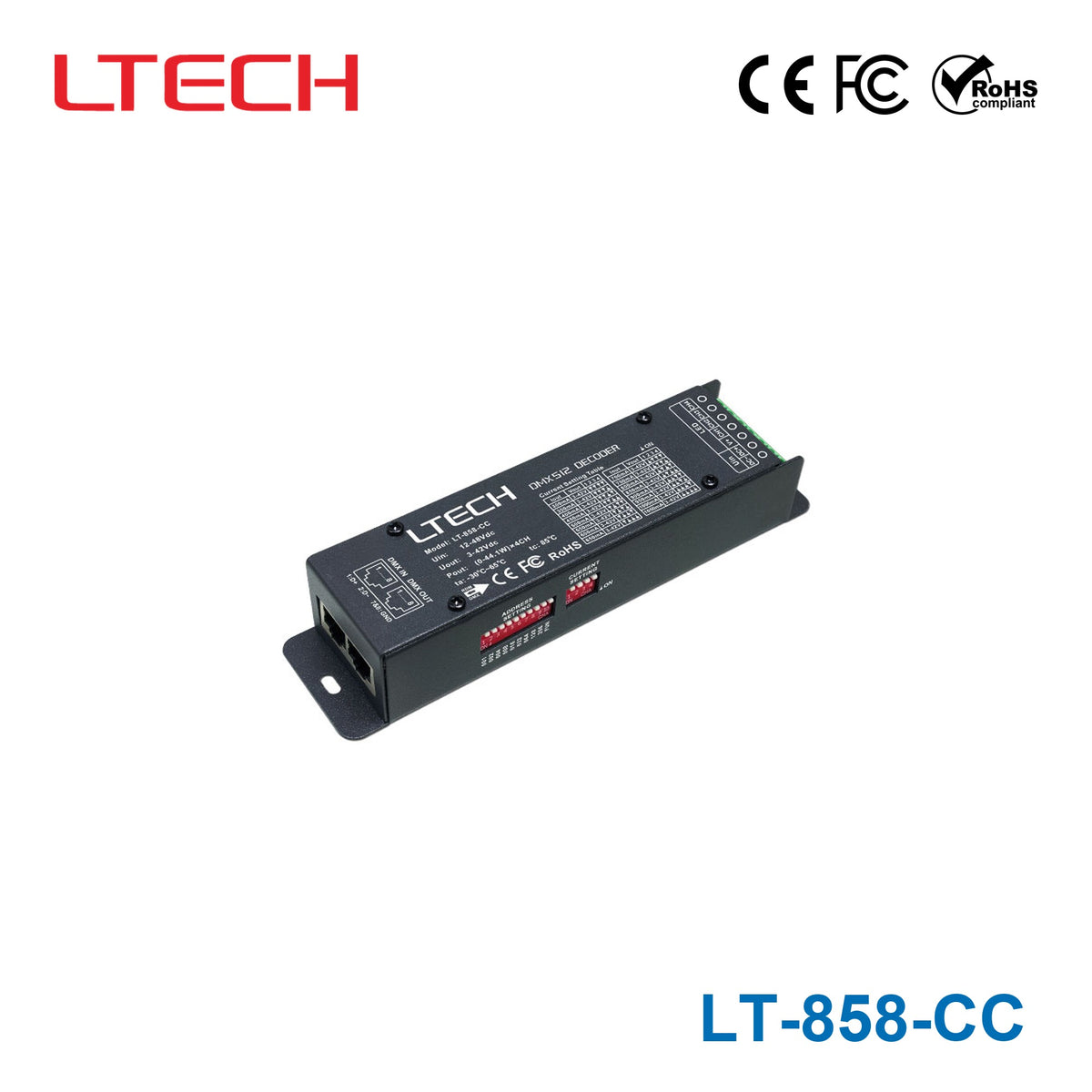

Ltech LT-858-CC Constant Current Decoder - DMX/RDM
The LT-858-CC is a constant current decoder designed for DMX lighting control applications. It supports 0-100% dimming and can be used with single color, bi-color, RGB, or RGBW LED lamps in professional lighting projects.
Input 12~48VDC. 4 channel. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~48VDC
- ✓Control protocol: DMX, RDM
- ✓Output signal: DMX Signal, PWM, RDM Signal
- ✓Output channels: 4 Channel
- ✓Maximum total load: 193.2W
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 175 x 42 x 33mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating193.2 Watt
-
Output Voltage46 Volt
-
Rated Current1.05 Ampere
-
Input Voltage12V~48V
-
No of Output4
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.65 in
-
Height1.3 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What is the Ltech LT-858-CC used for?
The LT-858-CC is a constant current decoder designed for DMX lighting control applications. It supports 0-100% dimming and can be used with single color, bi-color, RGB, or RGBW LED lamps in professional lighting projects.
Does the LT-858-CC support RDM in addition to DMX512?
Yes. This model supports both DMX512 and the standard RDM remote device management protocol, allowing bi-directional communication when the DMX master controller recognizes RDM. That makes it a stronger option for projects that require remote address reading and writing support.
What kinds of LED fixtures is the LT-858-CC compatible with?
According to the product data, the LT-858-CC works with single color, bi-color, RGB, and RGBW LED lamps. That gives it flexibility across a range of architectural, commercial, and custom lighting applications.
What are the main electrical specifications of the LT-858-CC?
This decoder is rated for 193.2 W of power, with an output voltage of 46 V and a rated current of 1.05 A. These published specs are useful for matching the unit to the requirements of the LED lighting system it is intended to control.
Is the LT-858-CC suitable for demanding commercial environments?
It is built for a wide operating temperature range from -30°C to 65°C, which supports use in a variety of indoor or protected project environments. The product also carries a 5-year warranty, which is relevant for commercial buyers looking for longer-term reliability.
Why choose the LT-858-CC over a basic DMX-only decoder?
The main differentiator is its support for both DMX512 and RDM. If your control system uses RDM-capable management, the LT-858-CC offers added remote management functionality beyond standard one-way DMX control.
