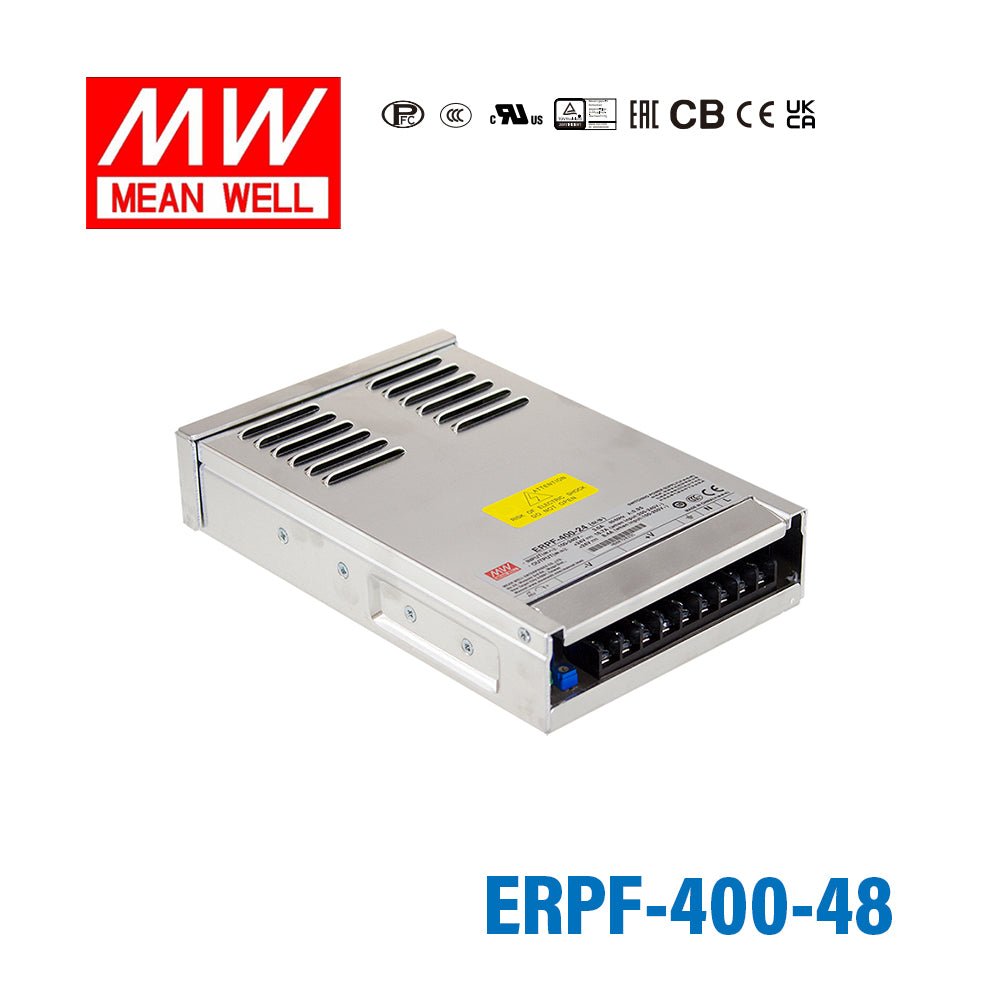

Mean Well ERPF-400-48 Switching Power Supply 400W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ERPF-400-48 Switching Power Supply 400W 48V
Features:
⦁ Universal AC input / Full range
⦁ (Withstand 300VAC surge input for 5 seconds)
⦁ Built-in active PFC function
⦁ High efficiency up to 91%
⦁ Design against rain splash
⦁ Protections: Short circuit / Overload / Over voltage/
⦁ Over temperature
⦁ Cooling by free air convection
⦁ LED indicator for power on
⦁ Low cost,high reliability
⦁ 100% full load burn-in test
⦁ 3 years warranty
General Specification:
Input Voltage
90 - 264VAC 127 - 370VDC
Inrush Current
cold start 45A/115VAC, 90A/230VAC
Over Load Protection
105 - 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Short Circuit Protection
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection
(13.8 - 16.2V) (27.6 - 32.4V) (55.2 - 64.8V)
Protection type :Shut down O/P voltage, re-power on to recover
Over Temperature Protection
Shut down O/P voltage, recovers automatically after temperature goes down
Withstand Voltage
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Operating Temperature
-30 - +60℃ (Refer to output load derating curve)
Safety Standard
UL60950-1,IEC/BS EN/EN62368-1, GB 4943.1, EAC TP TC 004, IS13252(Part1)(for 12,24 only) approved
Dimension (LxWxH)
220.4 x 130 x 48mm
-
BrandMean Well
-
SeriesMean Well ERPF Series
-
Power Rating398.4 Watt
-
Output Voltage48 Volt
-
Rated Current8.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length8.68 in
-
Width5.12 in
-
Height1.89 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well ERPF-400-48?
The ERPF-400-48 is rated for 48V DC output with a rated current of 8.3A. Its power rating is 398.4W, so it is typically marketed as a 400W power supply.
What input voltage range does the ERPF-400-48 support?
This model accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. It is designed for full-range input operation and can withstand a 300VAC surge input for 5 seconds.
Is the ERPF-400-48 suitable for security and enclosed power supply applications?
Yes, this model is positioned for enclosed AC-DC and security-related power supply applications. Its 48V output, built-in protections, and high-power enclosed design make it suitable for commercial and industrial use where a regulated 48V supply is needed.
How does the ERPF-400-48 perform in demanding temperature environments?
The ERPF-400-48 has an operating temperature range of -30°C to +60°C, subject to the output load derating curve. It also includes over-temperature protection that shuts down output voltage and recovers automatically after the temperature drops.
What protection features are included in the ERPF-400-48?
This power supply includes short circuit, overload, over-voltage, and over-temperature protection. Short circuit and overload protection use constant current limiting with automatic recovery, while over-voltage protection shuts down the output and requires re-powering to recover.
What are the efficiency and cooling characteristics of this model?
The ERPF-400-48 offers efficiency up to 91%, which helps reduce wasted energy in continuous-duty operation. It is cooled by free air convection, so it is designed to operate without relying on forced-air fan cooling.
What certifications and warranty does the ERPF-400-48 have?
The ERPF-400-48 is approved to standards including UL60950-1, IEC/BS EN/EN62368-1, GB 4943.1, and EAC TP TC 004. It is backed by a 3-year warranty from Mean Well.
