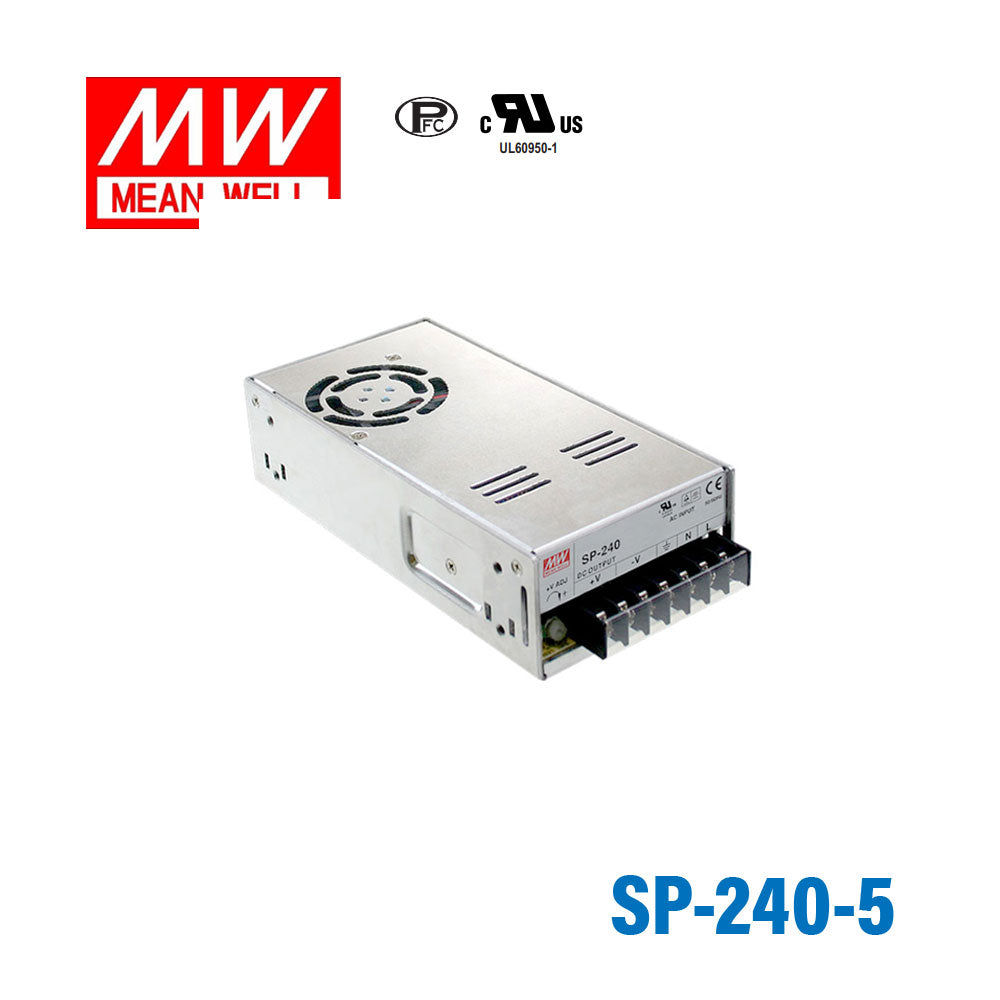

Mean Well SP-240-5 Power Supply 240W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SP-240-5 Power Supply 240W 5V
The SP-240 is a 240W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMI CONDUCTION & RADIATION HARMONIC CURRENT EMS IMMUNITY MTBF OTHERS DIMENSION UL60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating240 Watt
-
Output Voltage5 Volt
-
Rated Current45 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.48 in
-
Width3.66 in
-
Height1.97 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the SP-240-5 for a 5V industrial control system with a high current draw?
Yes, this model is intended for 5V DC loads and can deliver up to 45A with a 240W power rating. It is a fit for industrial or automation equipment that specifically requires a regulated 5V supply and higher current capacity than smaller 5V units.
Is the SP-240-5 suitable for powering multiple 5V embedded devices from one supply?
It can be used where the combined load stays within 240W and 45A at 5V. That makes it relevant for consolidated 5V embedded or IT hardware loads that need one higher-capacity constant DC source.
Can this 5V power supply be used for a high-density 5V LED or display system?
It can support 5V equipment where total demand fits within 240W and 45A. For buyers evaluating display, signage, or LED-related 5V loads, the key requirement is that the equipment must be designed for 5V operation.
Will the SP-240-5 work for 5V logic, controller, or processor-heavy equipment in an automation cabinet?
Yes, if the equipment requires 5V DC and the total load remains at or below 240W and 45A. That profile aligns with higher-current 5V controller, processor, or digital electronics loads used in industrial and embedded environments.
Is the SP-240-5 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -20°C to +70°C, but no IP rating is given. That means temperature capability is defined, while outdoor or washdown suitability should not be assumed from these specs alone.
How does the SP-240-5 compare with other SP series models near this size range?
Within the nearby SP family options listed, the SP-100-5 is 100W at 5V and 20A, the SP-150-5 is 99W, the SP-200-5 is 132W, the SP-240-5 is 240W at 5V and 45A, and the SP-480-5 is 280.5W. The main differences are output voltage, total wattage, and available current, with the SP-240-5 positioned as a higher-current 5V option than the smaller 5V siblings shown.
