Mean Well SP-480-15 Power Supply 480W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours

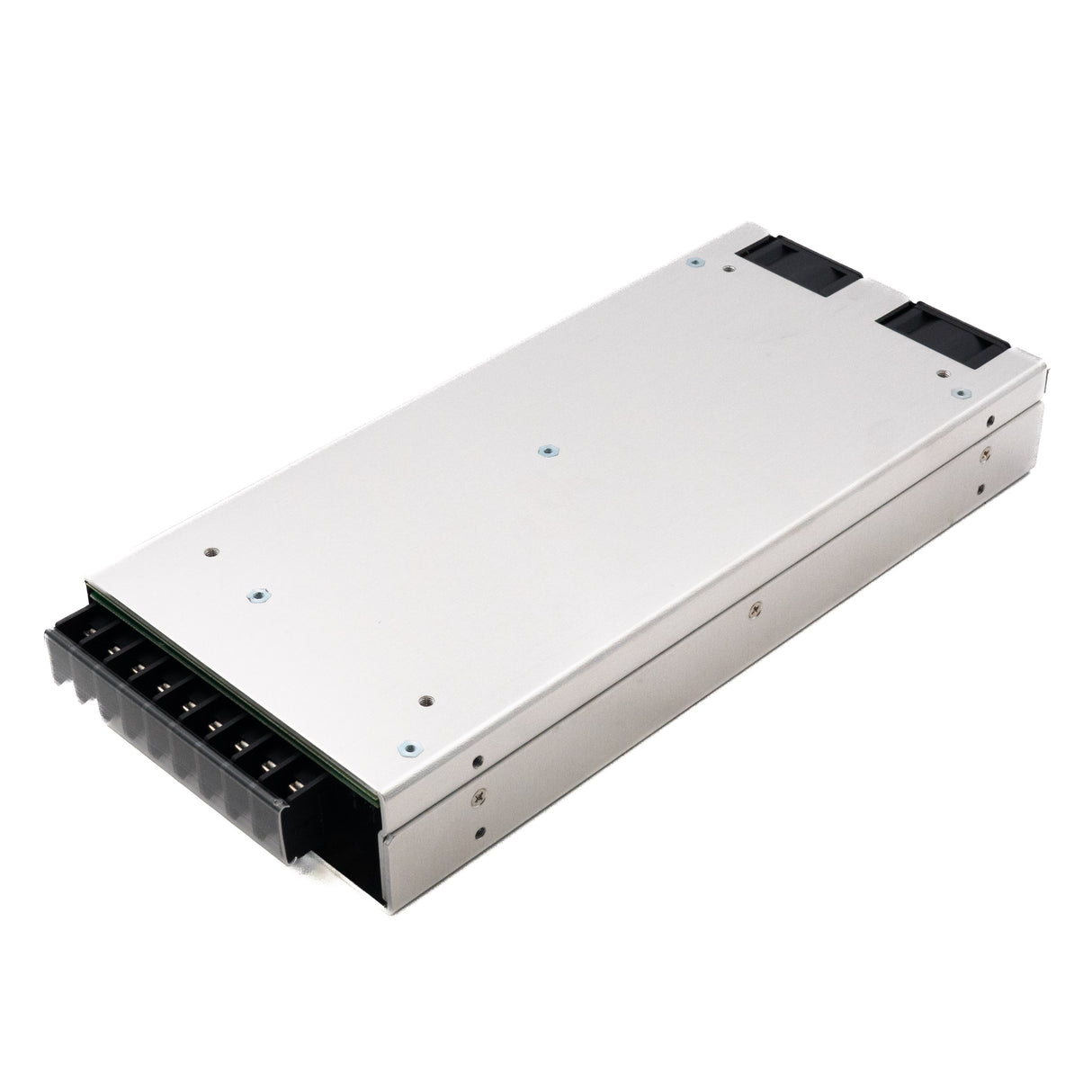

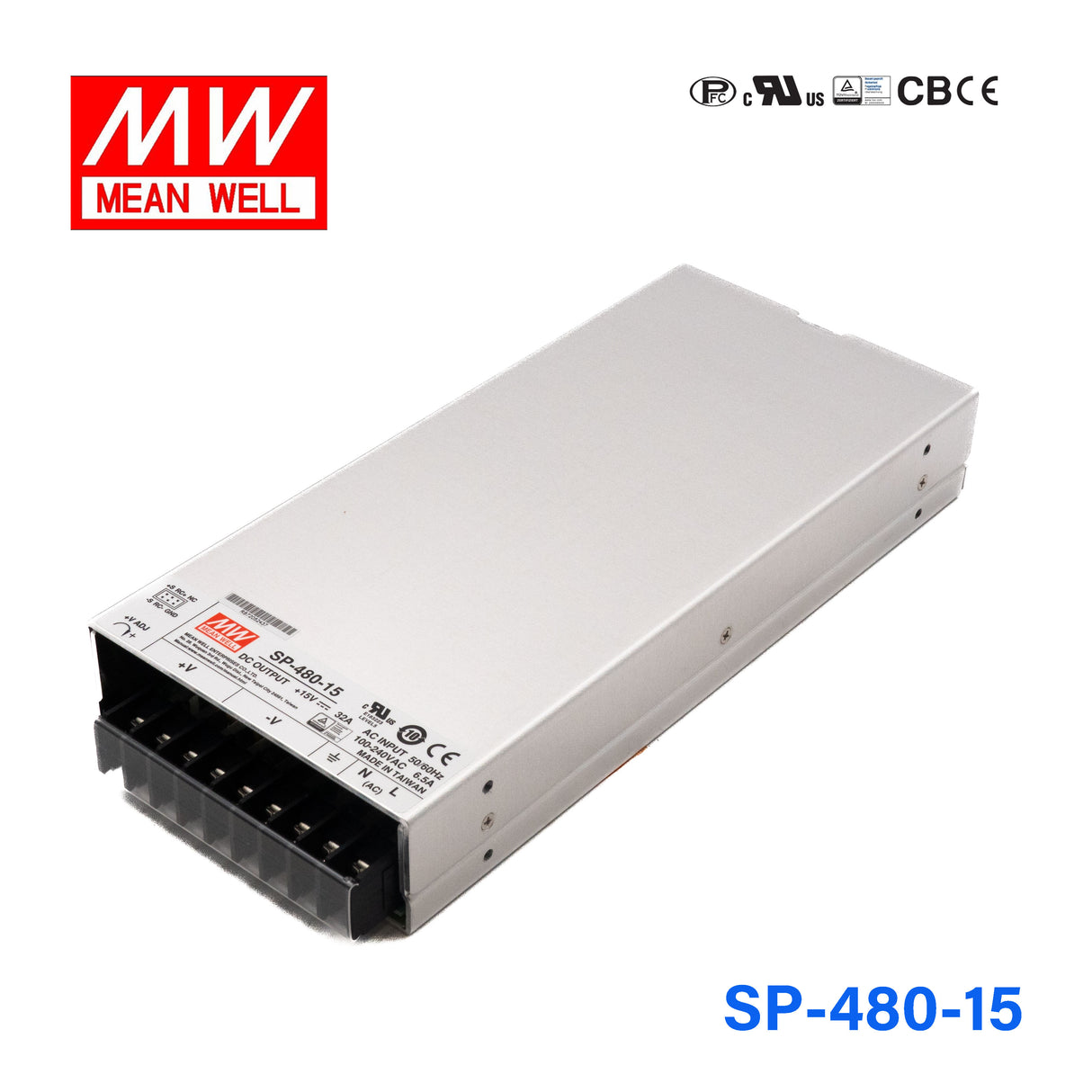

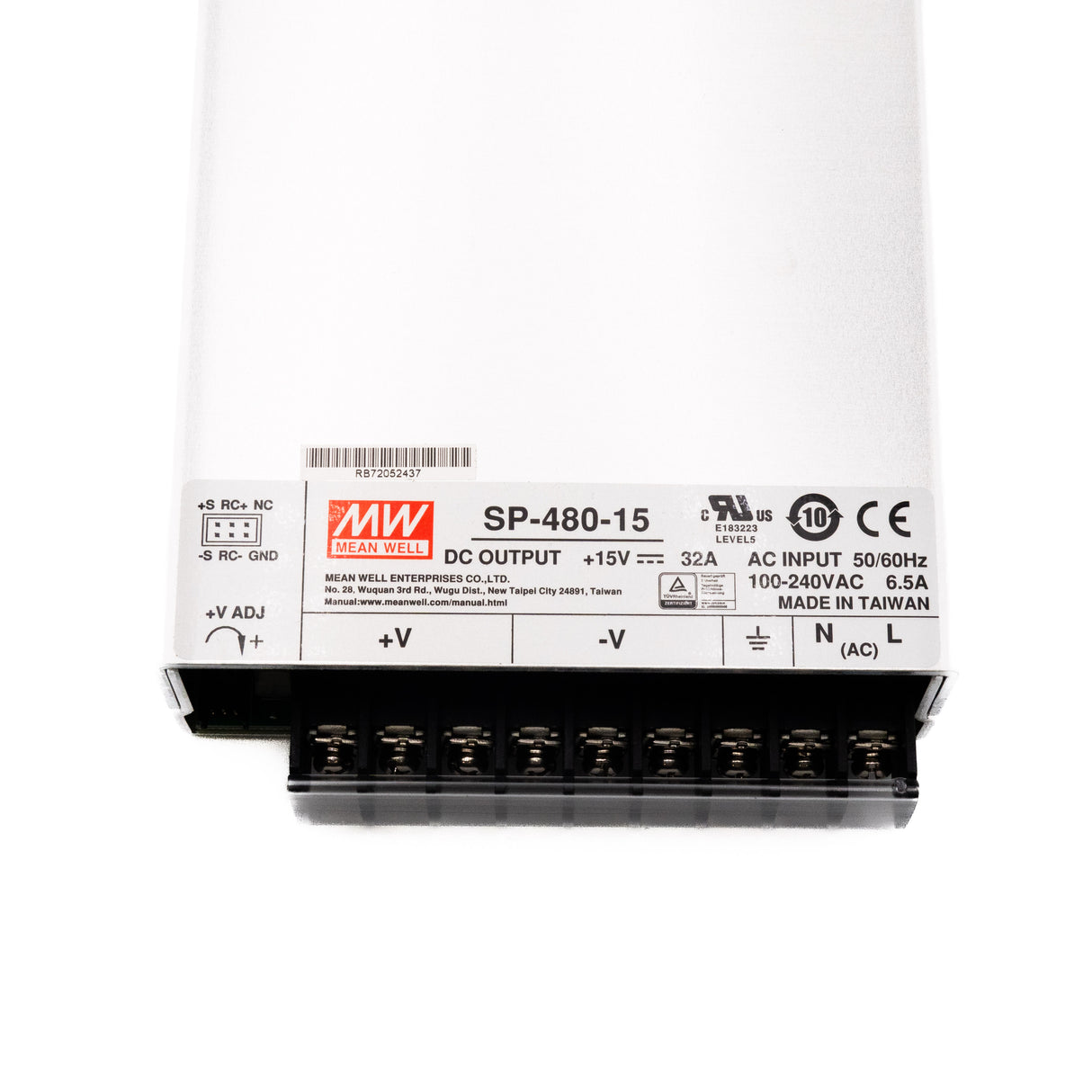

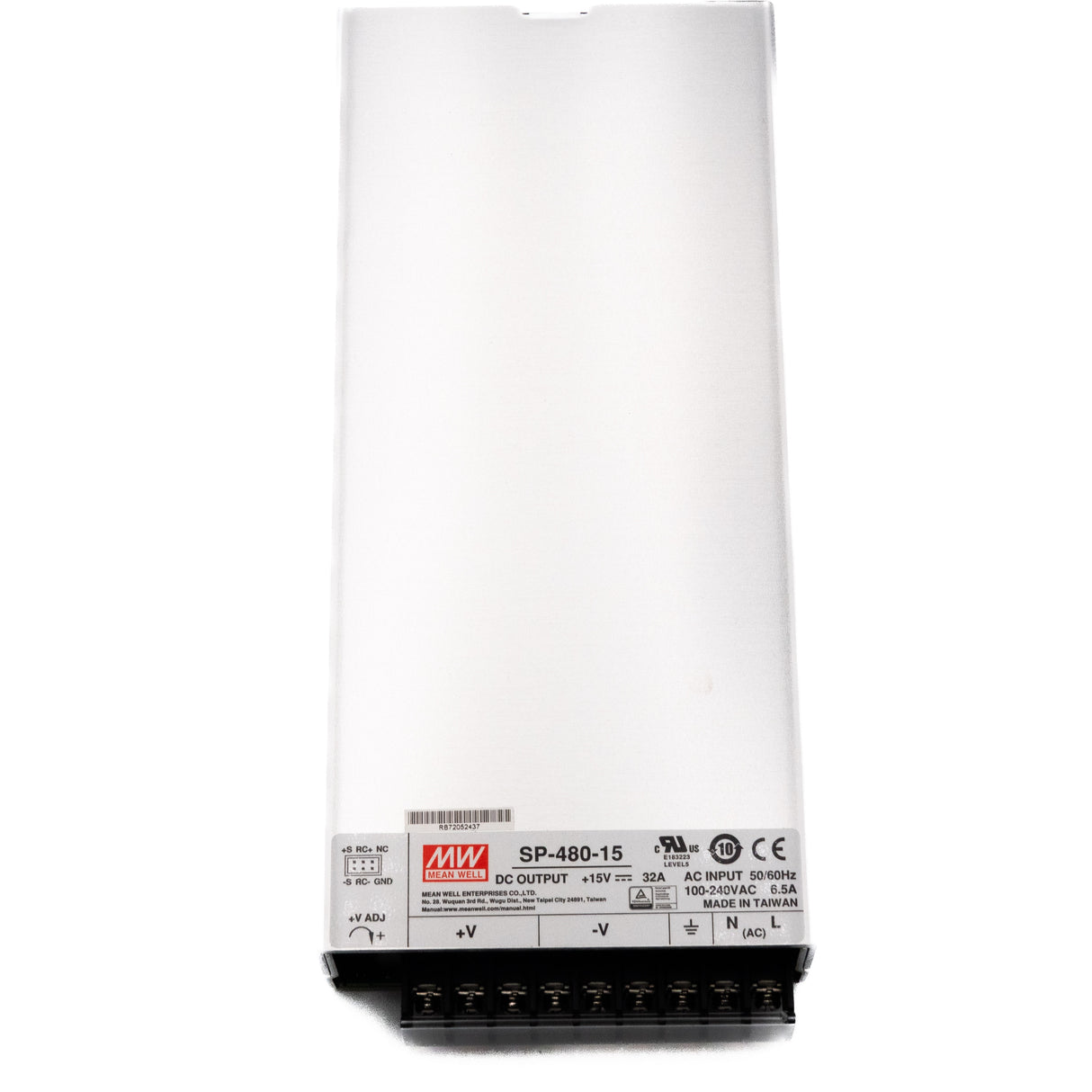

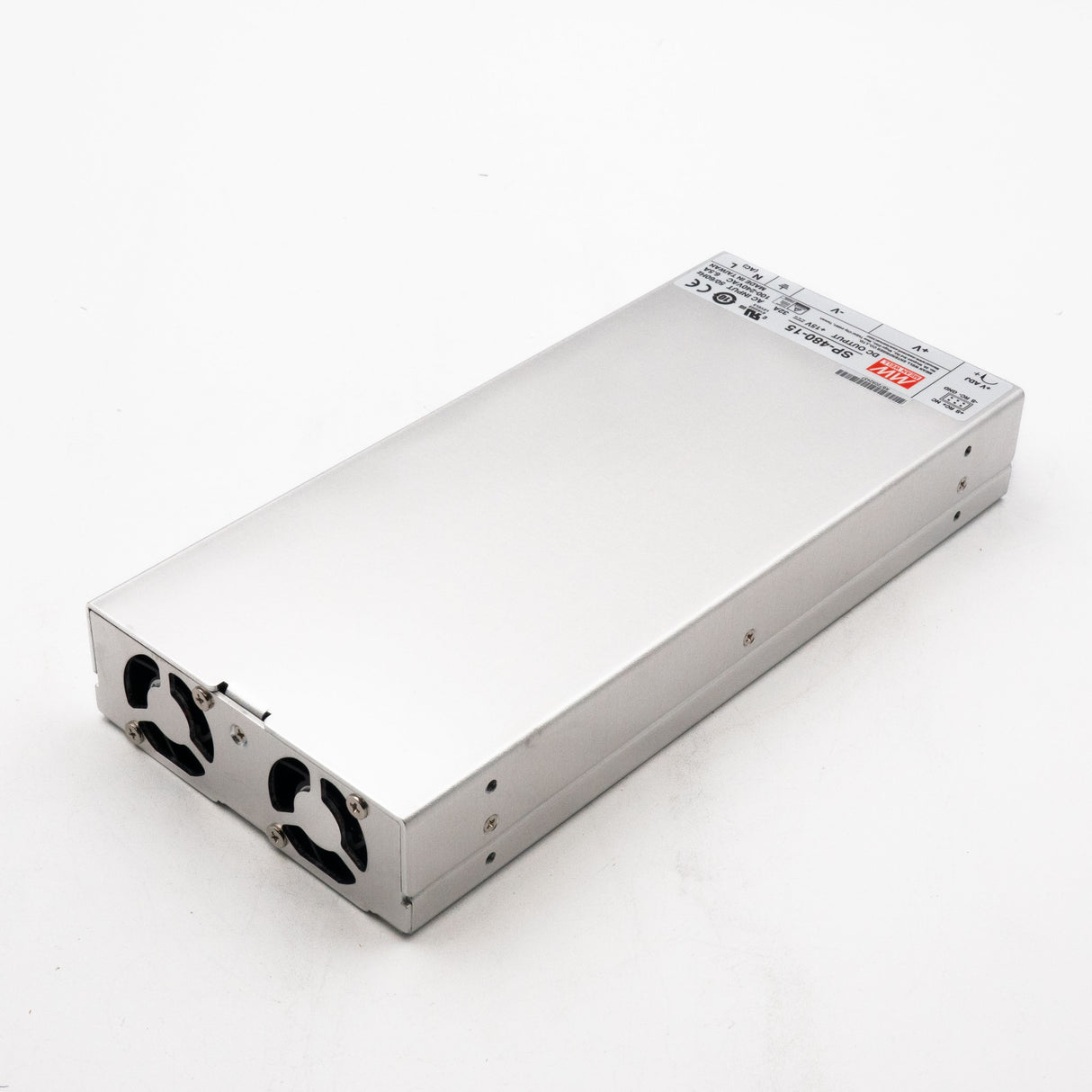

Mean Well SP-480-15 Power Supply 480W 15V
The SP-480 is a 480W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating480 Watt
-
Output Voltage15 Volt
-
Rated Current32 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length10.94 in
-
Width5 in
-
Height1.69 in
-
Weight3.75 lb
::specification::
Frequently Asked Questions
Can I use the SP-480-15 for a 15V industrial or automation power rail?
Yes, this model provides a single 15V output rated for 480W and 32A. It is suited to equipment that specifically requires a 15V DC supply at higher current.
Is the SP-480-15 a good fit for test benches or embedded systems that need stable 15V power?
It is appropriate for 15V DC systems that need up to 480W total output. With 32A available, it fits higher-demand 15V embedded, lab, or industrial electronic loads.
Can this unit power 15V devices used in industrial electronics or machine subsystems?
Yes, the SP-480-15 is built for single-output 15V applications and can deliver up to 32A. The 85-264VAC input range also supports use across a wide AC input range.
What environment is the SP-480-15 intended for?
The specified operating temperature range is -20°C to +60°C. No IP rating is provided in the listed specs, so the available data does not confirm outdoor or washdown use.
What are the differences between the SP-480-15 and the other SP-480 versions?
The SP-480-15 is rated at 480W, 15V, and 32A. Other SP-480 models listed are SP-480-12 at 480W, 12V, 40A; SP-480-24 at 480W, 24V, 20A; SP-480-3.3 at 480W, 3.3V, 85A; SP-480-48 at 480W, 48V, 10A; and SP-480-5 at 280.5W.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SP-480 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-480-48 Power Supply 480W 48V | 480W | 48V | 10A | Indoor | $118.60 | View |
| Mean Well SP-480-3.3 Power Supply 480W 3.3V | 480W | 3.3V | 85A | Indoor | $159.64 | View |
| Mean Well SP-480-24 Power Supply 480W 24V | 480W | 24V | 20A | Indoor | $118.60 | View |
| Mean Well SP-480-12 Power Supply 480W 12V | 480W | 12V | 40A | Indoor | $118.60 | View |
