Mean Well SP-480-24 Power Supply 480W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours

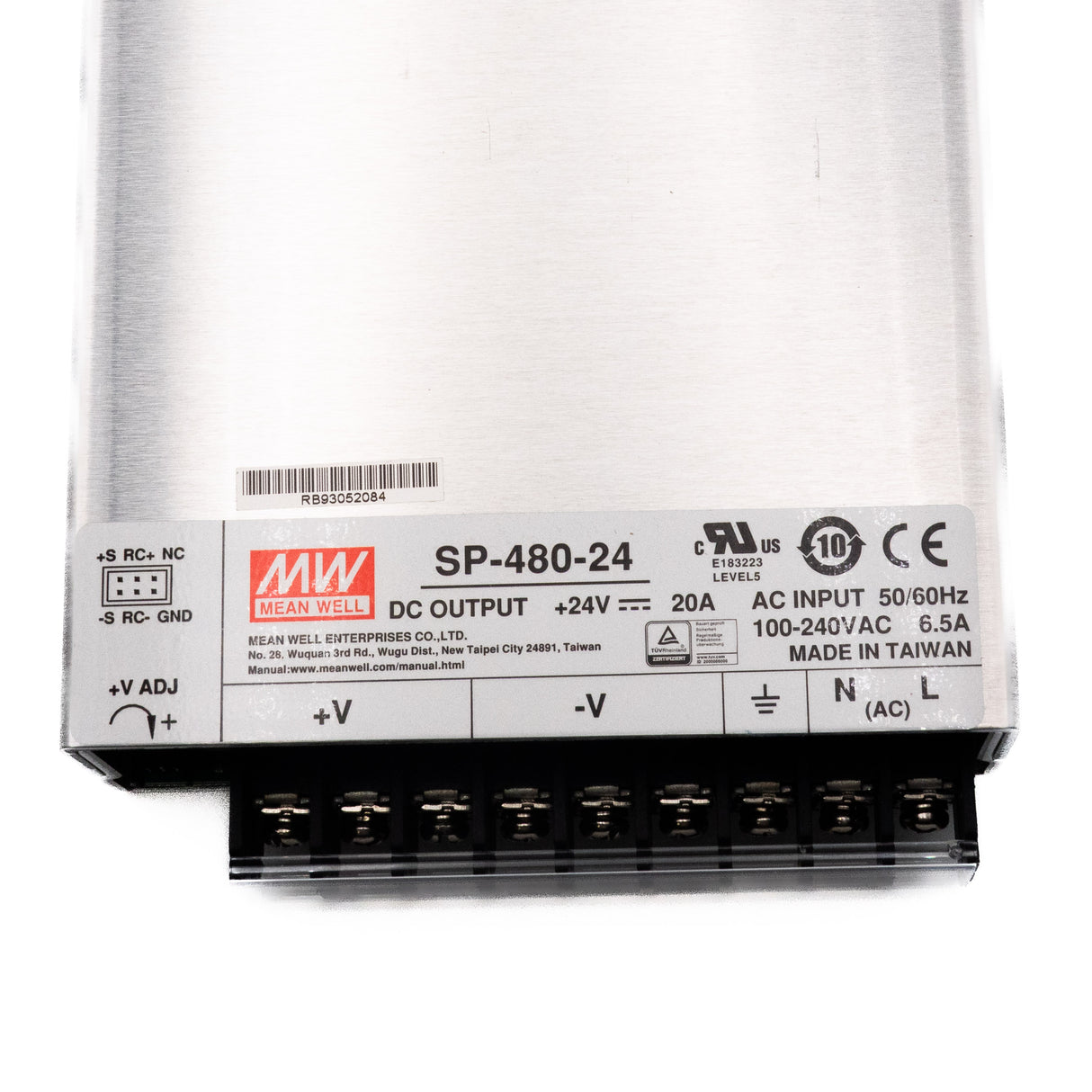

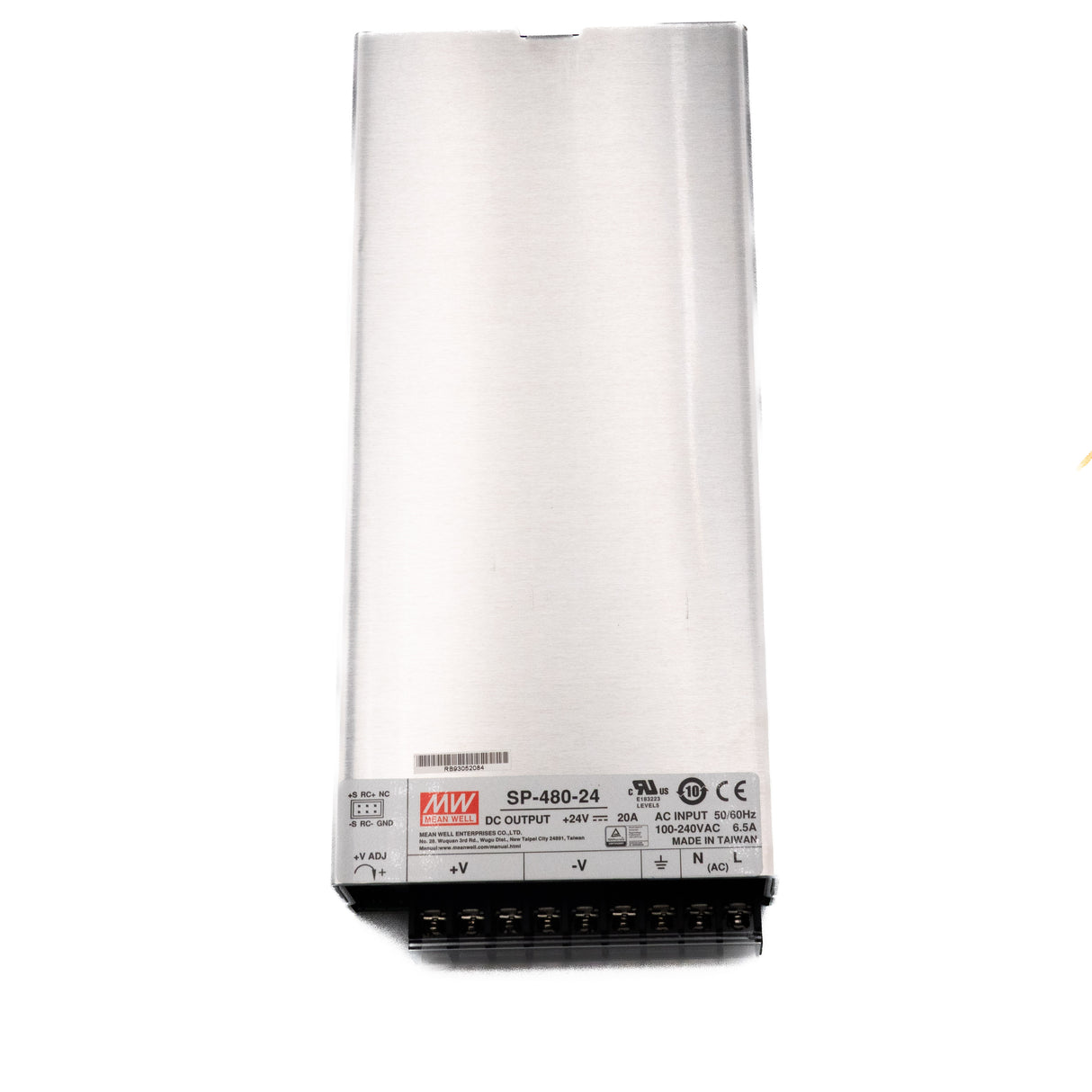

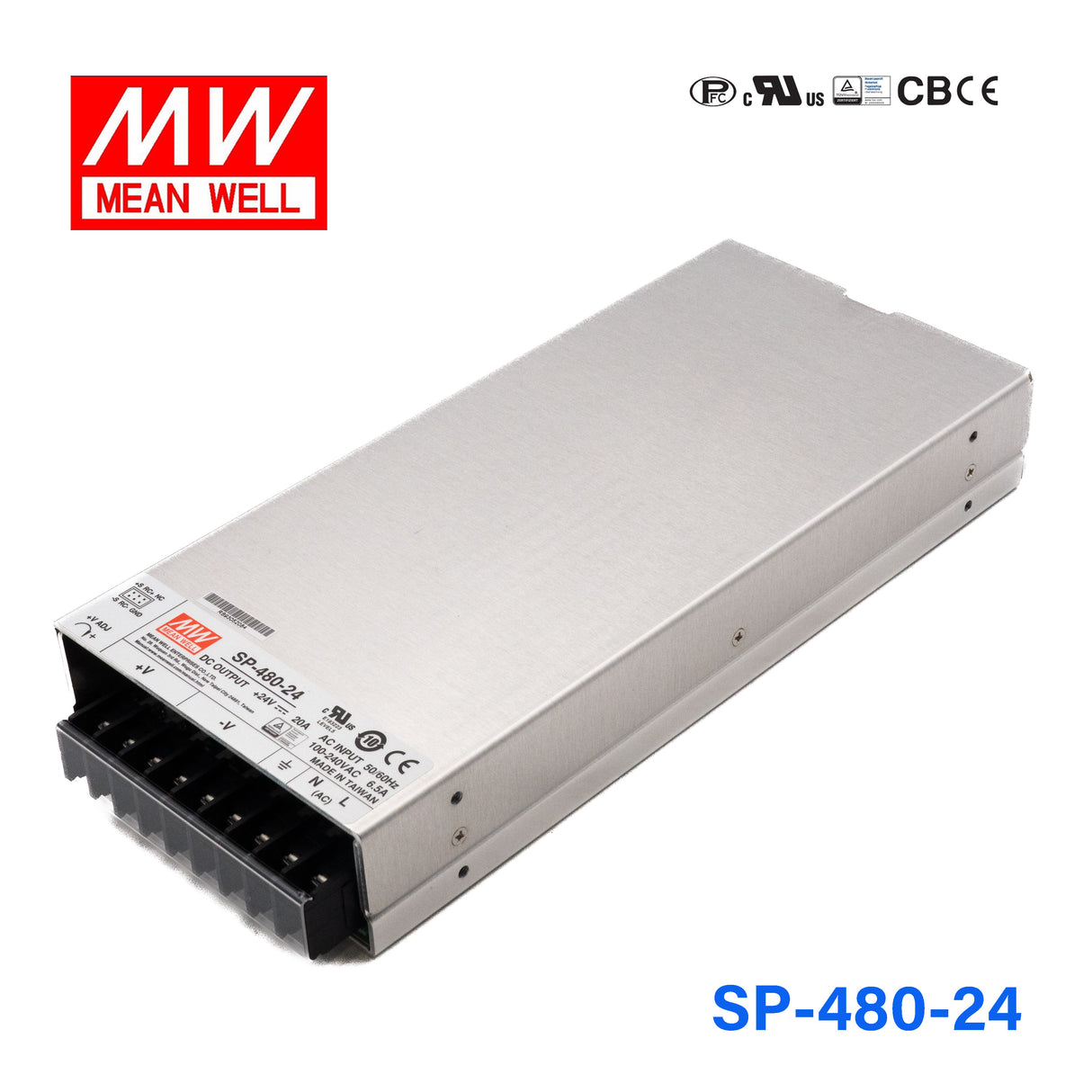

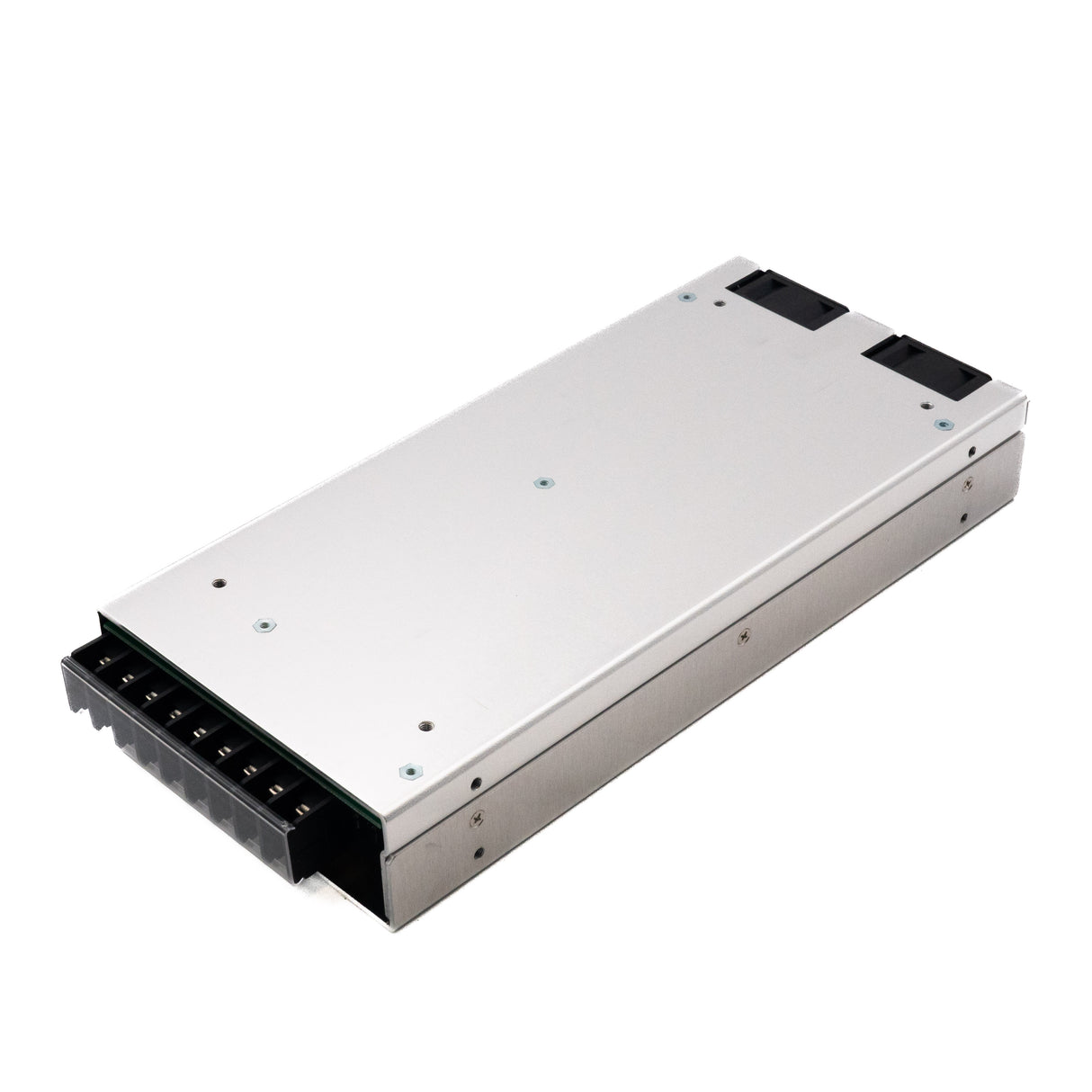

Mean Well SP-480-24 Power Supply 480W 24V
The SP-480 is a 480W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length10.94 in
-
Width5 in
-
Height1.69 in
-
Weight3.75 lb
::specification::
Frequently Asked Questions
Can I use the SP-480-24 for 24V automation and control equipment?
Yes, it provides a single 24V output rated for 480W and 20A. That matches industrial and automation systems designed around a 24V DC power rail.
Is the SP-480-24 suitable for 24V sensors, controllers, and industrial peripherals with higher total load?
It can support 24V DC loads up to 480W total and up to 20A output current. This makes it relevant for larger 24V systems with multiple devices on the same supply.
Can this power supply be used for 24V LED, display, or signage systems?
Yes, if the system is designed for 24V DC and stays within 480W and 20A, this model is a fit. It is a single-output 24V supply intended for higher-power DC applications.
Is the SP-480-24 meant for indoor or outdoor operating conditions?
The listed operating temperature range is -20°C to +60°C. The provided specs do not include an IP rating, so they do not document outdoor exposure protection.
How does the SP-480-24 differ from the other SP-480 family models?
The SP-480-24 is rated at 480W with a 24V output and 20A current. Other listed SP-480 models are SP-480-12 at 480W, 12V, 40A; SP-480-15 at 480W, 15V, 32A; SP-480-3.3 at 480W, 3.3V, 85A; SP-480-48 at 480W, 48V, 10A; and SP-480-5 at 280.5W.
