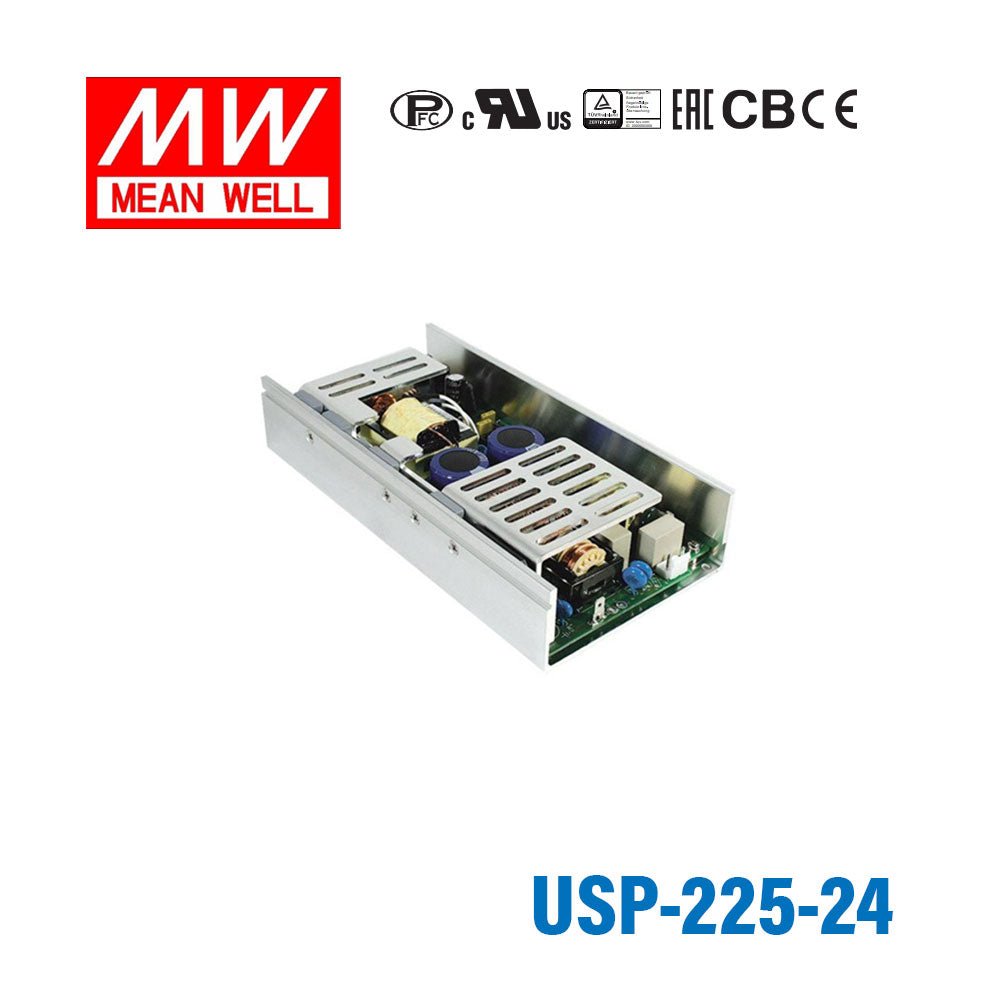

Mean Well USP-225-24 PFC Switching Power Supply
$40.43 USD
Unit price /
Unavailable
The USP-225 is a 225W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well USP Series
-
Power Rating225.6 Watt
-
Output Voltage24 Volt
-
Rated Current9.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CE,EN,UL
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length7.95 in
-
Width4 in
-
Height1.5 in
-
Weight1.87 lb
