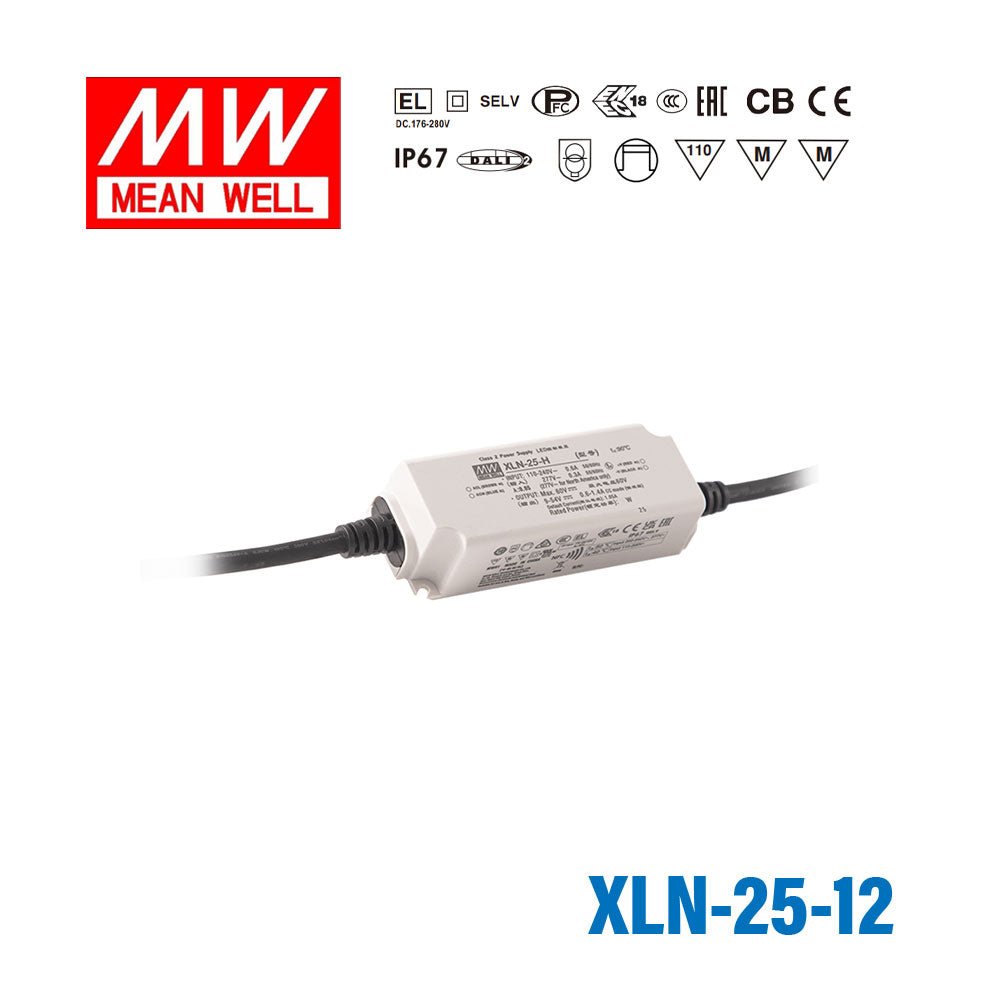

Mean Well XLN-25-12 LED Driver 25.2W 12V IP67
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating25.2 Watt
-
Output Voltage12 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length4.49 in
-
Width1.26 in
-
Height1.73 in
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XLN-25-12?
The XLN-25-12 is rated for 25.2W output power. It provides 12V DC output with a rated current of 2.1A.
Is the XLN-25-12 suitable for 12V LED lighting?
Yes, this model is a 12V constant-voltage LED driver. It is intended for LED applications that match its 12V output and 25.2W power rating.
Can the Mean Well XLN-25-12 be used in damp or outdoor environments?
The XLN-25-12 has an IP67 rating and is fully encapsulated. That rating indicates strong protection against dust and water ingress for suitable protected LED driver applications.
What operating temperature range does the XLN-25-12 support?
This LED driver is specified for operation from -25°C to 90°C. Buyers should confirm that the product page conditions and enclosure environment remain within that range.
Is the XLN-25-12 dimmable?
The provided product data lists this SKU with dimming control set to non-dimmable. If dimming is required, verify that you are selecting the correct XLN variant before purchasing.
How does the XLN-25-12 differ from a 24V LED driver?
The XLN-25-12 provides 12V output, while a 24V model is intended for 24V LED loads. Choose the driver voltage that matches the voltage requirement of the LED product being powered.
What warranty is provided for the Mean Well XLN-25-12?
The XLN-25-12 is listed with a 5-year warranty period. This makes it suitable for buyers who need a compact 12V LED driver with longer warranty coverage.
