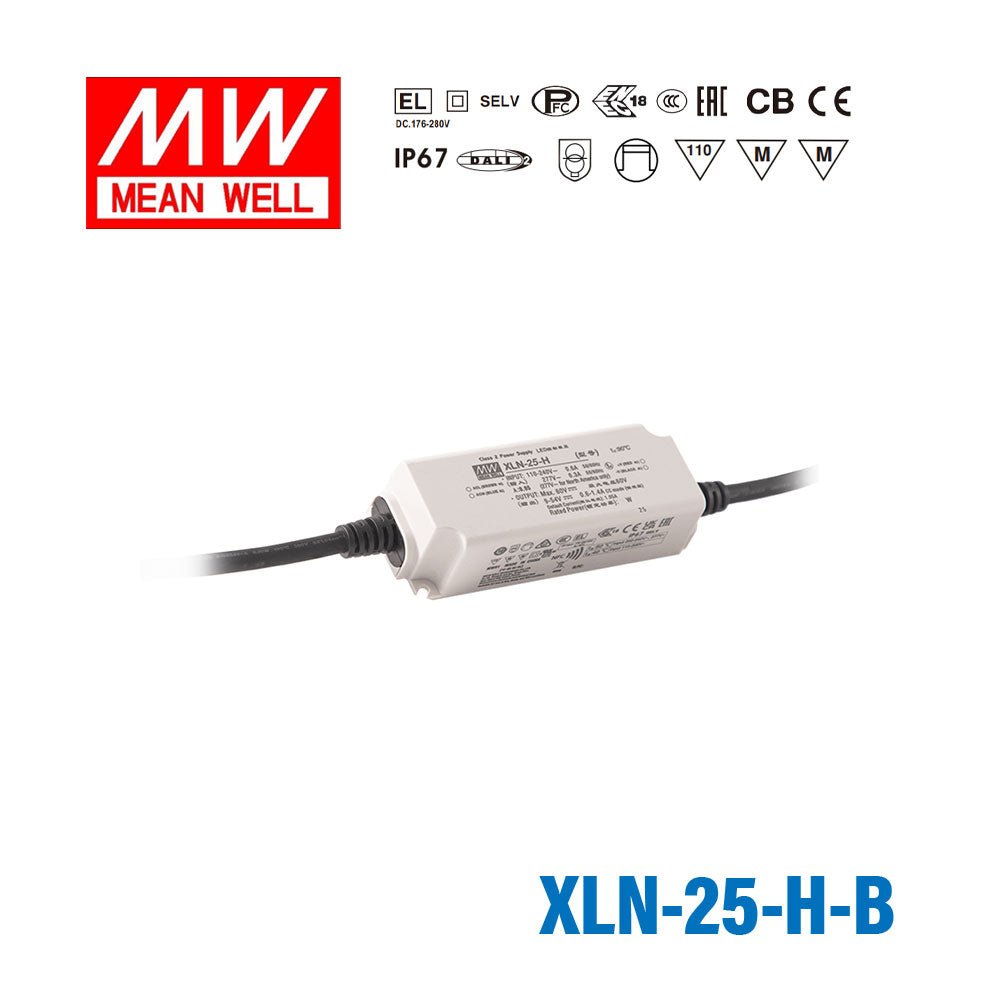

Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67...
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length4.49 in
-
Width1.26 in
-
Height1.73 in
::specification::
Frequently Asked Questions
What type of LED driver is the Mean Well XLN-25-H-B?
The XLN-25-H-B is a 25W AC/DC LED driver for constant current LED applications. This model is rated at 700mA and supports a listed output range of 9~54V in constant power mode.
Does the XLN-25-H-B support dimming?
Yes. The XLN-25-H-B supports 3 in 1 dimming, with listed control types including 0-10V, 1-10V, PWM, and resistance dimming. The product description also notes dim-to-off capability.
Is the XLN-25-H-B suitable for outdoor or damp environments?
The XLN-25-H-B is fully encapsulated and rated IP67. That rating makes it suitable for applications where a waterproof LED driver is required, within the product's specified environmental limits.
What operating temperature range does the XLN-25-H-B support?
This model lists an operating temperature range from -25°C to 90°C. Buyers should confirm the full datasheet conditions for their application, especially for enclosed or high-temperature installations.
What LED applications is the XLN-25-H-B commonly used for?
The XLN-25-H-B is intended for LED driver applications that need a 25W, 700mA constant current power source. Its IP67 rating, dimming support, and plastic Class II/2 housing make it relevant for commercial LED lighting projects where those features are required.
Does the XLN-25-H-B include NFC current setting?
Yes. The product name and description specify NFC current setting for this H-type model. The description also states that multiple output stages are selectable by NFC setting.
How is the XLN-25-H-B different from a basic non-dimming LED driver?
Compared with a basic non-dimming driver, the XLN-25-H-B adds 3 in 1 dimming support, dim-to-off functionality, NFC current setting, and an IP67 encapsulated design. It also lists flicker-free performance and compliance with IEEE1789/ErP.
What warranty period applies to the XLN-25-H-B?
The XLN-25-H-B lists a 5-year warranty period. This is useful for commercial and B2B lighting projects where long service life and documented warranty coverage are important purchasing factors.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLN-25 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting | 25W | 60V | 0.7A | IP67 | $39.49 | View |
| Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, NFC Current Setting | 25W | 60V | 0.7A | IP67 | $30.53 | View |
| Mean Well XLN-25-24 LED Driver 25.2W 24V IP67 | 25.2W | 24V | 1.05A | IP67 | $30.53 | View |
| Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 | 25.2W | 12V | 2.1A | IP67 | $30.53 | View |
