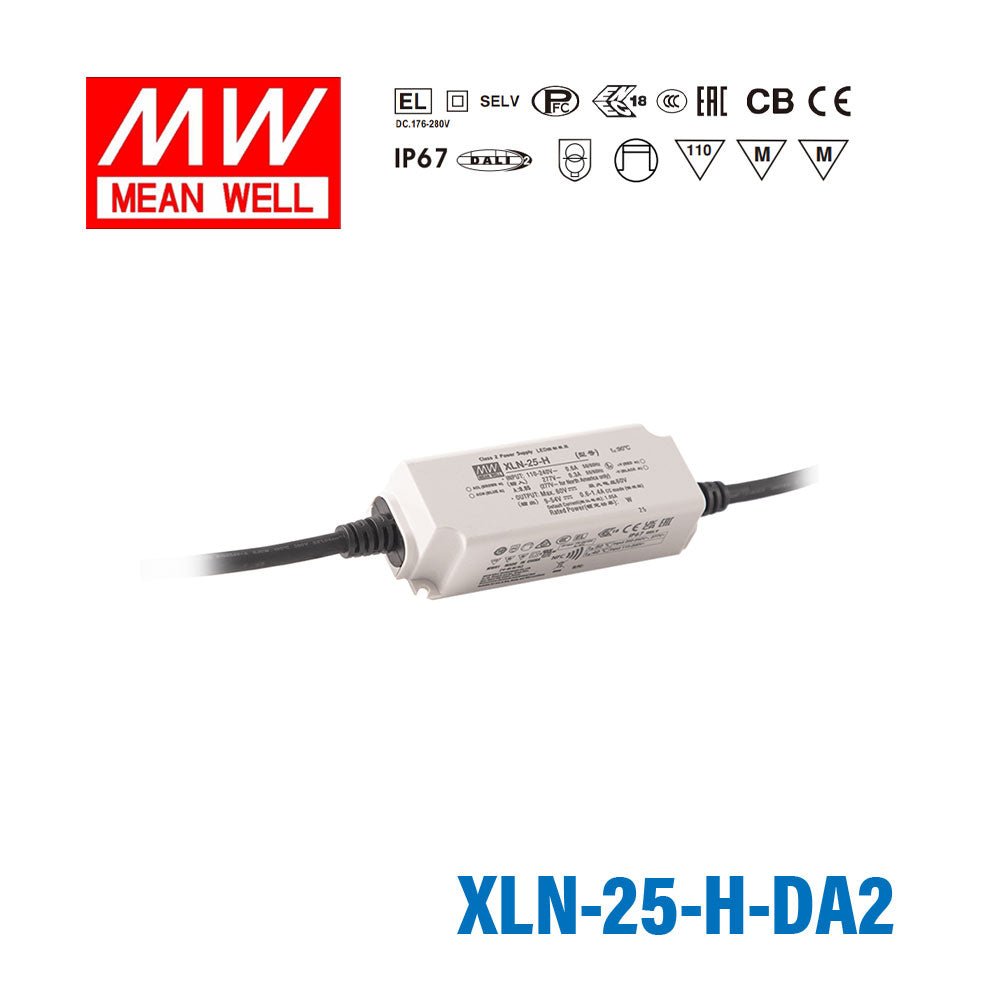

Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP...
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length4.49 in
-
Width1.26 in
-
Height1.73 in
::specification::
Frequently Asked Questions
What output does the Mean Well XLN-25-H-DA2 provide?
The XLN-25-H-DA2 is a 25W constant power LED driver with a rated current of 700mA. Its listed output voltage range is 9~54V, with an output voltage specification shown as 60V.
Does the XLN-25-H-DA2 support DALI dimming?
Yes. This model supports DALI-2 dimming and Push dimming, with DALI-2 DT6 minimum dimming down to 0.1%.
Can the output current be adjusted on the XLN-25-H-DA2?
Yes. The XLN-25-H-DA2 supports NFC current setting for selectable output stages on the H-type constant power version.
Is the XLN-25-H-DA2 suitable for wet or demanding environments?
The XLN-25-H-DA2 is fully encapsulated and rated IP67. It is specified for operating temperatures from -25 °C to 90 °C.
What applications is the XLN-25-H-DA2 designed for?
This driver is intended for LED lighting applications that need a 25W, 700mA constant power driver with dimming support. It also meets emergency lighting function application requirements listed for this model.
How is the XLN-25-H-DA2 different from a basic non-dimming LED driver?
Unlike a basic fixed-output driver, the XLN-25-H-DA2 includes DALI-2, Push dimming, and 3-in-1 dimming with dim-to-off support. It also includes NFC current setting, flicker-free operation, PFC design, IP67 encapsulation, and standby power consumption under 0.5W.
What warranty does the XLN-25-H-DA2 include?
The XLN-25-H-DA2 includes a 5-year warranty. This warranty period is part of the listed product specifications for this Mean Well LED driver.
