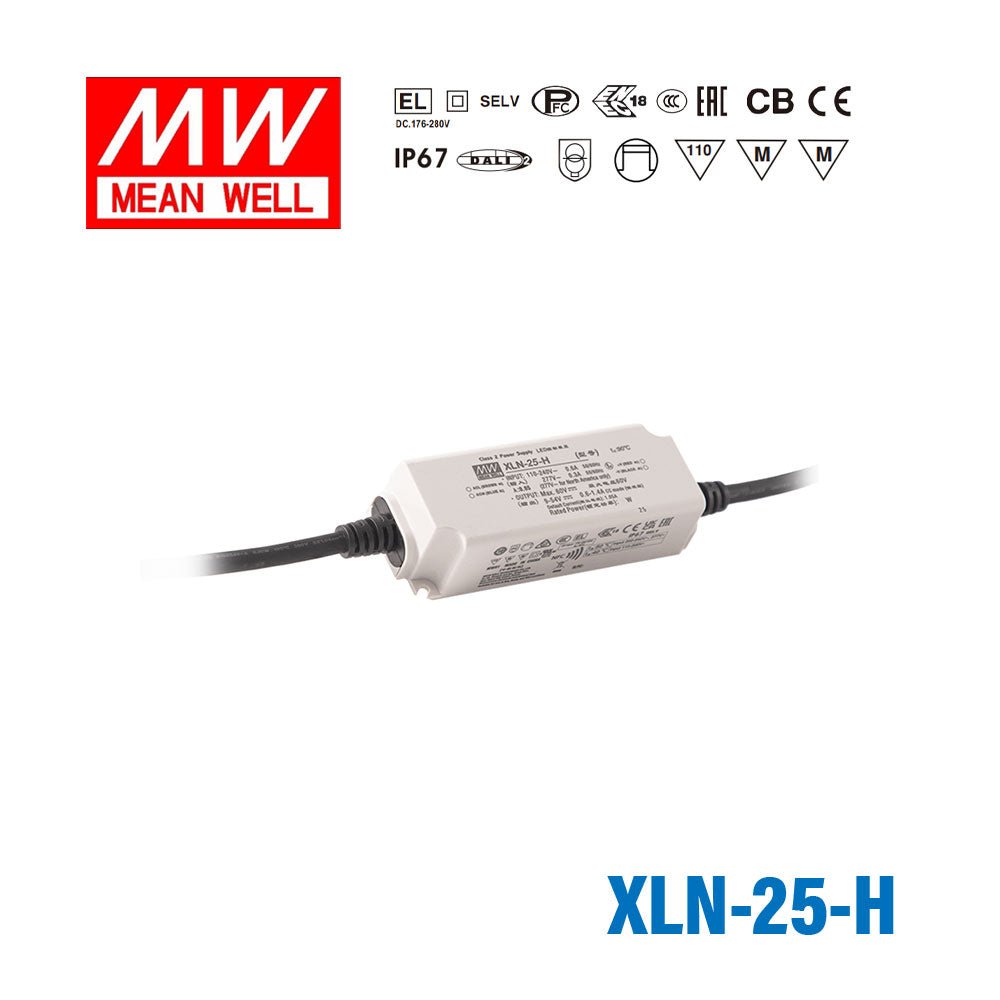

Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-25-H LED Driver 25W 700mA 9~54V Constant Power IP67, ...
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length4.49 in
-
Width1.26 in
-
Height1.73 in
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XLN-25-H?
The XLN-25-H is a 25W LED driver with a rated current of 700mA. The product data lists an output voltage of 60V, while the product name identifies a 9~54V constant power operating range.
What type of LED applications is the XLN-25-H intended for?
This model is intended for LED driver applications that require a 25W, 700mA constant power supply. It is categorized for AC/DC LED driver and power supply use across both US and NZ product groupings.
Can the XLN-25-H be used in wet or demanding environments?
The XLN-25-H is fully encapsulated and rated IP67, which supports use in waterproof LED driver applications. Its listed operating temperature range is -25°C to 90°C.
Does the XLN-25-H support NFC current setting?
Yes. The product name and feature data identify NFC current setting for the H-type model, with multiple output stages selectable by NFC setting.
How is the XLN-25-H different from a standard constant current LED driver?
The XLN-25-H is described as a constant power mode LED driver with multiple stages selectable by NFC setting. It is also listed with constant voltage mode output options of 12V and 24V.
Is the XLN-25-H suitable for systems that need flicker-free performance?
Yes. The product description states that the XLN-25-H is flicker-free and complies with IEEE1789/ErP.
What warranty is provided for the XLN-25-H?
The XLN-25-H has a listed warranty period of 5 years. This warranty term applies to this specific Mean Well LED driver model as provided in the product data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLN-25 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLN-25-H-DA2 LED Driver 25W 700mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting | 25W | 60V | 0.7A | IP67 | $39.49 | View |
| Mean Well XLN-25-H-B LED Driver 25W 700mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting | 25W | 60V | 0.7A | IP67 | $36.51 | View |
| Mean Well XLN-25-24 LED Driver 25.2W 24V IP67 | 25.2W | 24V | 1.05A | IP67 | $30.53 | View |
| Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 | 25.2W | 12V | 2.1A | IP67 | $30.53 | View |
