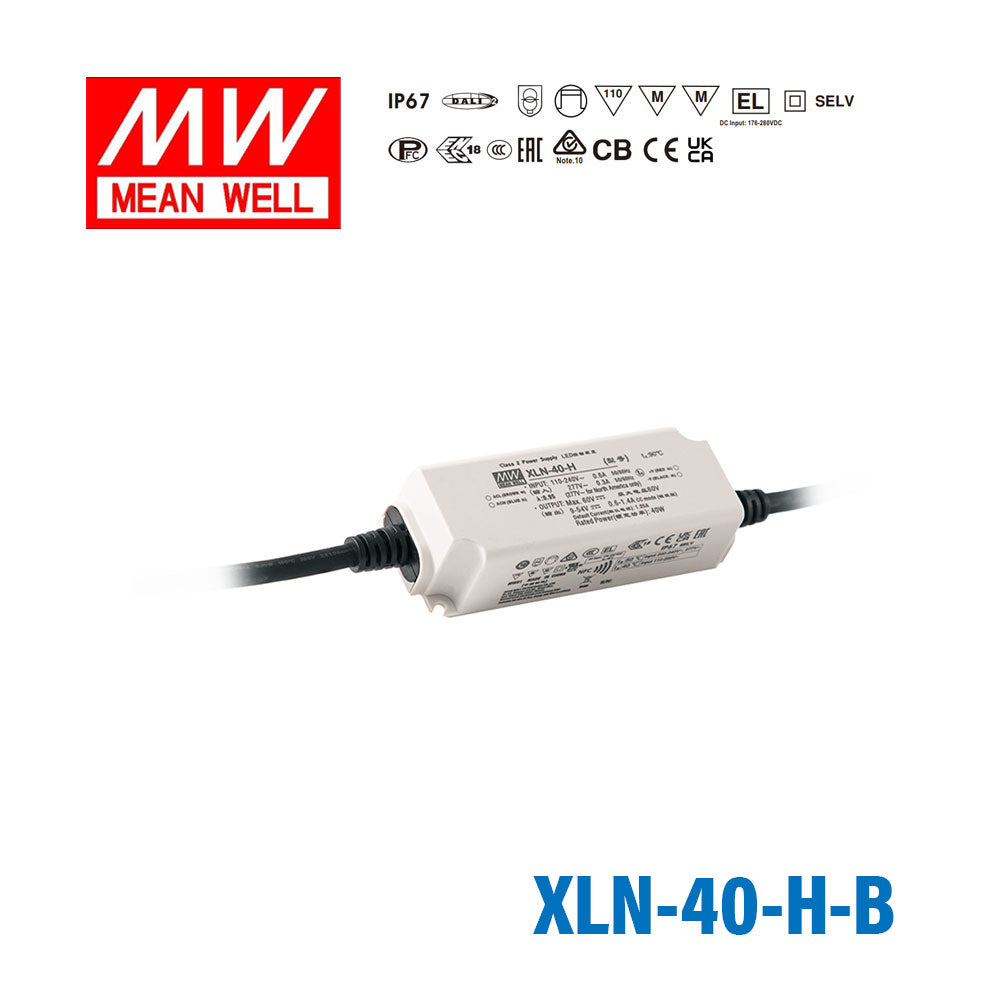

Mean Well XLN-40-H-B LED Driver 40W 1050mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting
current adjustment range 0.6~1.4Aclass II and PFCflicker-free
SKU:
XLN-40-H-B
$39.49 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLN-40-H-B LED Driver 40W 1050mA 9~54V Constant Power IP6...
$39.49 USD
Unit price /
Unavailable
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating40 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length4.49 in
-
Width1.26 in
-
Height1.73 in
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLN-40 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLN-40-H-DA2 LED Driver 40W 1050mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting | 40W | 60V | 1.05A | IP67 | $42.48 | View |
| Mean Well XLN-40-H LED Driver 40W 1050mA 9~54V Constant Power IP67, NFC Current Setting | 40W | 60V | 1.05A | IP67 | $33.52 | View |
| Mean Well XLN-40-24 LED Driver 40.8W 24V IP67 | 40.8W | 24V | 1.7A | IP67 | $33.52 | View |
| Mean Well XLN-40-12 LED Driver 40.8W 12V IP67 | 40.8W | 12V | 3.4A | IP67 | $33.52 | View |
