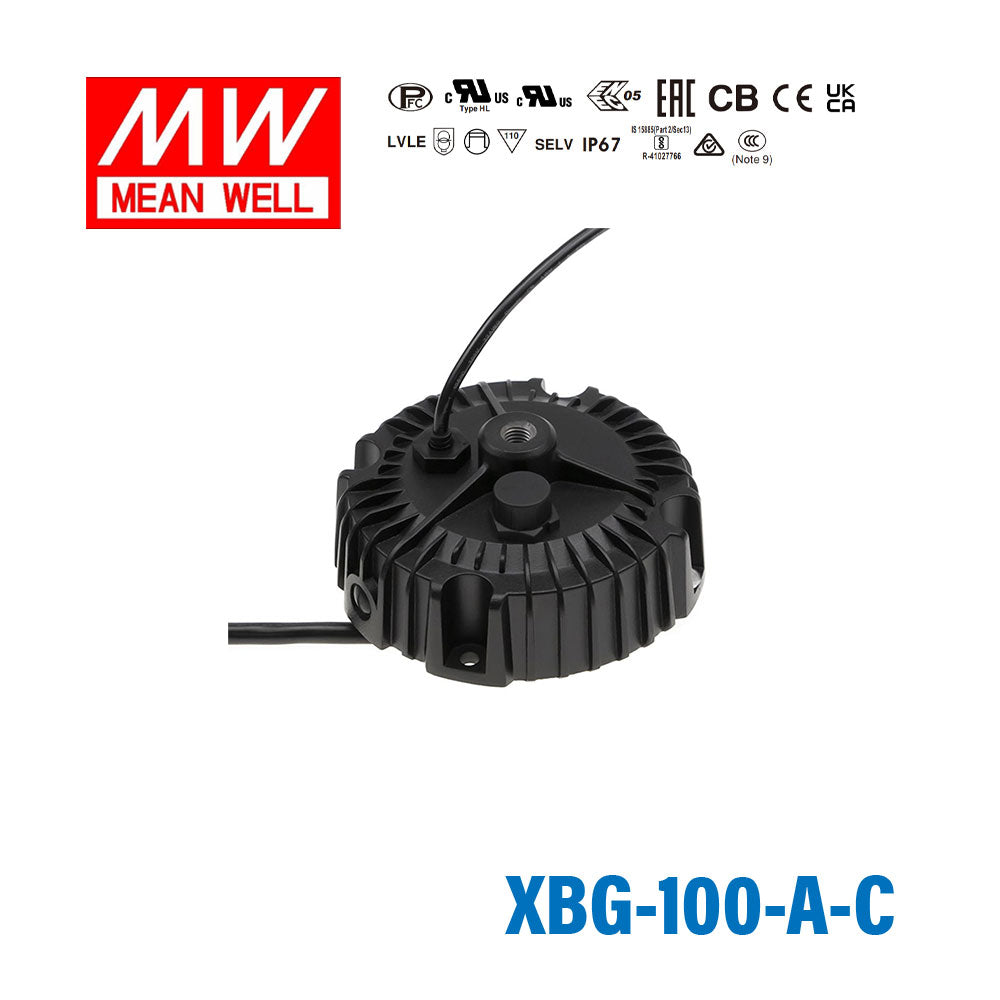

Mean Well XBG-100-A-C Power Supply 100W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-100-A-C Power Supply 100W - Adjustable
The XBG-100-A is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating100 Watt
-
Output Voltage60 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.2 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
What are the main output ratings of the Mean Well XBG-100-A-C?
The Mean Well XBG-100-A-C is a 100 W LED driver with a 60 V output rating and 2100 mA rated current. It is designed for constant current range operation, with full power output across the 70 to 100 percent constant current operating range.
What type of applications is the XBG-100-A-C typically used for?
This model is intended for LED driver and power supply applications where a 100 W constant current AC-DC supply is required. Its metal case, IP67 rating, and wide input range make it suitable for demanding lighting and electrical environments that match its electrical ratings.
Can the XBG-100-A-C be used in harsh environments?
The XBG-100-A-C has a metal housing with an IP67 rating. It is specified for an operating temperature range from -40 °C to 80 °C, making it suitable for environments that fall within those limits.
What input voltage range does the XBG-100-A-C support?
This power supply supports a wide AC input range of 90 to 305 VAC. The provided specifications also list a DC input range of 127 to 431 VDC.
Does the XBG-100-A-C support dimming?
Yes. The product data lists potentiometer dimming control, and the description notes multiple dimming functions including 3-in-1 control by 0-10 V, PWM, or resistor.
What makes the XBG-100-A-C different from a basic LED power supply?
Compared with a basic fixed-output supply, the XBG-100-A-C includes active PFC, surge protection rated at 6 kV/4 kV, dimming capability, and an IP67 metal housing. It also carries a typical lifetime rating of more than 50,000 hours and a 5-year warranty.
