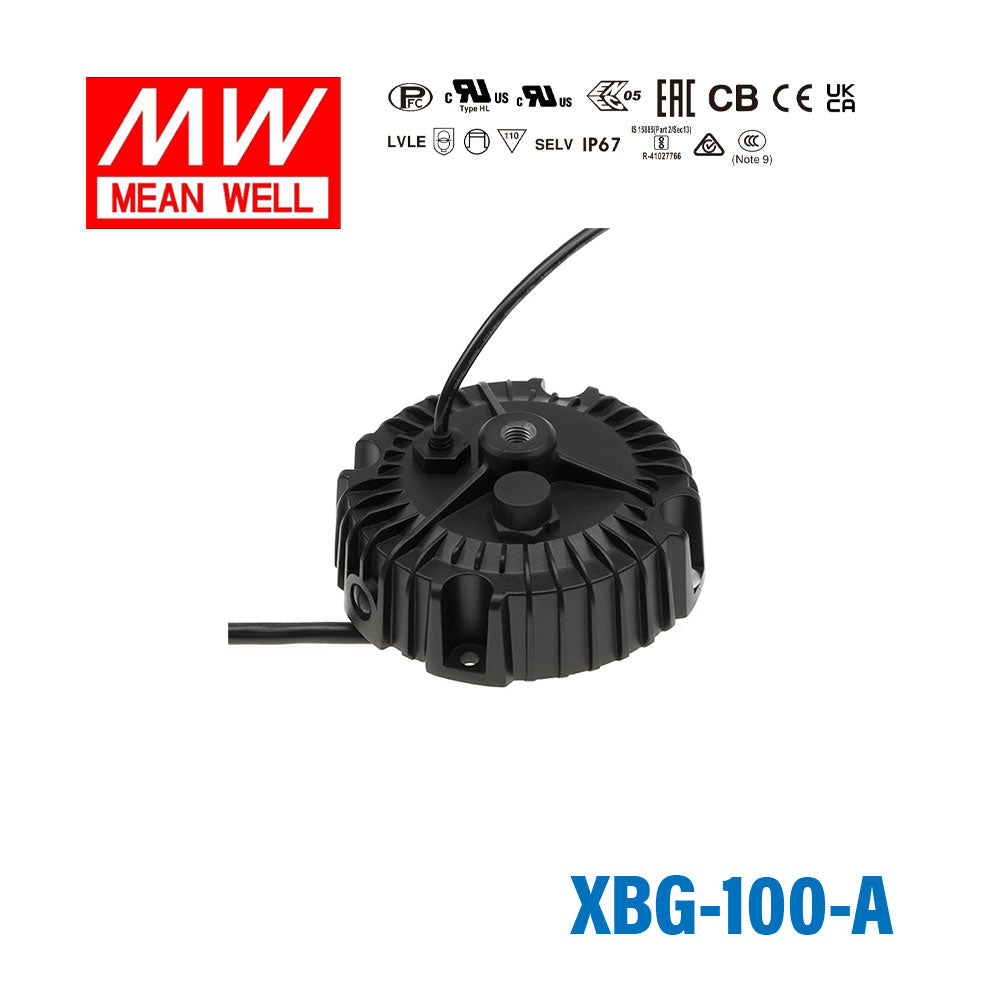

Mean Well XBG-100-A Power Supply 100W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-100-A Power Supply 100W - Adjustable
The XBG-100-A is a 100W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 60V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 60V
- ✓ Rated output current: 2100mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating100 Watt
-
Output Voltage60 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.2 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the XBG-100-A for LED downlights that need a constant current driver?
Yes, if the downlight array is designed for a constant current driver at 2100mA and the total LED forward voltage stays within the 27-56V constant current range. This is a 100W constant current model, so it is not the right choice for constant voltage LED products.
Is the XBG-100-A suitable for signage modules or small LED arrays?
It can be suitable for signage modules or small LED arrays when the load is built for constant current operation at 2100mA and falls within the 27-56V CC range. Because it is IP67 rated, it can also be used in locations where a waterproof driver is needed.
Can this driver power a compact outdoor LED lighting assembly?
Yes, for compact outdoor LED assemblies that require a constant current source of 2100mA and operate within 27-56V. Its IP67 waterproof rating and -40°C to +80°C operating temperature range make it suitable for demanding indoor or outdoor environments.
How do I know if my LEDs are compatible with the XBG-100-A?
Compatibility depends on whether your LED load is a constant current design that needs 2100mA and has a combined forward voltage within 27-56V. The number of LEDs depends on each LED's forward voltage, so this driver should be matched by current and total forward voltage rather than by a fixed LED count.
What conditions is the XBG-100-A designed to handle?
This model is rated IP67 and operates from -40°C to +80°C, so it is designed for wet or dusty environments as well as wide temperature swings. It also accepts 90-305VAC input, which supports use across a broad AC input range.
How does the XBG-100-A compare with other XBG series models?
Within the listed siblings, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are all 100W, 2100mA models with a 27-56V CC range. XBG-160-A, XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C are 160W, 3300mA models with a 34-56V CC range, while XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C are 240W, 4900mA models with a 30-60V CC range.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XBG-100 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XBG-100-AB-C Power Supply 100W - Adjustable | 100W | 60V | 2.1A | IP67 | $71.67 | View |
| Mean Well XBG-100-AB Power Supply 100W - Adjustable | 100W | 60V | 2.1A | IP67 | $71.58 | View |
| Mean Well XBG-100-A-C Power Supply 100W - Adjustable | 100W | 60V | 2.1A | IP67 | $65.97 | View |
