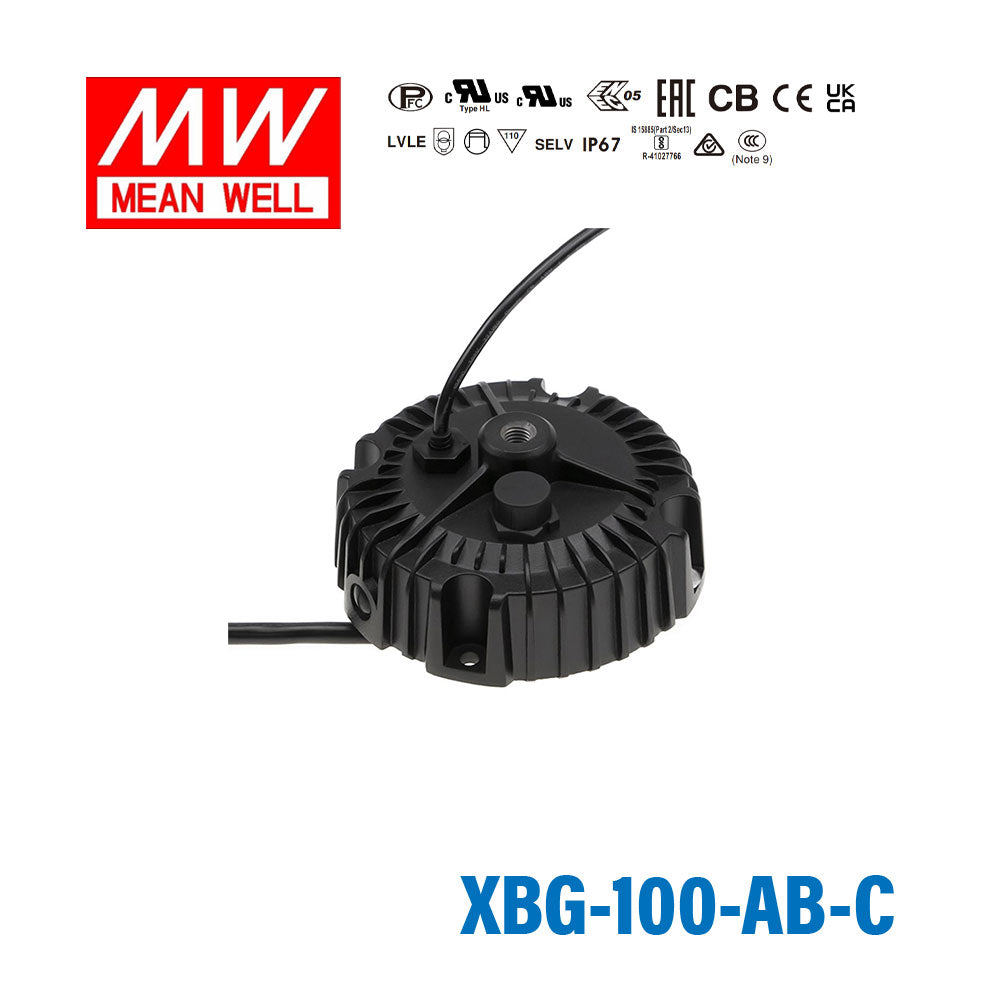

Mean Well XBG-100-AB-C Power Supply 100W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-100-AB-C Power Supply 100W - Adjustable
The XBG-100-AB is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating100 Watt
-
Output Voltage60 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.2 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
What are the main electrical specifications of the Mean Well XBG-100-AB-C?
The XBG-100-AB-C is a 100 W AC/DC LED driver with a 60 V output rating and 2100 mA rated current. It supports a wide input range of 90~305 VAC and includes active PFC.
What dimming controls does the XBG-100-AB-C support?
This model supports 3-in-1 dimming: 0-10 V, 10 V PWM, and potentiometer control. The product description also notes an isolated dimming circuit for current safety regulation requirements.
Can the XBG-100-AB-C be used in harsh environments?
The XBG-100-AB-C has a metal housing with an IP67 rating. Its specified operating temperature range is -40 °C to 80 °C, making it suitable for demanding LED driver environments within those limits.
What type of application is the XBG-100-AB-C intended for?
The XBG-100-AB-C is an AC/DC LED driver power supply intended for constant-current LED power applications. It is listed in LED driver and AC/DC power supply categories for both B2B and Power Supply Mall product groupings.
Does the XBG-100-AB-C provide full power across its adjustable current range?
Yes. The product description states that it provides full power output across a 70~100% constant current range operation.
What differentiates the XBG-100-AB-C from a basic LED driver?
This model combines 100 W output capacity, wide 90~305 VAC input, active PFC, IP67 metal housing, and 3-in-1 dimming support. It also includes 6 kV/4 kV surge protection, a typical lifetime above 50,000 hours, and a 5-year warranty.
What is the warranty period and weight of the XBG-100-AB-C?
The XBG-100-AB-C has a 5-year warranty period. Its listed weight is 0.8000 kg.
