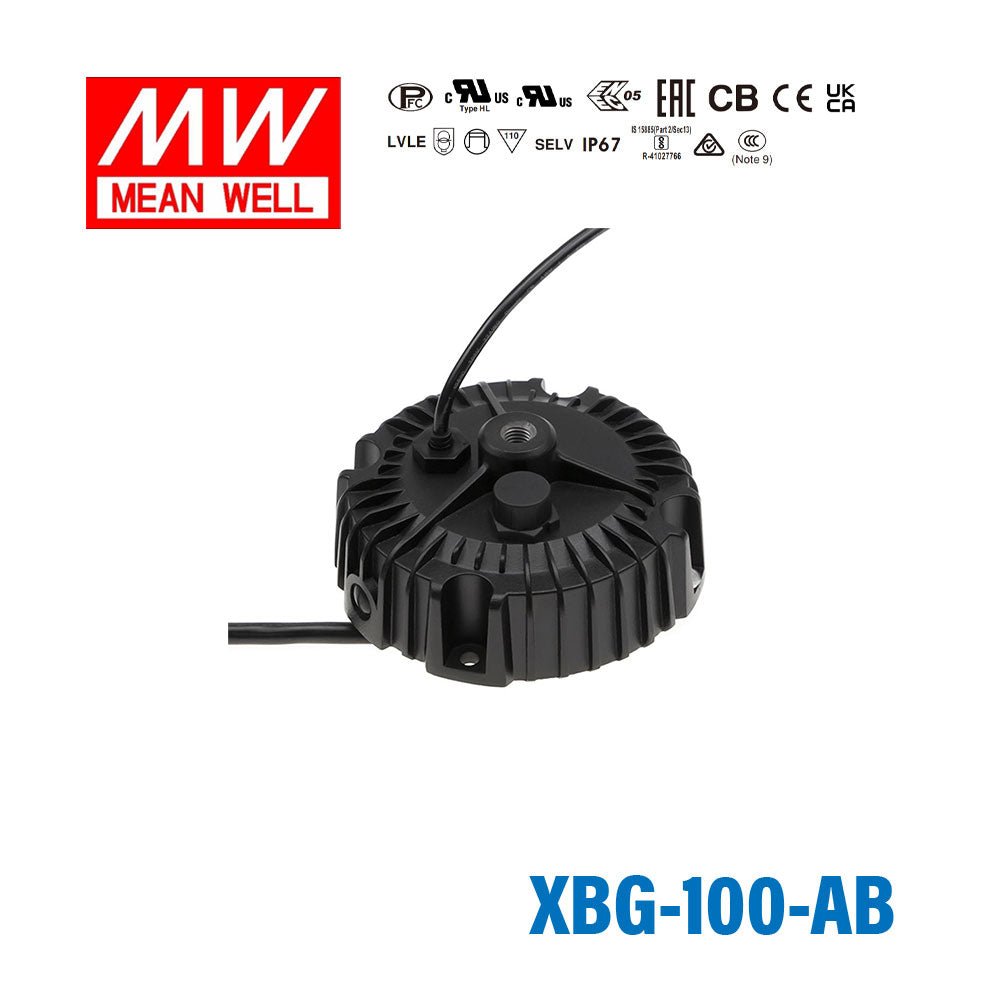

Mean Well XBG-100-AB Power Supply 100W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-100-AB Power Supply 100W - Adjustable
The XBG-100 is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating100 Watt
-
Output Voltage60 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.2 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XBG-100-AB?
The XBG-100-AB is a 100 W constant current LED power supply. This model is rated for 60 V output and 2100 mA rated current.
What dimming controls does the XBG-100-AB support?
The XBG-100-AB supports 3-in-1 dimming control. The listed dimming options are 0-10 V, 10 V PWM, and potentiometer control.
Is the XBG-100-AB suitable for wet or harsh environments?
This model has a metal housing with an IP67 rating. It is specified for operation from -40 °C to 80 °C, making it suitable for demanding indoor or outdoor LED driver applications where those ratings meet the project requirements.
What types of applications is the XBG-100-AB commonly used for?
The XBG-100-AB is intended for constant current LED driver applications that require a 100 W class power supply. Its wide input range, IP67 metal housing, and dimming support make it relevant for commercial, architectural, and industrial LED lighting projects.
What input voltage range does the XBG-100-AB support?
The XBG-100-AB supports a wide AC input range of 90 to 305 VAC. The product data also lists a DC input range of 127 to 431 VDC and notes active PFC function.
What makes the XBG-100-AB different from a basic non-dimmable LED power supply?
Unlike a basic fixed-output supply, the XBG-100-AB includes multiple dimming functions: 0-10 V, 10 V PWM, and potentiometer control. It also lists an isolated dimming circuit, IP67 metal housing, active PFC, and surge protection ratings of 6 kV/4 kV.
What warranty and lifetime are listed for the XBG-100-AB?
The XBG-100-AB is listed with a 5 year warranty. The product description also states a typical lifetime of more than 50,000 hours.
