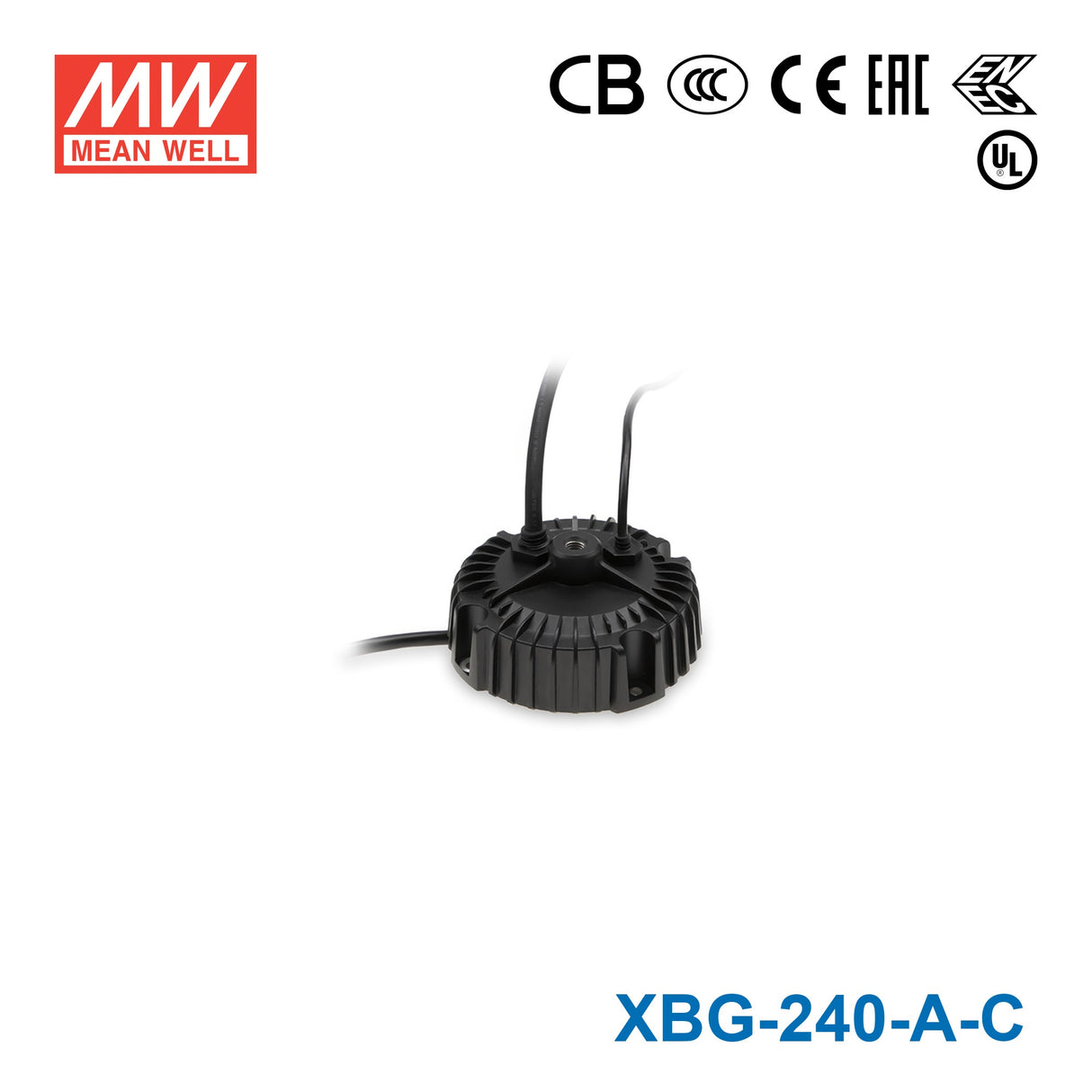

Mean Well XBG-240-A-C Power Supply 240W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-240-A-C Power Supply 240W - Adjustable
The XBG-240-A is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating240 Watt
-
Output Voltage65 Volt
-
Rated Current4.9 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.93 in
-
Width6.93 in
-
Height2.56 in
-
Weight4.23 lb
::specification::
Frequently Asked Questions
Can the XBG-240-A-C be used for high-power LED downlights?
Yes, when the downlight system is built for constant current operation at 4900mA and its total forward voltage is within the 30-60V CC range. This is a 240W constant current driver, so it should be matched to CC downlight loads rather than constant voltage LED products.
Would the XBG-240-A-C work for outdoor signage module loads?
It can work for outdoor signage if the module load requires 4900mA constant current and operates inside the 30-60V range. Its IP67 waterproof rating and -40°C to +85°C operating range support use in exposed environments where sealing and temperature tolerance matter.
Is this driver appropriate for a compact LED array with substantial power demand?
Yes, provided the LED array is a constant current load at 4900mA and the total forward voltage remains between 30V and 60V. The 240W output makes it better suited to heavier LED array loads than the 100W or 160W versions in the same series.
How can I confirm LED compatibility with the XBG-240-A-C?
Confirm that the LED assembly is rated for 4900mA constant current and that its combined forward voltage sits within the 30-60V CC output window. The actual number of LEDs will vary with each LED's forward voltage, so there is no single LED count that applies to every load.
Is the XBG-240-A-C suitable for wet or harsh locations?
Yes, the driver carries an IP67 waterproof rating and operates from -40°C to +85°C. Those ratings make it suitable for demanding conditions where moisture resistance and wide temperature tolerance are required.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XBG-240 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XBG-240-AB-C Power Supply 240W - Adjustable | 240W | 65V | 4.9A | IP67 | $118.78 | View |
| Mean Well XBG-240-AB Power Supply 240W - Adjustable | 240W | 65V | 4.9A | IP67 | $119.97 | View |
| Mean Well XBG-240-A Power Supply 240W - Adjustable | 240W | 65V | 4.9A | IP67 | $111.60 | View |
