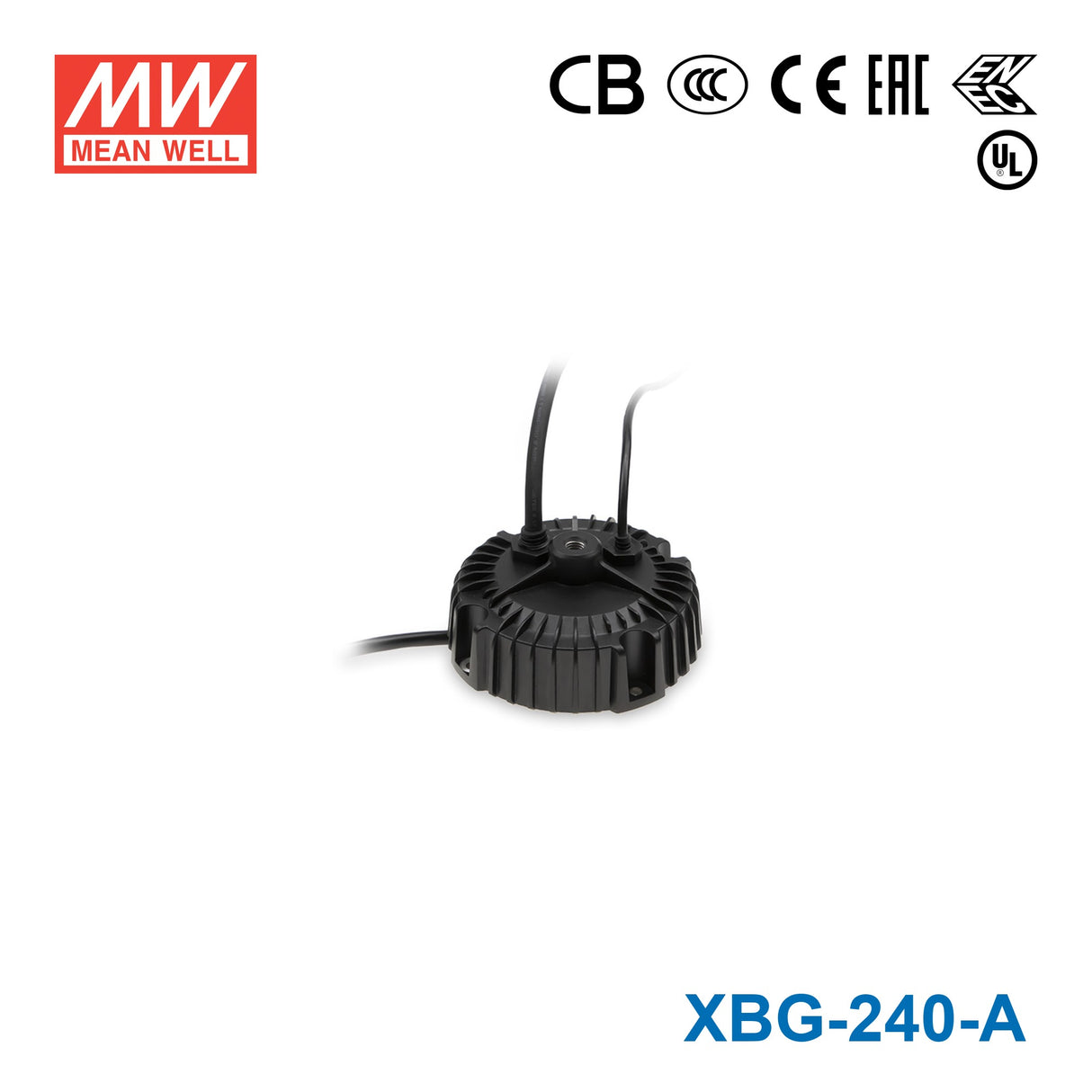

Mean Well XBG-240-A Power Supply 240W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-240-A Power Supply 240W - Adjustable
The XBG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating240 Watt
-
Output Voltage65 Volt
-
Rated Current4.9 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.93 in
-
Width6.93 in
-
Height2.56 in
-
Weight4.23 lb
::specification::
Frequently Asked Questions
Can I use the XBG-240-A for a larger LED downlight cluster?
Yes, if the downlight cluster is designed for constant current drive at 4900mA and the total LED forward voltage stays within the 30-60V CC range. With 240W output, this model is intended for higher-power loads than the 100W and 160W XBG versions.
Is the XBG-240-A suitable for powering high-output signage LED modules?
It can be suitable when the signage modules form a constant current load rated for 4900mA within the 30-60V operating window. Because it is IP67 waterproof and accepts 100-305VAC input, it fits signage projects that need both higher power and broad AC input compatibility.
Can this driver run a small LED array with higher current demand?
Yes, if the array is specified for 4900mA constant current input and its forward voltage is in the 30-60V range. The maximum output voltage is 65V, but constant current operation is defined by the 30-60V CC range, so the load still needs to fit inside that window.
How do I size an LED load for the XBG-240-A?
Match it to a constant current LED load that requires 4900mA and falls within the 30-60V constant current output range. The number of LEDs depends on each LED's forward voltage, so the correct sizing method is to total the LED forward voltages rather than assume a fixed quantity.
What are the main differences between the XBG-240-A and other XBG family options?
The XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are 100W models with a 27-56V CC range. The XBG-160-A, XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C are 160W models with a 34-56V CC range, while XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C are 240W models with a 30-60V CC range.
