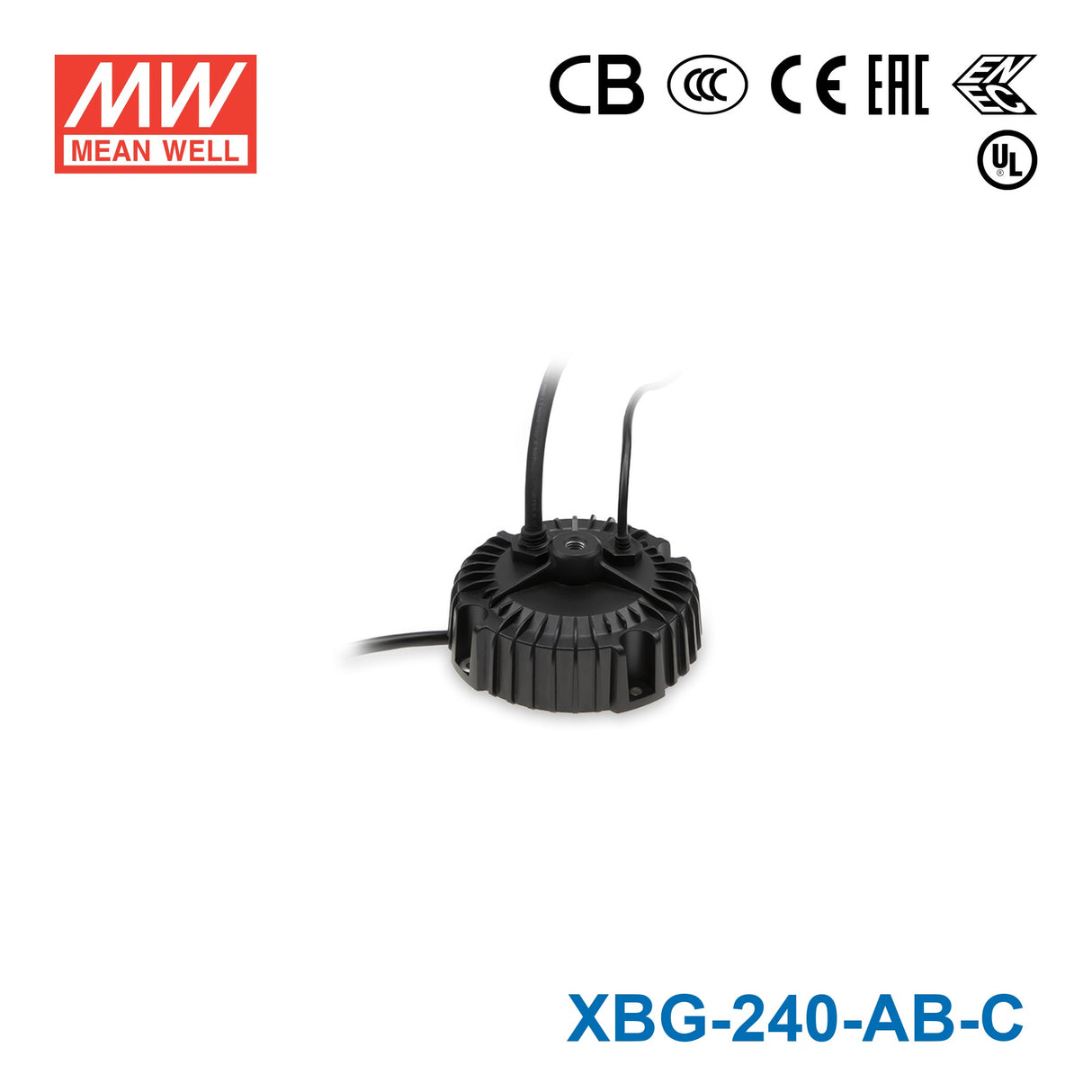

Mean Well XBG-240-AB-C Power Supply 240W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-240-AB-C Power Supply 240W - Adjustable
The XBG-240-AB is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating240 Watt
-
Output Voltage65 Volt
-
Rated Current4.9 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.93 in
-
Width6.93 in
-
Height2.56 in
-
Weight4.23 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well XBG-240-AB-C for LED downlights?
This LED driver can be used for LED downlights that require a constant current driver at 4900mA and operate within the 30-60V constant current range. It is not intended for fixtures that require constant voltage output. With 240W output power and IP67 protection, it is suited to downlight applications where those electrical and environmental requirements match.
Is the XBG-240-AB-C suitable for powering LED signage modules?
It can be suitable for LED signage modules if the modules are designed for constant current operation at 4900mA and fall within the 30-60V output range. Many signage products use constant voltage systems, so this model should only be used where a constant current LED driver is specified. Its IP67 waterproof rating also makes it appropriate for signage environments exposed to moisture and dust.
Can this 240W LED driver run a small LED array?
Yes, this model can be used with a small LED array if the array is built for constant current operation at 4900mA and its forward voltage stays within 30-60V. The available output power is 240W. It should not be paired with LED arrays that expect a constant voltage power supply.
How do I know if the XBG-240-AB-C is compatible with my LEDs?
Compatibility depends on whether your LEDs require a constant current driver rated at 4900mA and whether the total LED forward voltage falls within the 30-60V constant current range. The number of LEDs that can be supported depends on each LED forward voltage, not a fixed LED count. This model is for constant current systems, not constant voltage loads.
Can the XBG-240-AB-C be used outdoors or in harsh temperatures?
This model is rated IP67, so it is designed for waterproof and dust-resistant use in demanding environments. Its operating temperature range is -40°C to +85°C. Those ratings make it suitable for applications where moisture resistance and wide temperature tolerance are required.
What is the difference between the XBG-240 models in this series?
The XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C all share the same core electrical ratings: 240W power, 4900mA output current, and a 30-60V constant current range. The sibling 100W models are XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C, each rated 2100A with a 27-56V constant current range. The sibling 160W models are XBG-160-A, XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C, each rated 3300A with a 34-56V constant current range.
