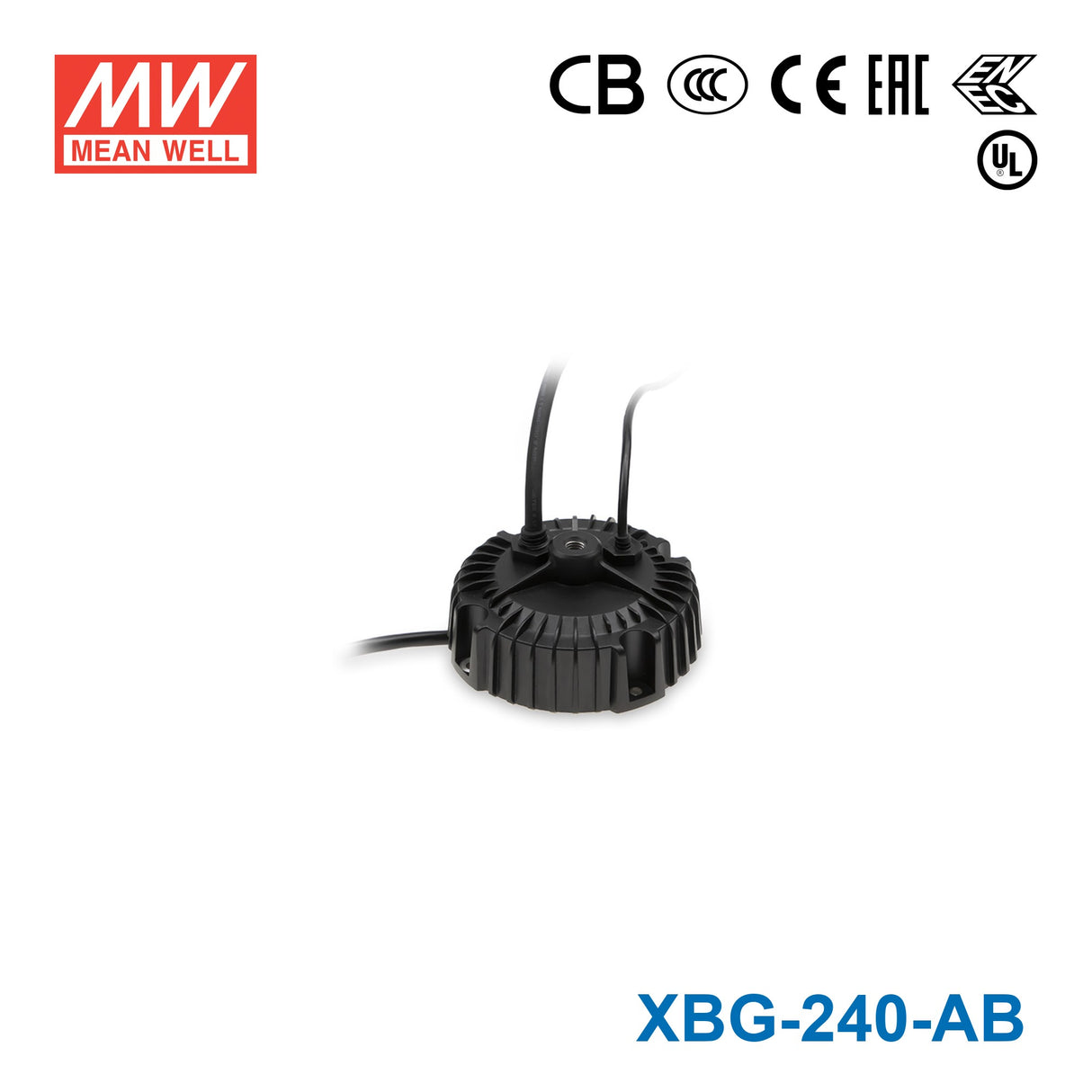

Mean Well XBG-240-AB Power Supply 240W - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XBG-240-AB Power Supply 240W - Adjustable
The XBG-240 is a 240W Mean Well AC-DC constant current LED driver (input: 100~305VAC, output: 65V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage (max): 65V
- ✓ Rated output current: 4900mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating240 Watt
-
Output Voltage65 Volt
-
Rated Current4.9 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.93 in
-
Width6.93 in
-
Height2.56 in
-
Weight4.23 lb
::specification::
Frequently Asked Questions
Can I use the XBG-240-AB with a high-output LED downlight array?
Yes, if the downlight array is designed for 4900mA constant current operation and its total forward voltage fits within the 30-60V constant current range. At 240W, this model is intended for larger LED loads than the 100W and 160W XBG units.
Is the XBG-240-AB a fit for signage LED modules that need more current?
It can be a fit when the signage modules are configured as a constant current load at 4900mA and the operating voltage remains inside the 30-60V range. Since it is a constant current driver, it is not meant for constant voltage LED modules that expect a fixed DC voltage source.
Can the XBG-240-AB power a small LED array in an exposed environment?
Yes, if the array is a 4900mA constant current load within the 30-60V CC window. The IP67 waterproof rating and operating range of -40°C to +85°C make it suitable for LED array applications where environmental sealing is important.
What LED load range is compatible with the XBG-240-AB?
The load should be a constant current LED system requiring 4900mA, with total forward voltage inside the 30-60V constant current operating range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by total string voltage rather than by a fixed LED quantity.
How does the XBG-240-AB differ from the other XBG siblings?
In this series, XBG-100-A, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are 100W models with a 27-56V CC range. XBG-160-A, XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C are 160W models with a 34-56V CC range, and XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C are 240W models with a 30-60V CC range.
