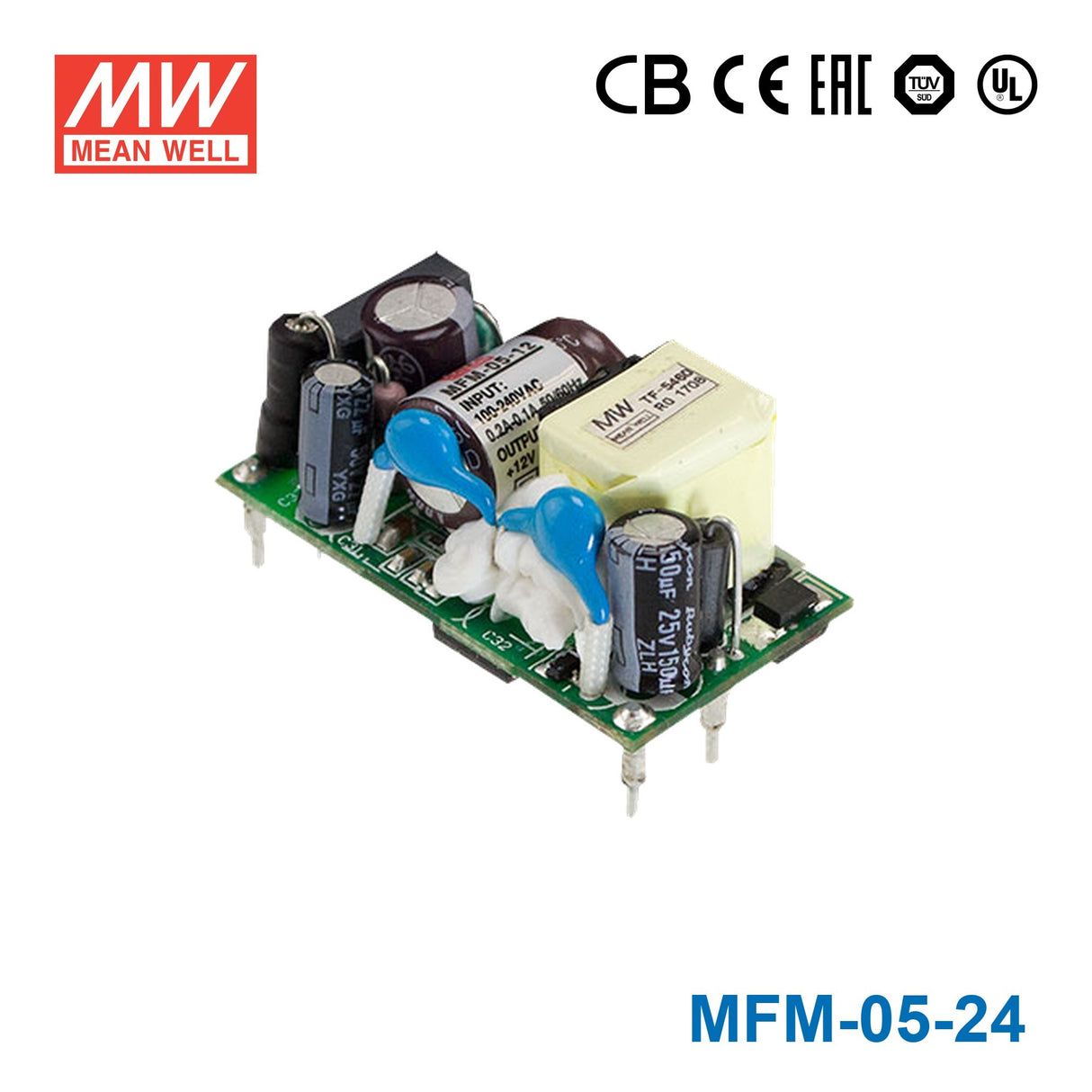

Mean Well MFM-05-24 Power Supply 5W 24V 230mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-05-24 Power Supply 5W 24V 230mA
No minimum load required
Typical lifetime > 52K hours
Touch current<80 μA/264VAC
Key Features
- ✓1.65"x0.88" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load requiredTypical lifetime > 52K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating5.5 Watt
-
Output Voltage24 Volt
-
Rated Current0.23 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.65 in
-
Width0.88 in
-
Height0.81 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the MFM-05-24 for a small 24V industrial control board?
Yes, this model is a constant voltage 24V supply rated for 5.5W and 0.23A. It fits low-power 24V control electronics that stay within that output current and power limit.
Is the MFM-05-24 suitable for embedded 24V monitoring or alarm circuits?
It can suit embedded 24V monitoring, alarm, or interface circuits that need a compact PCB-type AC-DC supply. The available output is 24V at 0.23A with 5.5W total power.
Can this 24V power supply be used in medical or low-leakage electronic equipment?
The listed features include medical safety approval and extremely low leakage current. It is a PCB-type 24V constant voltage supply with 5.5W output and no load power consumption below 0.1W.
What is the difference between the MFM-05-24 and other MFM series models?
The MFM family spans 3.3V to 48V outputs and 4.1W to 31.2W ratings. Siblings include MFM-05-3.3 at 4.1W 3.3V 1.25A, MFM-05-5 at 5W 5V 1A, MFM-05-12 at 5W 12V 0.42A, MFM-05-15 at 5W 15V 0.33A, MFM-10-3.3 at 8.3W 3.3V 2.5A, MFM-10-5 at 10W 5V 2A, MFM-10-12 at 10.2W 12V 0.85A, MFM-10-15 at 10W 15V 0.67A, MFM-10-24 at 10W 24V 0.42A, MFM-15-3.3 at 11.6W 3.3V 3.5A, MFM-15-5 at 15W 5V 3A, MFM-15-12 at 15W 12V 1.25A, MFM-15-15 at 15W 15V 1A, MFM-15-24 at 15.1W 24V 0.63A, MFM-20-3.3 at 14.9W 3.3V 4.5A, MFM-20-5 at 20W 5V 4A, MFM-20-12 at 21.6W 12V 1.8A, MFM-20-15 at 21W 15V 1.4A, MFM-20-24 at 21.6W 24V 0.9A, MFM-30-3.3 at 19.8W 3.3V 6A, MFM-30-5 at 30W 5V 6A, MFM-30-12 at 30W 12V 2.5A, MFM-30-15 at 30W 15V 2A, MFM-30-24 at 31.2W 24V 1.3A, and MFM-30-48 at 30.2W 48V 0.63A. The MFM-05-24 itself is the 5.5W, 24V, 0.23A option in that range.
Can the MFM-05-24 be used outdoors or in harsh environments?
The provided specs list an operating temperature range of -40°C to +85°C, but they do not list an IP rating. That means the temperature range is defined, while dust and water protection are not specified in the product data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-05 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-05-5 Power Supply 5W 5V 1A | 5W | 5V | 1A | Indoor | $8.68 | View |
| Mean Well MFM-05-3.3 Power Supply 5W 3.3V 1.25A | 4.1W | 3.3V | 1.25A | Indoor | $8.68 | View |
| Mean Well MFM-05-15 Power Supply 5W 15V 330mA | 5W | 15V | 0.33A | Indoor | $8.68 | View |
| Mean Well MFM-05-12 Power Supply 5W 12V 420mA | 5W | 12V | 0.42A | Indoor | $8.68 | View |
