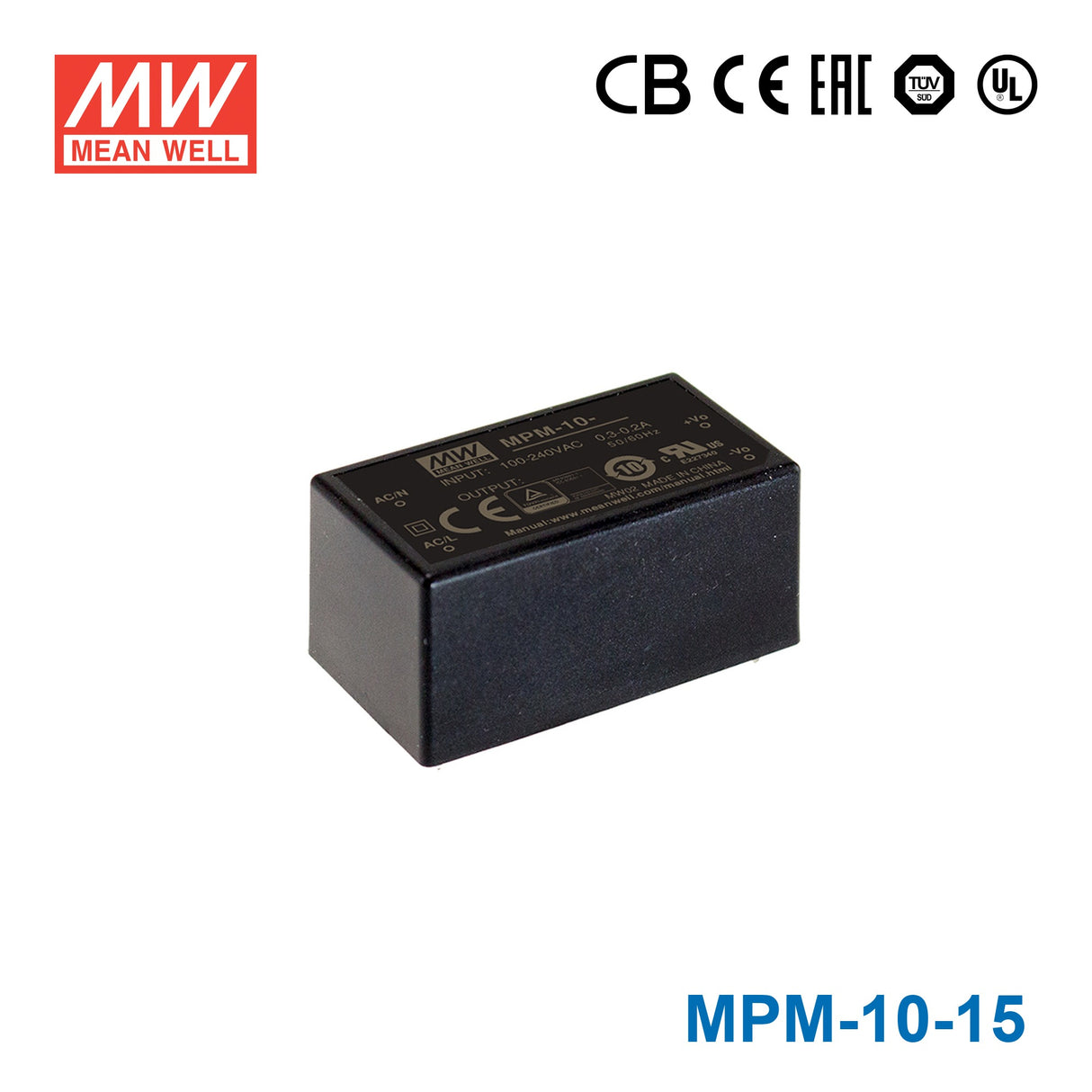

Mean Well MPM-10-15 Power Supply 10W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-10-15 Power Supply 10W 15V
Touch current<80 μA/264VAC
Key Features
- ✓1.8"x1" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.08 lb
::specification::
Frequently Asked Questions
Can I use the MPM-10-15 for a 15V industrial control or instrumentation circuit?
Yes, if the 15V load stays within 0.67A and 10W. As a constant-voltage 15V supply with 80-264VAC input, it fits low-power control, instrumentation, and embedded electronics that are designed for a 15V rail.
Is the MPM-10-15 suitable for powering 15V analog or signal-conditioning electronics?
It can be suitable for 15V analog, interface, or signal-conditioning hardware when total demand does not exceed 0.67A. The compact encapsulated package also helps in space-constrained control or measurement assemblies.
Can this model be used in medical or lab devices that need 15VDC?
The product is described as medical safety approved and includes extremely low leakage current. For low-power 15V equipment within the 10W and 0.67A limits, those features make it appropriate to evaluate for medical or laboratory designs, subject to end-equipment approval.
Is the MPM-10-15 appropriate for outdoor or temperature-variable environments?
The specified operating temperature range is -30°C to +85°C, so it is rated for broad temperature conditions. However, no IP rating is listed, so the product data does not identify it as sealed for direct outdoor exposure.
How does the MPM-10-15 compare with other 15V MPM supplies?
The 15V family steps up from MPM-05-15 at 5W and 0.33A to MPM-10-15 at 10W and 0.67A, MPM-15-15 at 15W and 1A, and MPM-20-15 at 21W and 1.4A. Higher options include MPM-30-15 and MPM-30-15ST at 30W and 2A, MPM-45-15 and MPM-45-15ST at 45W and 3A, MPM-65-15 and MPM-65-15ST at 65W and 4.33A, and MPM-90-15 or MPM-90-15ST at 85.05W and 5.67A.
