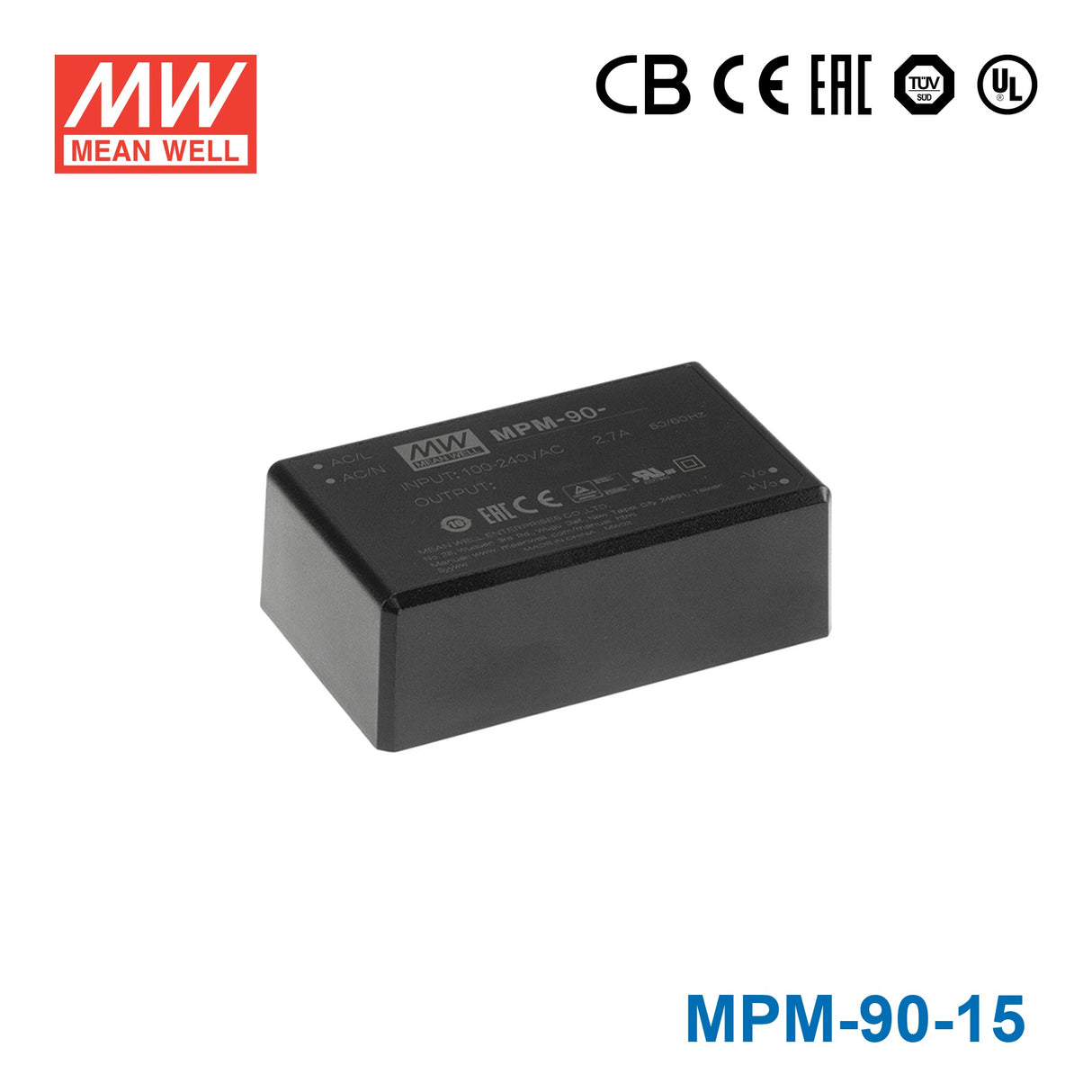

Mean Well MPM-90-15 Power Supply 90W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-90-15 Power Supply 90W 15V
3.43"x2.05", compact size
PCB, chassis or screw terminal mounting version
EMI class B without additional components
Isolation Class II
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05", compact sizePCB, chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+80°C
- ✓EMI class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperatureNo minimum load required
- ✓Operating altitude up to 4000 meters ( Note.7 )100W peak (10 sec.)
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating85.05 Watt
-
Output Voltage15 Volt
-
Rated Current5.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.43 lb
::specification::
Frequently Asked Questions
Can I use the MPM-90-15 for 15V industrial control equipment?
Yes, if the equipment needs a constant-voltage 15V source and the total load does not exceed 85.05W or 5.67A. That makes it relevant for 15V control electronics, monitoring hardware, and other industrial devices designed around 15VDC input.
Is the MPM-90-15 suitable for embedded 15V systems?
It can fit embedded systems that are designed for 15V constant voltage and stay within the 5.67A output current limit. The compact 87.0 × 52.0 × 29.5 mm footprint is also useful where board-level or enclosure space is limited.
Can this power supply be used for medical electronic equipment that requires 15V?
This model is medical safety approved, which makes it relevant for medical equipment categories that call for a 15V supply. The load still needs to match the electrical rating of 15V, 85.05W, and 5.67A.
Would the MPM-90-15 work for 15V test, measurement, or control devices?
It can suit 15V test or control devices when the required output is constant voltage and the total demand stays within 85.05W. Its wide 80-264VAC input range can also simplify sourcing for equipment used in different AC input environments.
Is the MPM-90-15 rated for outdoor or wet locations?
The product page lists an operating temperature range of -30°C to +80°C, but it does not list an IP rating. That means thermal operating limits are published, while water and dust protection are not specified here.
How does the MPM-90-15 compare with the other 90-series output options?
In the same 90-series, the non-ST models are 80.4W at 12V and 6.7A, 85.05W at 15V and 5.67A, 90W at 24V and 3.75A, and 90.2W at 48V and 1.88A. ST versions are also offered with the same electrical ratings, while the non-ST MPM-90-15 keeps the 87.0 × 52.0 × 29.5 mm body size.
