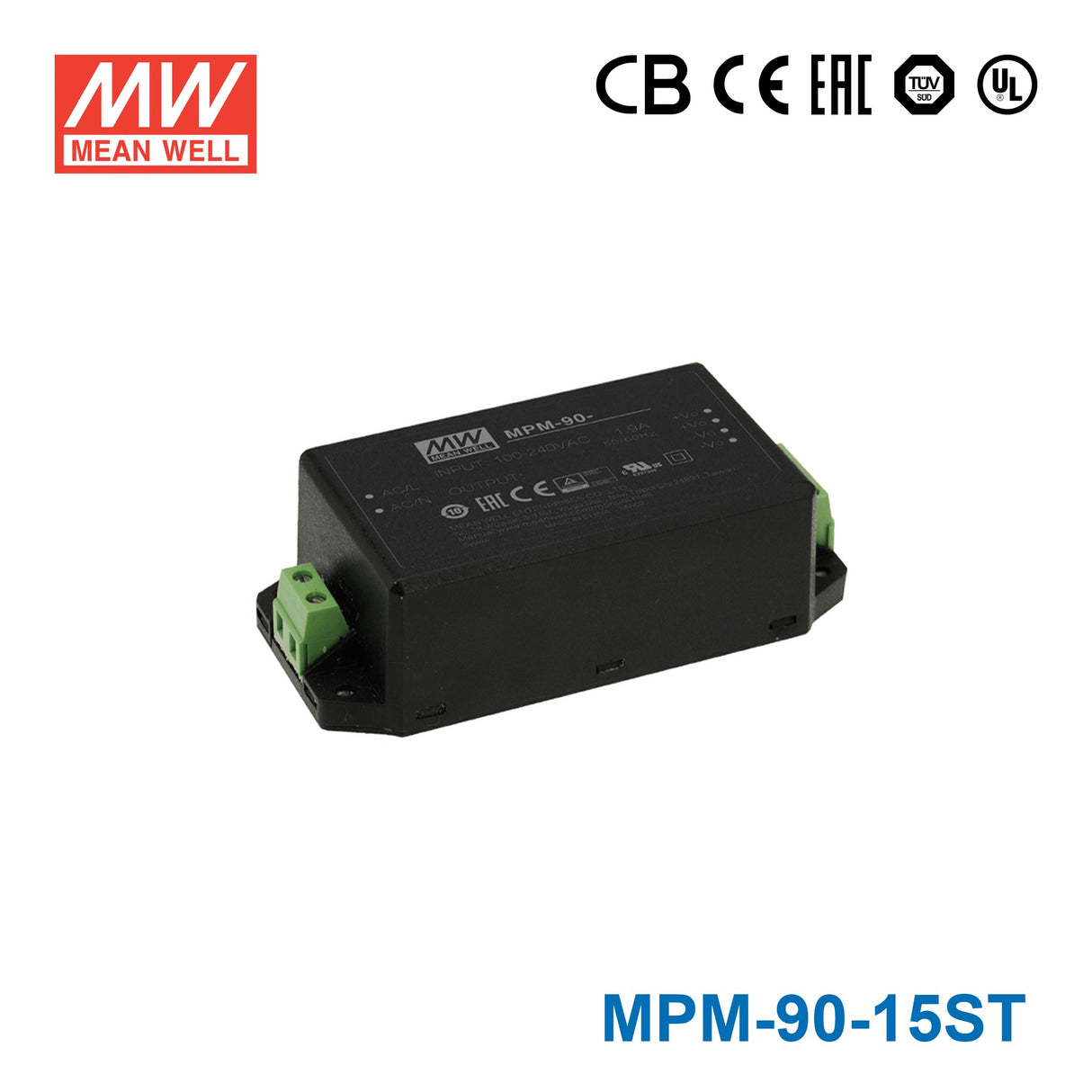

Mean Well MPM-90-15ST Power Supply 90W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-90-15ST Power Supply 90W 15V
3.43"x2.05", compact size
PCB, chassis or screw terminal mounting version
EMI class B without additional components
Isolation Class II
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05", compact sizePCB, chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+80°C
- ✓EMI class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperatureNo minimum load required
- ✓Operating altitude up to 4000 meters ( Note.7 )100W peak (10 sec.)
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating85.05 Watt
-
Output Voltage15 Volt
-
Rated Current5.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
::specification::
Frequently Asked Questions
Can I use the MPM-90-15ST in a 15V automation or control cabinet?
It can be used where the equipment requires a constant-voltage 15V supply and the total load remains within 85.05W and 5.67A. That makes it a fit for 15V industrial control and monitoring equipment designed around those limits.
Is the MPM-90-15ST a good match for 15V embedded hardware?
Yes, for embedded hardware that expects 15V constant voltage and does not exceed 5.67A output current. The encapsulated construction and 109.0 × 52.0 × 33.5 mm dimensions are relevant when comparing enclosure space and form factor.
Can this model power 15V medical devices or analyzers?
This version is medical safety approved, so it is aimed at applications where that approval matters. The connected load still has to fit the published 15V output, 85.05W power rating, and 5.67A current rating.
Would the MPM-90-15ST work for 15V lab, inspection, or instrumentation equipment?
It can work for 15V instrumentation or inspection equipment that needs constant voltage and stays within 85.05W total load. The 80-264VAC input range also supports use where AC input conditions vary.
Can the MPM-90-15ST be used in outdoor enclosures?
The stated operating temperature range is -30°C to +80°C, but the product specs do not include an IP rating. Because no ingress-protection rating is listed, the page does not define exposed outdoor dust or water performance.
How is the MPM-90-15ST different from the other MPM 90-series models?
The 90-series includes 12V models at 80.4W and 6.7A, 15V models at 85.05W and 5.67A, 24V models at 90W and 3.75A, and 48V models at 90.2W and 1.88A, with both ST and non-ST versions offered. The MPM-90-15ST keeps the 15V, 85.05W, 5.67A rating and uses the larger 109.0 × 52.0 × 33.5 mm package instead of the non-ST 87.0 × 52.0 × 29.5 mm size.
