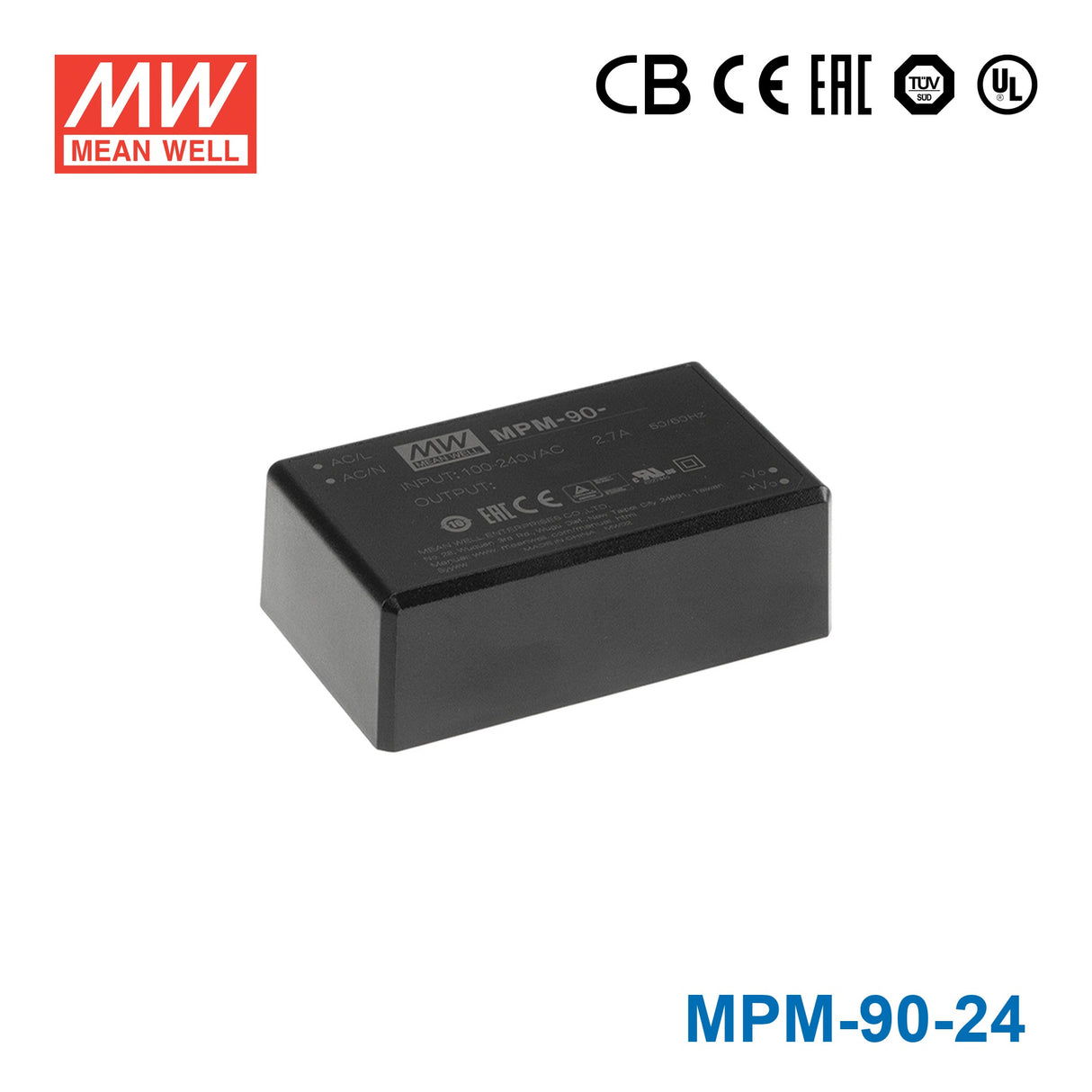

Mean Well MPM-90-24 Power Supply 90W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-90-24 Power Supply 90W 24V
3.43"x2.05", compact size
PCB, chassis or screw terminal mounting version
EMI class B without additional components
Isolation Class II
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05", compact sizePCB, chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+80°C
- ✓EMI class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperatureNo minimum load required
- ✓Operating altitude up to 4000 meters ( Note.7 )100W peak (10 sec.)
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length3.43 in
-
Width2.05 in
-
Height1.16 in
-
Weight0.43 lb
::specification::
Frequently Asked Questions
Can I use the MPM-90-24 for 24V PLCs, sensors, or industrial automation loads?
Yes, if the system needs a constant-voltage 24V supply and the combined load stays within 90W and 3.75A. That makes it relevant for 24V industrial control and automation devices designed for that DC bus level.
Is the MPM-90-24 suitable for 24V embedded or edge-control systems?
It can fit embedded or edge-control hardware that requires 24V constant voltage and does not exceed 3.75A. The compact 87.0 × 52.0 × 29.5 mm form factor can also matter in smaller equipment housings.
Can this 24V model be used in medical electronics?
This model is medical safety approved, so it is relevant where medical-oriented approvals are part of the equipment requirement. The output remains limited to 24V, 90W, and 3.75A, so the load needs to align with those values.
Would the MPM-90-24 work for 24V test, measurement, or control equipment?
It can work for 24V control or measurement equipment that expects a constant-voltage source and stays within 90W total power draw. The 80-264VAC input range can also help when the equipment may be used across different AC mains standards.
Is the MPM-90-24 intended for outdoor environments?
The published operating temperature range is -30°C to +80°C, but no IP rating appears in the listed specs. That means temperature capability is stated, while resistance to rain, washdown, or dust ingress is not defined on this page.
How does the MPM-90-24 compare with the other MPM 90-series outputs?
The non-ST 90-series lineup is MPM-90-12 at 80.4W, 12V, 6.7A; MPM-90-15 at 85.05W, 15V, 5.67A; MPM-90-24 at 90W, 24V, 3.75A; and MPM-90-48 at 90.2W, 48V, 1.88A. Each also has an ST counterpart with the same electrical rating, while the non-ST MPM-90-24 uses an 87.0 × 52.0 × 29.5 mm package.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-90 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-90-48ST Power Supply 90W 48V | 90.2W | 48V | 1.88A | Indoor | $33.71 | View |
| Mean Well MPM-90-48 Power Supply 90W 48V | 90.2W | 48V | 1.88A | Indoor | $31.45 | View |
| Mean Well MPM-90-24ST Power Supply 90W 24V | 90W | 24V | 3.75A | Indoor | $33.53 | View |
| Mean Well MPM-90-15ST Power Supply 90W 15V | 85.05W | 15V | 5.67A | Indoor | $33.71 | View |
| Mean Well MPM-90-15 Power Supply 90W 15V | 85.05W | 15V | 5.67A | Indoor | $31.45 | View |
| Mean Well MPM-90-12ST Power Supply 90W 12V | 80.4W | 12V | 6.7A | Indoor | $33.53 | View |
| Mean Well MPM-90-12 Power Supply 90W 12V | 80.4W | 12V | 6.7A | Indoor | $31.45 | View |
