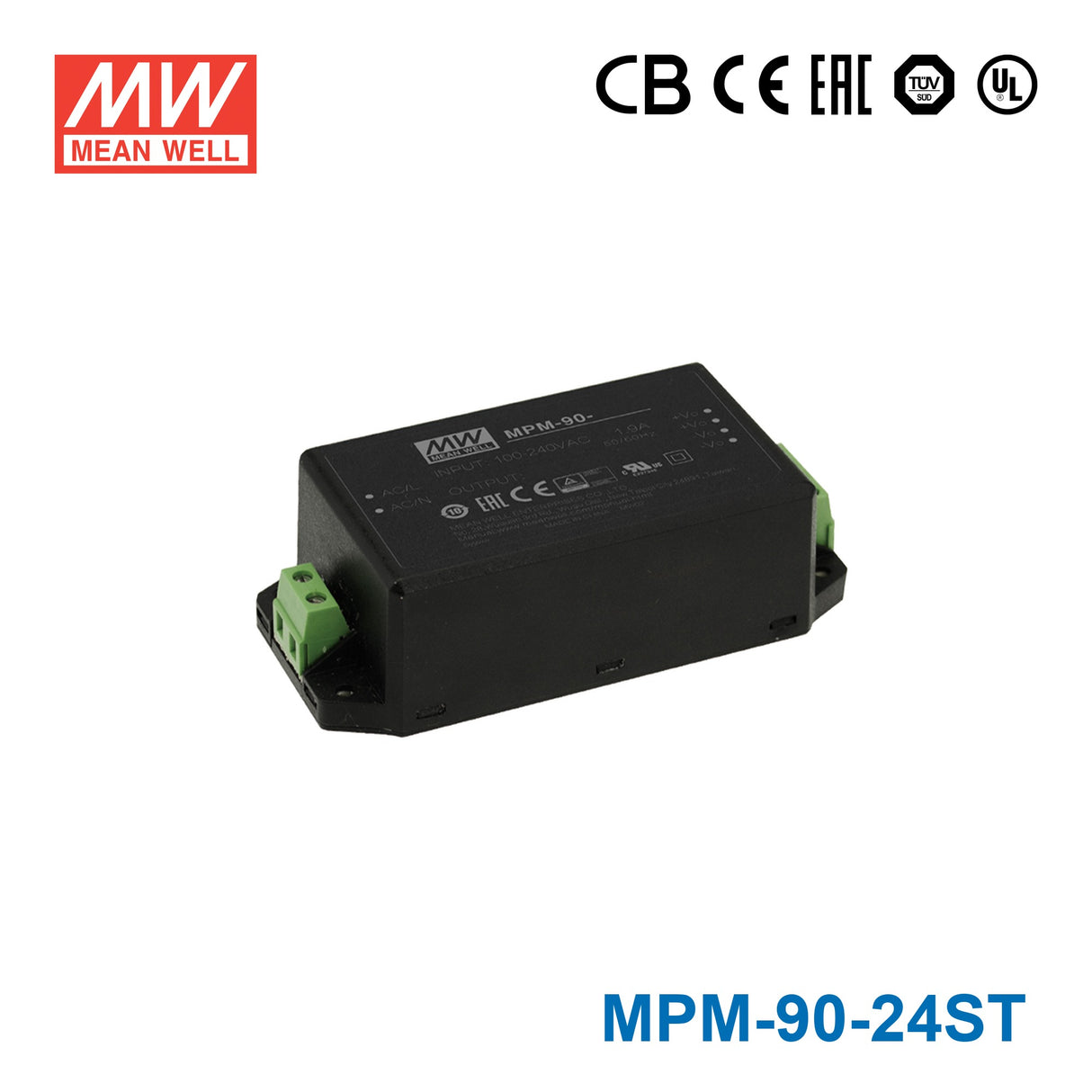

Mean Well MPM-90-24ST Power Supply 90W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-90-24ST Power Supply 90W 24V
3.43"x2.05", compact size
PCB, chassis or screw terminal mounting version
EMI class B without additional components
Isolation Class II
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05", compact sizePCB, chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+80°C
- ✓EMI class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperatureNo minimum load required
- ✓Operating altitude up to 4000 meters ( Note.7 )100W peak (10 sec.)
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
::specification::
Frequently Asked Questions
Can I use the MPM-90-24ST for a 24V industrial control or automation system?
This model is a constant voltage 24V supply rated for 90W and 3.75A, so it fits 24V equipment that stays within those limits. That makes it suitable for many industrial control, automation, and embedded systems designed for a 24V DC bus. Buyers should match the load to the 24V output and keep total draw at or below 3.75A.
Is the MPM-90-24ST a fit for embedded or compact medical equipment that needs low leakage current?
The unit is described as medical safety approved and has extremely low leakage current, which is relevant for medical and embedded equipment requirements. Its compact 109.0 x 52.0 x 33.5 mm size also helps where internal space is limited. It is still a 24V constant voltage supply with a 90W, 3.75A output, so the end equipment must be designed for that input.
Can this 24V power supply run a higher-load 24V HMI, panel PC, or control accessory?
It is intended for 24V DC loads up to 90W total, with up to 3.75A available output current. That gives it more headroom than lower-power 24V models in the same series for control accessories or embedded devices with higher demand. It should only be used where the equipment requires a regulated 24V constant voltage input.
Is the MPM-90-24ST suitable for outdoor or harsh-temperature locations?
The published operating temperature range is -30C to +80C, so the product is specified for a wide temperature span. However, no IP rating is listed in the provided specs, so the product data does not confirm outdoor, washdown, or weather-exposed use. The environmental information here supports temperature review, but not ingress protection claims.
How does the MPM-90-24ST compare with other 24V models in the MPM series?
Within the listed 24V siblings, the series includes MPM-05-24 at 5.5W and 0.23A, MPM-10-24 at 10W and 0.42A, MPM-15-24 at 15.1W and 0.63A, MPM-20-24 at 21.6W and 0.9A, MPM-30-24 and MPM-30-24ST at 31.2W and 1.3A, MPM-45-24 and MPM-45-24ST at 45.1W and 1.88A, MPM-65-24 and MPM-65-24ST at 65W and 2.71A, and MPM-90-24 at 90W and 3.75A. The MPM-90-24ST is the 24V ST version listed at 90W and 3.75A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-90 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-90-48ST Power Supply 90W 48V | 90.2W | 48V | 1.88A | Indoor | $33.71 | View |
| Mean Well MPM-90-48 Power Supply 90W 48V | 90.2W | 48V | 1.88A | Indoor | $31.45 | View |
| Mean Well MPM-90-24 Power Supply 90W 24V | 90W | 24V | 3.75A | Indoor | $31.45 | View |
| Mean Well MPM-90-15ST Power Supply 90W 15V | 85.05W | 15V | 5.67A | Indoor | $33.71 | View |
| Mean Well MPM-90-15 Power Supply 90W 15V | 85.05W | 15V | 5.67A | Indoor | $31.45 | View |
| Mean Well MPM-90-12ST Power Supply 90W 12V | 80.4W | 12V | 6.7A | Indoor | $33.53 | View |
| Mean Well MPM-90-12 Power Supply 90W 12V | 80.4W | 12V | 6.7A | Indoor | $31.45 | View |
