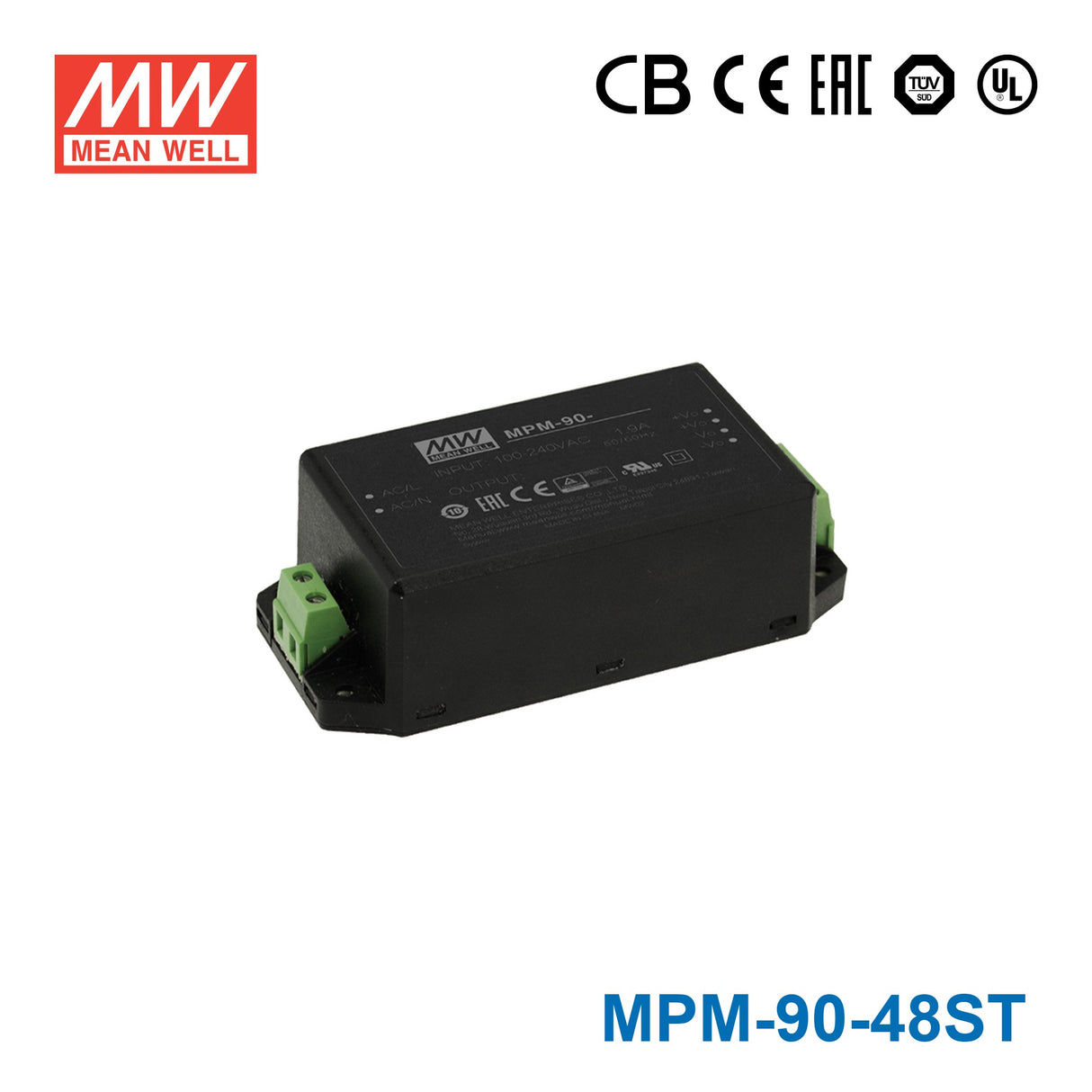

Mean Well MPM-90-48ST Power Supply 90W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-90-48ST Power Supply 90W 48V
3.43"x2.05", compact size
PCB, chassis or screw terminal mounting version
EMI class B without additional components
Isolation Class II
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05", compact sizePCB, chassis or screw terminal mounting version
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+80°C
- ✓EMI class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperatureNo minimum load required
- ✓Operating altitude up to 4000 meters ( Note.7 )100W peak (10 sec.)
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating90.2 Watt
-
Output Voltage48 Volt
-
Rated Current1.88 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
::specification::
Frequently Asked Questions
Can I use the MPM-90-48ST in a 48V industrial or embedded system?
Yes, if the equipment is designed for a 48V constant voltage input and stays within 90.2W and 1.88A. That makes it relevant for 48V industrial, embedded, and automation equipment that needs a fixed 48V DC rail. It is not interchangeable with 12V, 15V, or 24V versions unless the load is built for 48V.
Is the MPM-90-48ST appropriate for medical or low-leakage electronic equipment using 48V DC?
The product is listed as medical safety approved and features extremely low leakage current, which can matter in medical and sensitive electronic designs. Electrically, it provides 48V constant voltage output up to 90.2W and 1.88A. The equipment still needs to be specified for a 48V input rail.
Can this model support a larger 48V load than the smaller MPM 48V supplies?
It is the highest-power 48V option shown in the listed family, with 90.2W and 1.88A output. That gives it more available capacity than the 30.2W, 45.1W, and 65.3W 48V variants. For buyers comparing 48V options, this model is aimed at loads that need the full 90.2W class.
Is the MPM-90-48ST suitable for outdoor or temperature-extreme operation?
The operating temperature range is specified as -30C to +80C, so the product data supports use across a wide temperature range. It is also encapsulated, but no IP rating is listed in the provided specs. Without an IP rating, the published data does not confirm outdoor or direct weather exposure suitability.
What is the difference between the MPM-90-48ST and the other 48V siblings in the series?
The listed 48V models are MPM-30-48 and MPM-30-48ST at 30.2W and 0.63A, MPM-45-48 and MPM-45-48ST at 45.1W and 0.94A, MPM-65-48 and MPM-65-48ST at 65.3W and 1.36A, and MPM-90-48 at 90.2W and 1.88A. The MPM-90-48ST is the ST version at 90.2W and 1.88A, with published dimensions of 109.0 x 52.0 x 33.5 mm and weight of 0.219 kg.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-90 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-90-48 Power Supply 90W 48V | 90.2W | 48V | 1.88A | Indoor | $31.45 | View |
| Mean Well MPM-90-24ST Power Supply 90W 24V | 90W | 24V | 3.75A | Indoor | $33.53 | View |
| Mean Well MPM-90-24 Power Supply 90W 24V | 90W | 24V | 3.75A | Indoor | $31.45 | View |
| Mean Well MPM-90-15ST Power Supply 90W 15V | 85.05W | 15V | 5.67A | Indoor | $33.71 | View |
| Mean Well MPM-90-15 Power Supply 90W 15V | 85.05W | 15V | 5.67A | Indoor | $31.45 | View |
| Mean Well MPM-90-12ST Power Supply 90W 12V | 80.4W | 12V | 6.7A | Indoor | $33.53 | View |
| Mean Well MPM-90-12 Power Supply 90W 12V | 80.4W | 12V | 6.7A | Indoor | $31.45 | View |
