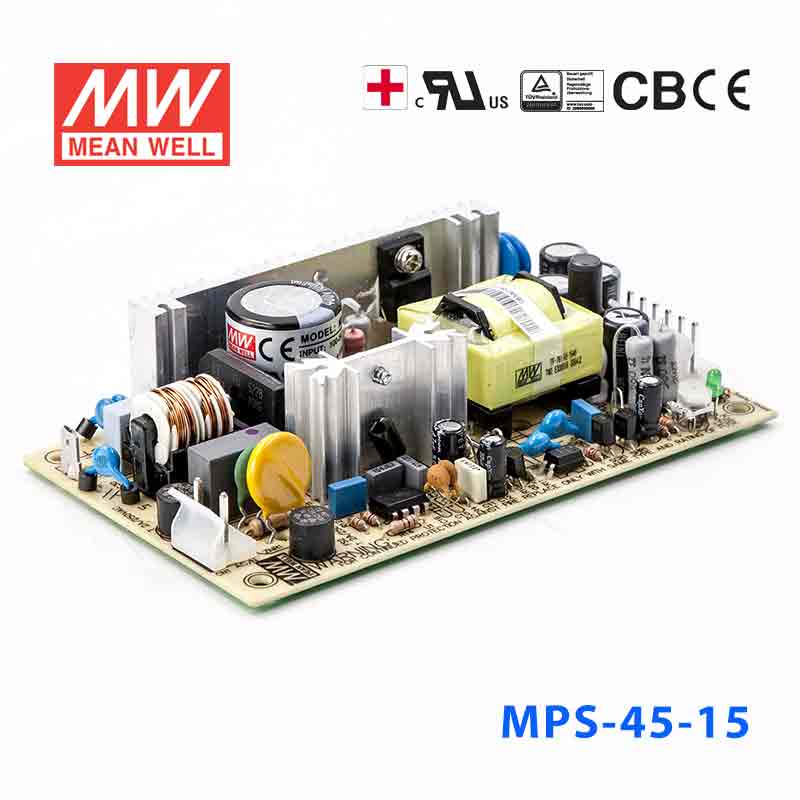

Mean Well MPS-45-15 Power Supply 45W 15V
MEAN WELL MPS-45 Series Power Supplies are 45W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the MPS-45-15 for a 15V industrial instrument or test device?
Yes, if the equipment needs a constant 15V output and the total draw stays within 45W and 3A. It is sized for smaller 15V loads rather than higher-current 15V systems.
Is this 15V power supply a fit for embedded control boards or small automation electronics?
It can be a fit when the electronics are designed for 15V constant voltage and require no more than 3A output current. The 90-264VAC input is also useful where the AC source may vary across sites.
Can the MPS-45-15 power compact 15V sensors, meters, or interface modules?
For compact 15V devices, this model supports loads up to 45W and 3A. It is best used where the product requirement is specifically 15V, not 12V, 13.5V, 24V, or 27V.
Is the MPS-45-15 suitable for outdoor or high-moisture conditions?
The product data shows an operating range of -10°C to +60°C, but no IP rating is listed. Based on the provided specs, weather or water exposure suitability is not defined here.
How does the MPS-45-15 compare with other MPS outputs and wattages?
This unit is 45W at 15V and 3A. Other listed MPS siblings are MPS-30-5 25W 5V 5A, MPS-30-12 30W 12V 2.5A, MPS-30-15 30W 15V 2A, MPS-30-24 28.8W 24V 1.2A, MPS-30-27 29.7W 27V 1.1A, MPS-30-48 28.8W 48V 0.6A, MPS-45-3.3 26.4W 3.3V 8A, MPS-45-5 40W 5V 8A, MPS-45-7.5 40.5W 7.5V 5.4A, MPS-45-12 44.4W 12V 3.7A, MPS-45-13.5 44.55W 13.5V 3.3A, MPS-45-24 45.6W 24V 1.9A, MPS-45-27 45.9W 27V 1.7A, MPS-45-48 48W 48V 1A, MPS-65-3.3 39.6W 3.3V 12A, MPS-65-5 60W 5V 12A, MPS-65-7.5 60W 7.5V 8A, MPS-65-12 62.4W 12V 5.2A, MPS-65-13.5 63.45W 13.5V 4.7A, MPS-65-15 63W 15V 4.2A, MPS-65-24 64.8W 24V 2.7A, MPS-65-27 64.8W 27V 2.4A, MPS-65-48 64.8W 48V 1.35A, MPS-120-3.3 79.2W 3.3V 24A, MPS-120-5 110W 5V 22A, MPS-120-12 120W 12V 10A, MPS-120-15 120W 15V 8A, MPS-120-24 120W 24V 5A, MPS-120-48 120W 48V 2.5A, MPS-200-3.3 132W 3.3V 40A, MPS-200-5 200W 5V 40A, MPS-200-12 200W 12V 16.7A, MPS-200-15 200W 15V 13.4A, MPS-200-24 200W 24V 8.4A, and MPS-200-48 200W 48V 4.2A.
