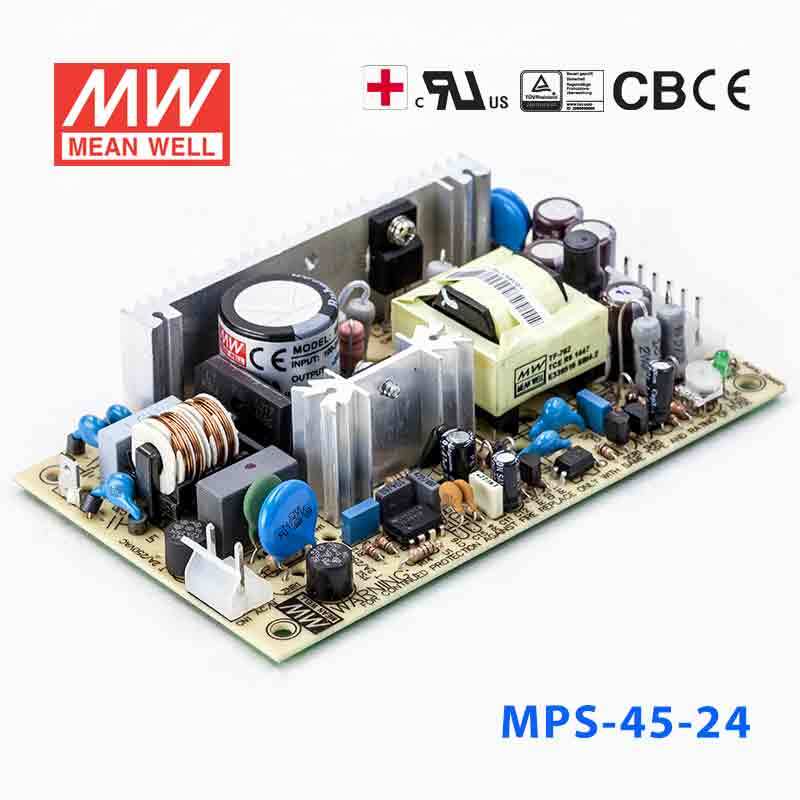

Mean Well MPS-45-24 Power Supply 45W 24V
MEAN WELL MPS-45 Series Power Supplies are 45W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating45.6 Watt
-
Output Voltage24 Volt
-
Rated Current1.9 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the MPS-45-24 for a small 24V PLC, sensor bank, or control circuit?
Yes, for 24V constant-voltage loads that stay within 45.6W and 1.9A, this model fits smaller automation and control applications. It is intended for lower-power 24V systems rather than equipment with a higher current demand.
Is the MPS-45-24 suitable for industrial networking or interface hardware that runs on 24V?
It can be suitable if the device requires 24V DC and draws no more than 1.9A. The wide 90-264VAC input is useful where the upstream AC source may vary across different facilities.
Can this 24V model power compact embedded or automation modules?
For compact 24V embedded or automation loads, the key limits are 45.6W total power and 1.9A output current. As long as the load matches the 24V constant-voltage output and stays within those ratings, it is within the published spec.
Is the MPS-45-24 OK for outdoor enclosures or unprotected plant areas?
The listed environmental spec is -10°C to +60°C operating temperature, but no IP rating is provided. That means the supplied data does not confirm suitability for rain, spray, or other exposed outdoor conditions.
How does the MPS-45-24 differ from the other MPS series options?
This model is 45.6W at 24V and 1.9A. The listed siblings are MPS-30-5 25W 5V 5A, MPS-30-12 30W 12V 2.5A, MPS-30-15 30W 15V 2A, MPS-30-24 28.8W 24V 1.2A, MPS-30-27 29.7W 27V 1.1A, MPS-30-48 28.8W 48V 0.6A, MPS-45-3.3 26.4W 3.3V 8A, MPS-45-5 40W 5V 8A, MPS-45-7.5 40.5W 7.5V 5.4A, MPS-45-12 44.4W 12V 3.7A, MPS-45-13.5 44.55W 13.5V 3.3A, MPS-45-15 45W 15V 3A, MPS-45-27 45.9W 27V 1.7A, MPS-45-48 48W 48V 1A, MPS-65-3.3 39.6W 3.3V 12A, MPS-65-5 60W 5V 12A, MPS-65-7.5 60W 7.5V 8A, MPS-65-12 62.4W 12V 5.2A, MPS-65-13.5 63.45W 13.5V 4.7A, MPS-65-15 63W 15V 4.2A, MPS-65-24 64.8W 24V 2.7A, MPS-65-27 64.8W 27V 2.4A, MPS-65-48 64.8W 48V 1.35A, MPS-120-3.3 79.2W 3.3V 24A, MPS-120-5 110W 5V 22A, MPS-120-12 120W 12V 10A, MPS-120-15 120W 15V 8A, MPS-120-24 120W 24V 5A, MPS-120-48 120W 48V 2.5A, MPS-200-3.3 132W 3.3V 40A, MPS-200-5 200W 5V 40A, MPS-200-12 200W 12V 16.7A, MPS-200-15 200W 15V 13.4A, MPS-200-24 200W 24V 8.4A, and MPS-200-48 200W 48V 4.2A.
