Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

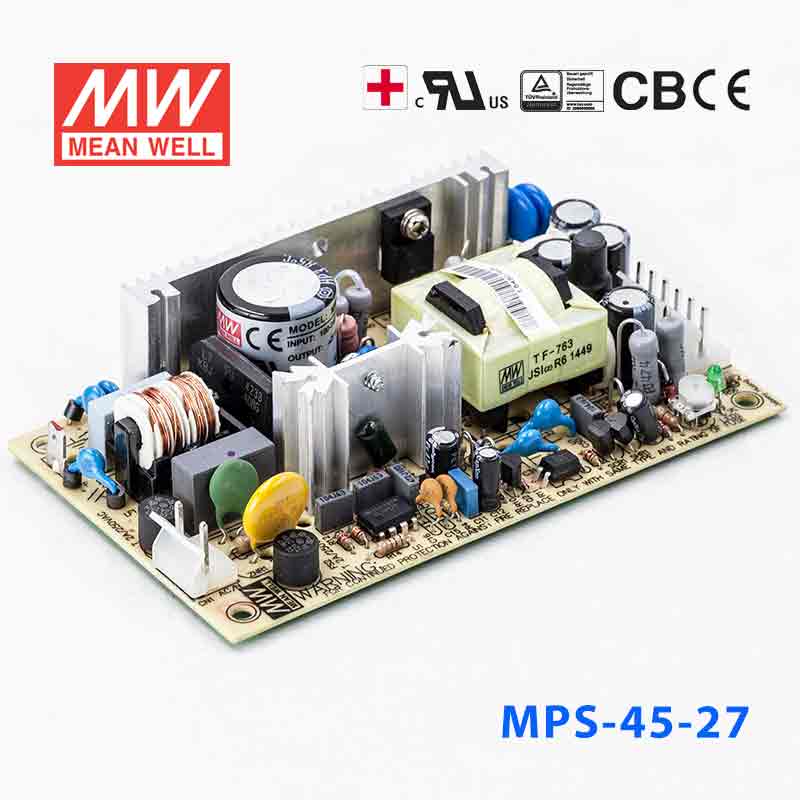

Mean Well MPS-45-27 Power Supply 45W 27V
MEAN WELL MPS-45 Series Power Supplies are 45W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating45.9 Watt
-
Output Voltage27 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the MPS-45-27 for a 27V industrial control or instrumentation load?
Yes, if the equipment requires a constant 27V supply and the total draw stays within 45.9W and 1.7A. It is intended for lower-power 27V loads, not higher-current 27V systems.
Is this 27V model suitable for compact automation electronics or monitoring devices?
It can be suitable where the device specification calls for 27V DC constant voltage and the required current does not exceed 1.7A. The 90-264VAC input range also supports use in sites with varied AC input conditions.
Can the MPS-45-27 power small embedded equipment that needs 27V DC?
For small 27V embedded loads, this model provides up to 45.9W with a 1.7A output limit. It should only be selected when the equipment is designed for 27V rather than nearby voltages such as 24V.
Is the MPS-45-27 rated for outdoor use or damp environments?
The provided specs include an operating temperature range of -10°C to +60°C, but no IP rating is shown. Since no ingress-protection rating is listed, the product data here does not establish outdoor or wet-area suitability.
How does the MPS-45-27 compare to the rest of the MPS family?
This version is 45.9W at 27V and 1.7A. Other listed MPS siblings are MPS-30-5 25W 5V 5A, MPS-30-12 30W 12V 2.5A, MPS-30-15 30W 15V 2A, MPS-30-24 28.8W 24V 1.2A, MPS-30-27 29.7W 27V 1.1A, MPS-30-48 28.8W 48V 0.6A, MPS-45-3.3 26.4W 3.3V 8A, MPS-45-5 40W 5V 8A, MPS-45-7.5 40.5W 7.5V 5.4A, MPS-45-12 44.4W 12V 3.7A, MPS-45-13.5 44.55W 13.5V 3.3A, MPS-45-15 45W 15V 3A, MPS-45-24 45.6W 24V 1.9A, MPS-45-48 48W 48V 1A, MPS-65-3.3 39.6W 3.3V 12A, MPS-65-5 60W 5V 12A, MPS-65-7.5 60W 7.5V 8A, MPS-65-12 62.4W 12V 5.2A, MPS-65-13.5 63.45W 13.5V 4.7A, MPS-65-15 63W 15V 4.2A, MPS-65-24 64.8W 24V 2.7A, MPS-65-27 64.8W 27V 2.4A, MPS-65-48 64.8W 48V 1.35A, MPS-120-3.3 79.2W 3.3V 24A, MPS-120-5 110W 5V 22A, MPS-120-12 120W 12V 10A, MPS-120-15 120W 15V 8A, MPS-120-24 120W 24V 5A, MPS-120-48 120W 48V 2.5A, MPS-200-3.3 132W 3.3V 40A, MPS-200-5 200W 5V 40A, MPS-200-12 200W 12V 16.7A, MPS-200-15 200W 15V 13.4A, MPS-200-24 200W 24V 8.4A, and MPS-200-48 200W 48V 4.2A.
