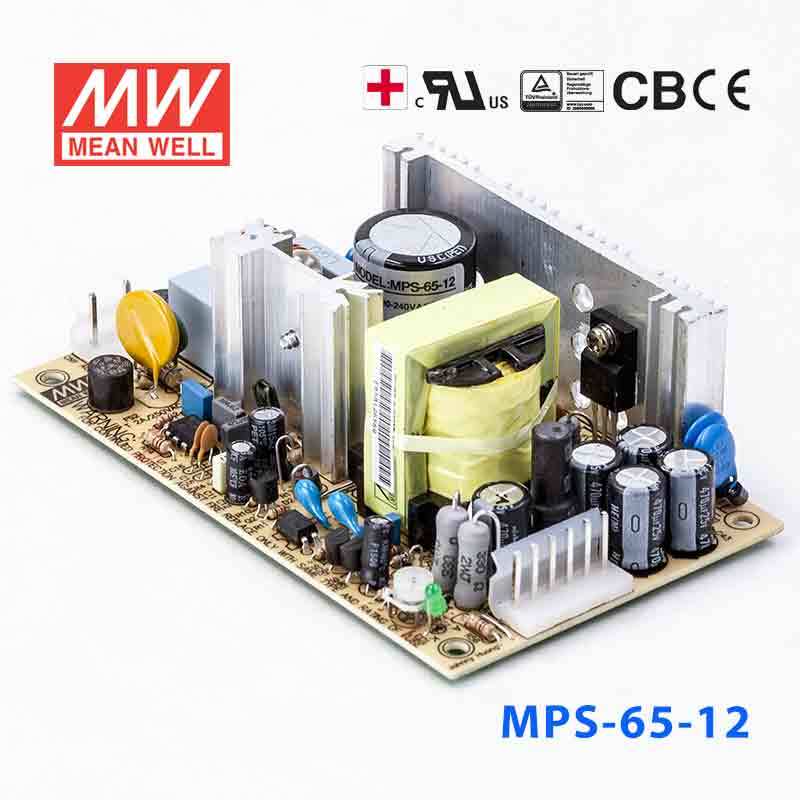

Mean Well MPS-65-12 Power Supply 65W 12V
MEAN WELL MPS-65 Series Power Supplies are 65W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating62.4 Watt
-
Output Voltage12 Volt
-
Rated Current5.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the MPS-65-12 for a 12V automation controller or HMI?
Yes, if the equipment requires a constant 12V DC supply and the load stays within 5.2A and 62.4W. That makes it suitable for many 12V control panels, HMIs, and industrial electronics built around a regulated 12V rail. The 90-264VAC input also supports deployment across different AC mains environments.
Is the MPS-65-12 appropriate for 12V embedded systems or compact industrial PCs?
It can be a fit for 12V embedded systems and compact industrial computing hardware when their input requirement is 12V constant voltage and the total demand does not exceed 62.4W. The 5.2A output capacity gives more headroom than lower-power 12V models in the same family. It should still be sized to the actual load rather than the nominal system type alone.
Can this model power several 12V DC loads inside one machine or cabinet?
It can support multiple 12V loads if their combined draw remains at or below 5.2A and 62.4W. This is often useful where several 12V control or interface devices share a common supply inside a machine or control cabinet. All connected loads should be designed for 12V constant-voltage operation.
Is the MPS-65-12 rated for outdoor use?
The product is specified for operation from -10°C to +60°C, but no IP rating is listed. That means temperature capability is defined, while protection against water and dust is not. Based on the published specs, it is better suited to indoor equipment areas or protected enclosures than directly exposed outdoor locations.
How does the MPS-65-12 compare with other 12V MPS power supplies?
The 12V models listed are MPS-30-12 at 30W and 2.5A, MPS-45-12 at 44.4W and 3.7A, MPS-65-12 at 62.4W and 5.2A, MPS-120-12 at 120W and 10A, and MPS-200-12 at 200W and 16.7A. All are constant-voltage 12V supplies, so the main difference is available current and total wattage. This model sits between the 45W and 120W 12V options.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-65 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-65-48 Power Supply 65W 48V | 64.8W | 48V | 1.35A | Indoor | $41.88 | View |
| Mean Well MPS-65-7.5Power Supply 65W 7.5V | 60W | 7.5V | 8A | Indoor | $41.88 | View |
| Mean Well MPS-65-5 Power Supply 65W 5V | 60W | 5V | 12A | Indoor | $40.28 | View |
| Mean Well MPS-65-3.3 Power Supply 65W 3.3V | 39.6W | 3.3V | 12A | Indoor | $41.88 | View |
| Mean Well MPS-65-27 Power Supply 65W 27V | 64.8W | 27V | 2.4A | Indoor | $41.88 | View |
| Mean Well MPS-65-24 Power Supply 65W 24V | 64.8W | 24V | 2.7A | Indoor | $41.88 | View |
| Mean Well MPS-65-15 Power Supply 65W 15V | 63W | 15V | 4.2A | Indoor | $41.88 | View |
| Mean Well MPS-65-13.5 Power Supply 65W 13.5V | 63.45W | 13.5V | 4.7A | Indoor | $41.88 | View |
