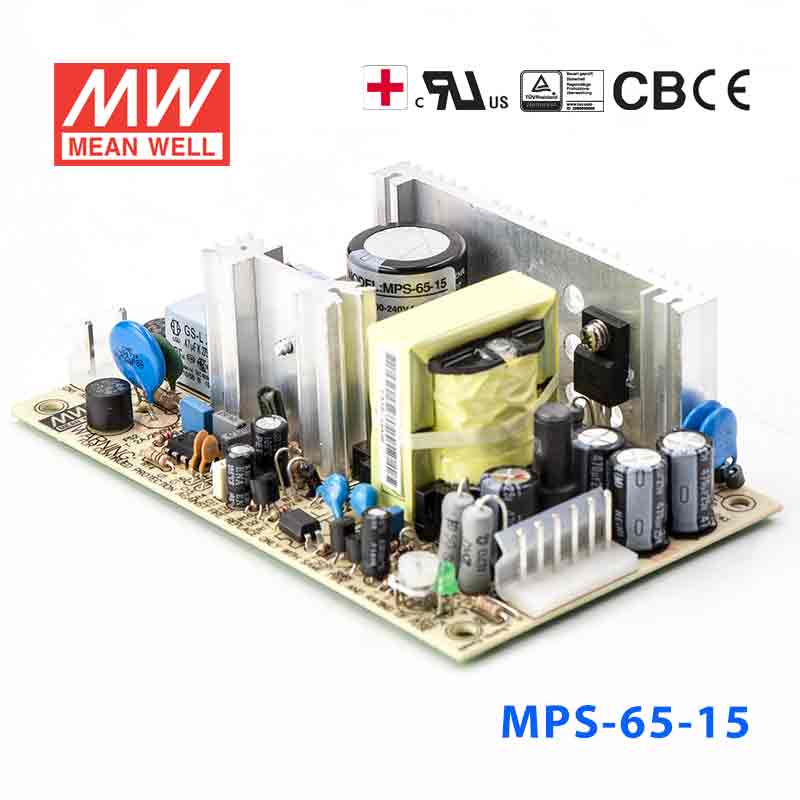

Mean Well MPS-65-15 Power Supply 65W 15V
MEAN WELL MPS-65 Series Power Supplies are 65W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating63 Watt
-
Output Voltage15 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the MPS-65-15 for 15V industrial sensors, controllers, or interface modules?
It is suitable where the equipment is specified for constant 15V DC and the total draw does not exceed 4.2A or 63W. That makes it relevant for small industrial control, sensing, and interface loads built around a 15V rail. The input range is 90-264VAC.
Is this a good fit for 15V embedded systems or electronics cabinets?
It can be used for embedded or cabinet-mounted electronics that require a steady 15V output and stay within 4.2A. The unit provides constant-voltage operation, which is the key requirement for many DC-powered electronic assemblies. Its size is 127.0 x 76.0 x 42.0 mm.
Can the MPS-65-15 power light automation or instrumentation loads that run on 15V DC?
Yes, if those automation or instrumentation loads are rated for 15V DC and the combined load is no more than 63W. The maximum output current is 4.2A, so it fits lighter-duty 15V systems rather than higher-current applications. It is not the right choice for 12V, 24V, or 48V equipment.
What are the differences between the MPS-65-15 and the other MPS-65 versions?
The MPS-65 family includes 3.3V 12A 39.6W, 5V 12A 60W, 7.5V 8A 60W, 12V 5.2A 62.4W, 13.5V 4.7A 63.45W, 15V 4.2A 63W, 24V 2.7A 64.8W, 27V 2.4A 64.8W, and 48V 1.35A 64.8W models. The 15V version sits in the middle of the range with 4.2A output current. Selection comes down to matching the exact DC voltage your equipment requires.
Can this 15V power supply be used in cold or warm indoor equipment environments?
The stated operating temperature range is -10°C to +60°C, so it is specified for that ambient range. No IP rating is listed in the provided data, so the specs do not describe it as weatherproof or sealed for outdoor exposure. It is best evaluated as a protected-location power supply unless the installation adds enclosure protection.
